Sylvania 51413 QHE3x32T8/UNV PSN-SC

(No reviews yet) Write a Review
$25.93
SKU:
SFB51413
UPC:
046135514135
Shipping:
$13.75 (Fixed Shipping Cost)

Product Overview

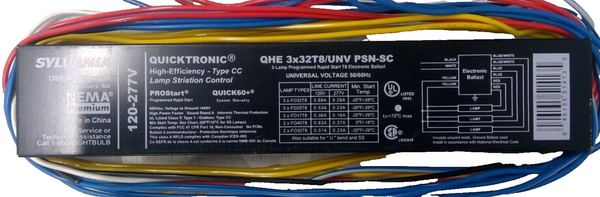

Sylvania Quicktronic High Effiency QHE 3x32T8/UNV PSN-SC Normal Ballast Factor 120/277V Fluorescent T8 Ballast

Operates the Following Fluorescent Lamps:

  • (2-3) FO17 24in Fluorescent Lamp
  • (2-3) FO25 36in Fluorescent Lamp
  • (2-3) FO32/25W 48in Energy Saving F32T8 25W Lamps
  • (2-3) FO32/28W 48in Energy Saving F32T8 28W Lamps
  • (3) FO30/SS (48in Energy Saving F32T8 30W Advantage Lamps)
  • (2-3) F32T8 (48in FO32/ECO 32W Standard Lamps)
  • (2-3) FBO16,FBO24, FBO29/SS, FBO30/SS, FBO31,FBO32 U-Bend Lamps
  • (2) FO40 60in Fluorescent T8 Lamp
  • Ballast Factor 0.88



Additional Information:

  • 70C Max Case Temperature
  • UL Listed Class P, Type 1 Outdoor
  • Ground ballast case
  • Lampholder must be shorted per diagram
  • Install in accordance with National Electric Codes
  • Complies with FCC 47 CFR Part 18, Non-Consumer
  • ANSI 62.41 Cat. A Transient Protection
  • Class A Sound Rating.
  • Input Frequency: 50/60Hz.
  • Complies with UL935 requirements for "Type CC" rating
  • Minimum starting temperature: 60 F / 16 C with SS lamps
  • Minimum starting temperature: -20 F / -29 C
  • CSA certified.
  • ANSI C82.11 where applicable.
  • NO PCB (Polychlorinated Biphenyl)
  • Remote mounting up to 20 feet Lamp Striation Control (LSC) may minimize
  • Or eliminate lamp striations which can occur in T8 energy savings lamps.
  • Small Can Enclosure Design (Dim:9.47”L x 1.69”W x 1.18”H)
  • Minimum starting temperature: -20 F / -29 C
  • Complies with FCC 47 CFR Part 18, Non-Consumer
  • Normal Ballast Factor < 10% THD
  • Dual Voltage 120-277V 50/60Hz
  • Circuit Type Parallel
  • Meet NEMA Premium Electronic M Ballast Program Requirements and qualify for utility incentives
  • Deliver 30-60% energy savings when D compared to F34T12 magnetically ballasted systems
  • Offer up to 6% (2-5 Watt) energy O savings over standard electronic ballasts
  • Achieve over A 100 (LPW) with OCTRON® 800 XP® SUPERSAVER® lamps
  • Available in: A – Instant Start and PROStart® (Programmed Rapid Start)
  • Bi-level QUICKSTEP® and POWERSENSE® Dimming models
  • Excellent for The Most Stringent energy codes and sustainability focused projects
