Product Overview

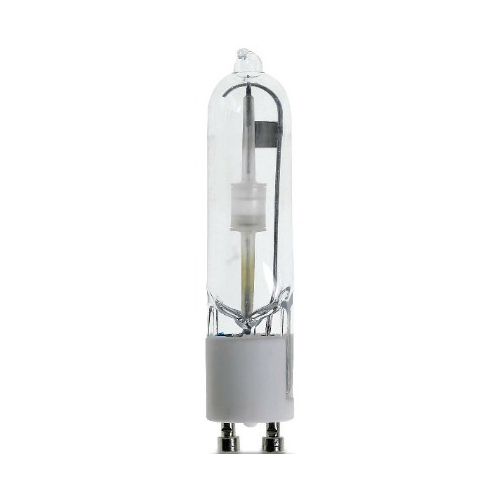

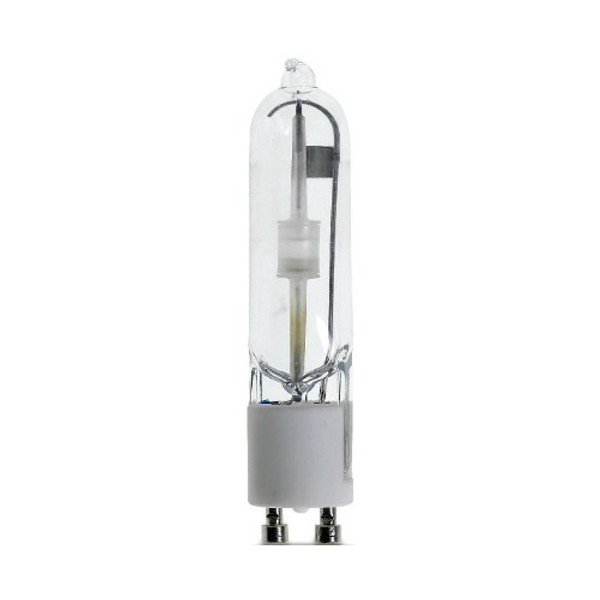

GE 71487 CMH-GU6.5 39 Watt Ansi C130/M130E 4200K T4 Mini Constant Color Pulsearc Super-Mini Metal Halide Display Lamp
- CRI 90
- Lamp Wattage 39W
- Bulb Designation T4
- Color Temp 4000K (942)
- Base Type GU6.5 Twist & Lock
- Burn Position Universal
- Rated Life 12,000
- Initial Lumens 3,400
- Max. Base Temp. 350º
- Max. Bulb Temp. 550º
- LCL 30mm ± 2mm
- MOL 2.05in (52.07mm)
- Overall Length w/ Pins 56.7mm
- Fixture Requirement Enclosed
- Max. Fixture Voltage-Rise 5 Volts
- Ballast Requirement ANSI C156
Cross Reference
- GE CMH35/T/UVC/942/GU6.5
- ILCOS MT/UB-35/40/1B-H/E-GU6.5-13/57
Compatible Ballasts for CHM35-GU6.5
- GE #63044 GEMH39-MSJ-MV
- GE #63045 GEMH39-MSF-MV
Additional Information
Highly efficient Reduce energy costs by up to $92.00 per lamp* when using a 39-watt CMH® (Requires new fixture to replace a 120 watt halogen) 4 times more lumens per watt than comparable incandescent or halogen lamps Twist and Lock Base Design Provides secure alignment Easy installation Robust base Reduces annoying pin degradation Color uniformity lamp-to-lamp ConstantColor CMH-GU6.5 lamps provide a consistent "white look" for color-critical applications such as retail display Excellent color rendering Up to 90 CRI for setting the desired look for the application. Long life Up to 12,000 hour rated life provides for extended relamp cycles and reduced maintenance costs Point source of light Compact quartz envelope allows for terrific fixture optics to maximize system efficiency Replacement 20W M156 Ballast & GU6.5 Sockets Available
R Warning:
This lamp can cause serious skin burn and eye inflammation from shortwave ultraviolet radiation
if outer envelope of the lamp is broken or punctured, and the arc tube continues to operate.
Do not use where people will remain for more than a few minutes unless adequate shielding
or other safety precautions are used. Certain types of lamps that will automatically
extinguish when the outer envelope is broken or punctured are commercially available.
