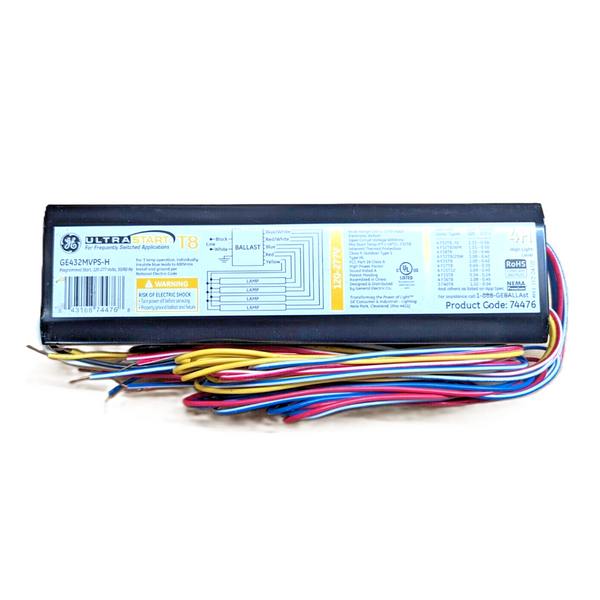

GE 74476 / 69222 Ultrastart GE432MVPS-H Electronic Ballast - 4-Lamp High Power 1.18BF Multivolt 120-277V Programmed Start

High-Efficiency Fluorescent Ballast for T8 Lamps - Programmed Start for Extended Lamp Life

Compatible Lamps

• 3 or 4 F17T8/ECO 24 inch Fluorescent Lamps
• 3 or 4 F25T8/ECO 36 inch Fluorescent Lamps
• 3 or 4 F32T8/25W Energy Saving 48 inch Lamps
• 3 or 4 F28T8/28W Energy Saving 48 inch Lamps
• 3 or 4 F32T8/WM 30W Energy Saving 48 inch Lamps
• 3 or 4 F32T8 48 inch FO32/ECO 32W Standard Lamps
• Also suitable for equivalent U-Bend T8 Fluorescent Lamps
• 3 FO40 60 inch Fluorescent T8 Lamps

Product Highlights

This ballast is ideal for high light output applications. With a ballast factor of 1.18, it delivers maximum lumens for brighter environments or fewer lamps for energy savings. Designed for 2, 3, or 4 lamp installations.

Features and Benefits

• High performance electronic ballast for general fluorescent applications
• Ultra-efficient programmed start operation with efficiency over 90 percent
• Extends lamp life in frequent switching applications over 100000 on-off cycles
• Start time visually similar to instant start
• Multivolt technology supports input voltage from 120 to 277V
• Parallel lamp operation for easy system maintenance
• Anti-striation circuitry reduces lamp striations with energy saving models
• Lightweight low-profile housing (Dimensions: 9.5 in L x 2.4 in W x 1.6 in H)
• Parallel circuitry keeps remaining lamps lit if one or more go out
• FCC compliant 47 CFR Part 18 for non-consumer use
• Sound Rating A (20 to 24 decibels)
• Maximum case temperature: 70 C
• High ballast factor of 1.18
• RoHS Compliant
• UL Type 1 Outdoor Rated

Cross Reference

• Universal B432IUNVHP-B
• Sylvania QTP4X32T8/UNV ISH-SC
• Philips Advance IOP-4P32-HL-SC
