Product Overview

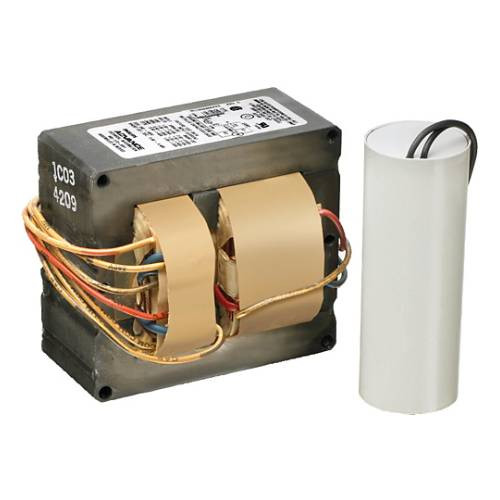

Philips Advance Core & Coil 71A5492 Magnetic HID Ballast
The Philips Advance 71A5492500D core and coil ballast forms the foundation of high-intensity discharge (HID) lighting systems. Designed for 150W metal halide lamps (ANSI codes M102-M142), this rugged magnetic ballast features a versatile multi-tap input (120/208/240/277V) and is rated for outdoor use in demanding environments.
Key Features & Benefits
- Universal Voltage Input: Compatible with 120V, 208V, 240V, and 277V systems
- High-Temperature Components: 105°C rated capacitor and ignitor (LI533-H4)
- Durable Construction: 3" x 4" core size with UL Insulation Class H (180°C)
- Outdoor Rated: Suitable for exposed luminaire applications
- Safety Certified: UL Recognized, CSA certified, and RoHS compliant
- Remote Wiring: Supports up to 10' ballast-to-lamp distance
Technical Specifications
| General Information | |
|---|---|
| ANSI Code | M102-M142 |
| Lamp Type | 150W Metal Halide |
| Circuit Type | HX-HPF |
| Ballast Type | Magnetic HID |
| Base Model | 71A5492 |
| Outdoor Rated | Yes |
| Electrical Characteristics | |
| Input Voltage | 120/208/240/277V |
| Frequency | 60Hz |
| Power Factor | 0.90 |
| Open Circuit Voltage | 250V |
| Input Power | 185W |
| Components | |
| Capacitor | 16 MFD, 280V (7C160M30RA) |
| Ignitor | LI533-H4 (105°C rated) |
| Physical Specifications | |
| Core Size | 3" x 4" (2 LW) |
| Wire Length | 12" stranded |
| Weight | 3.153 kg (6.95 lbs) |
Applications
- Outdoor area lighting (parking lots, roadways)
- Industrial high bay fixtures
- Warehouse lighting systems
- Commercial and municipal HID luminaires
