Product Overview

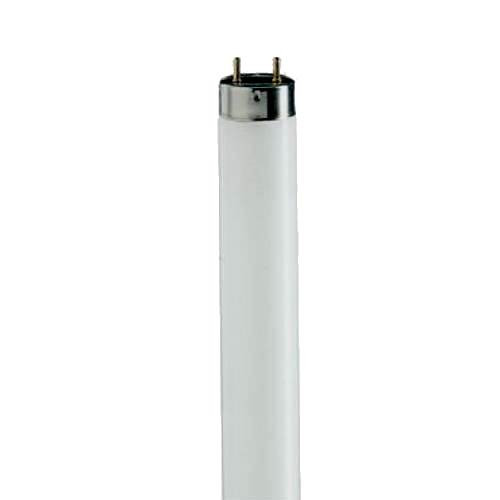

Replacement F17T8-6500K 17 Watt Bright Daylight Fluorescent T8 2ft Linear Lamp
Specifications
- CRI 85 - Excellent color accuracy
- Color Temperature: 6500K Daylight
- Initial Lumens: 1270lm
- Mean Lumens: 1205lm
- Rated Average Life: 24,000-42,000 hours
- Base Type: G13 Medium Bi-Pin
- Dimensions: MOL 23.78" x Diameter 1"
- Power Consumption: 17W - ECO energy efficient
- Tube Type: T8 Linear Fluorescent
- Length: 2 feet (24 inches)
- UPC/EAN Code 046135217180
Technical Specifications & Installation Guidelines
Performance Data:
- Mean lumens measured at 40% of average rated lamp life
- Approximate initial lumens after 100 hours operation
- Life ratings based on 3-hour operating cycles with ANSI-compliant ballasts
Ballast Compatibility:
- Designed for magnetic rapid start ballasts operating 265 mA T8 lamps
- Compatible with high frequency electronic ballasts (instant, rapid, or programmed rapid start)
- Instant start ballast factor range: 0.71 to 1.20
- For instant start mode: Connect both socket contacts together per NEC guidelines
