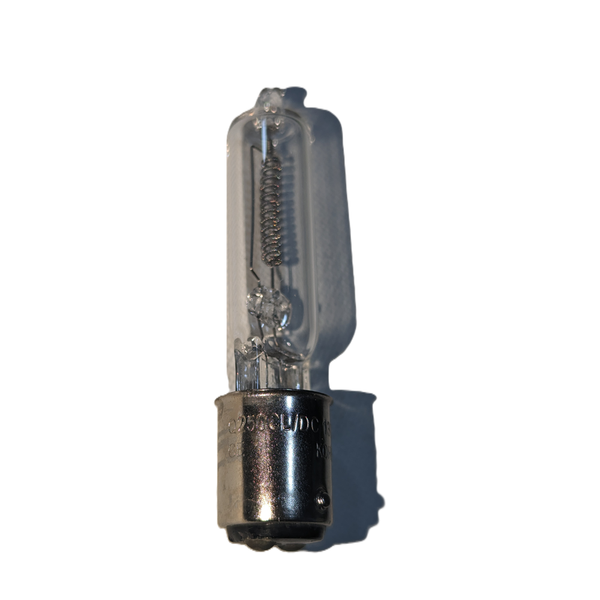

GE 43698 Q250CL/DC 130V – 130W/130V Quartzline Halogen SSTV Lamp

Specifications

• Brand: GE (General Electric)
• SKU / Order Code: GELSB43698 / —
• ANSI Code: —
• UPC: —
• Lamp Type: Quartzline Halogen
• Wattage: 130W
• Voltage: 130V
• Base Type: —
• Color Temperature: 2950K
• CRI: —
• Initial Lumens: —
• Rated Average Life: 2000 hours
• Filament: CC-8
• Max Overall Length (MOL): 3 in
• Bulb Diameter (DIA): 0.5 in
• Burn Position: —

Compatible Applications

• Stage, Studio & Entertainment

About GE SSTV Stage, Studio & Theater Lamps

GE SSTV (Stage, Studio & Theater / Videoconferencing) lamps are engineered for the most demanding professional entertainment and broadcast environments. Delivering exceptional color rendering, consistent output, and long-rated life, GE SSTV lamps — including the CSR Quartz Metal Halide, CSS Ceramic Metal Halide, and Quartzline Halogen series — are the trusted choice for film, broadcast, concert, and theatrical lighting worldwide.

Important Safety & Installation Notes

• High Pressure Warning: These lamps operate under high internal pressure. Always wear face shield and protective gloves during handling and installation.
• No Bare Hands: Never touch the bulb envelope with bare skin. Oils cause hot spots leading to premature failure or lamp burst. Use clean gloves or a lint-free cloth.
• Do Not Exceed Rated Voltage: Operating above rated voltage dramatically shortens lamp life. Verify supply voltage before installing.
• Burn Position: Observe the rated burn position. Incorrect orientation can cause premature failure or lamp burst.
• Extreme Heat Warning: SSTV lamps operate at very high temperatures and UV output. Use only in approved enclosed luminaires with appropriate UV filtering.
• Allow Cool Down: Allow lamp to cool completely before handling or relamping. Do not touch immediately after switching off.
