Product Overview

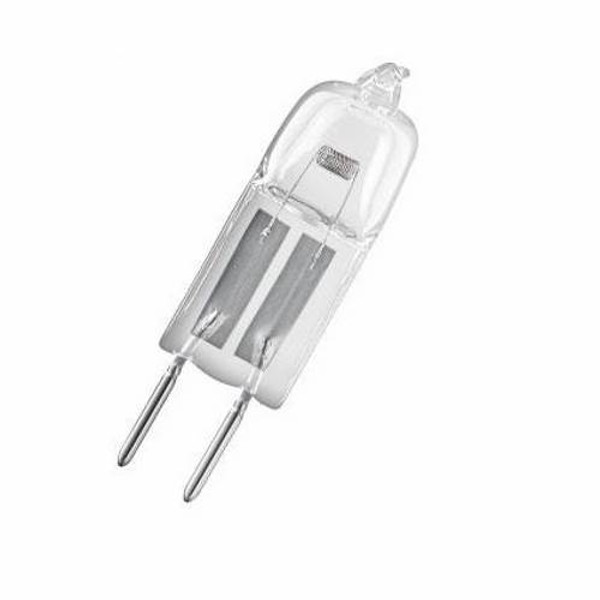

Ushio 1000867 JC6V-30W/G4 30W 6V T3 Halogen Lamp - G4 Base - 3300K
Compact 30-watt low voltage halogen lamp featuring T3 clear bulb and G4 miniature bi-pin base. Delivers 800 lumens with 3300K color temperature and C-6 filament. Designed for optical instruments, projectors, and task lighting applications. 50-hour rated life. Universal burn position.
Technical Specifications
Ushio Order Code:1000867
Description:JC6V-30W/G4, T3 Clear
Wattage:30W
Voltage:6V (Low Voltage)
Amperage:5.0A
Bulb Type:T3 (T-3 1/2)
Base Type:G4 Miniature Bi-Pin (4mm spacing)
Filament Type:C-6
Color Temperature:3300K Warm White
Color Rendering Index (CRI):100
Initial Lumens:800 lumens
Maximum Overall Length (MOL):1.18 inches (30mm)
Bulb Diameter:0.35 inches (9mm)
Front Glass:No (Open Face)
Rated Average Life:50 hours
Burn Position:Universal (Any position)
Case Quantity:10 per case
Manufacturer:Ushio America
Key Features
- Compact T3 Design: Small 9mm diameter fits tight fixture spaces
- G4 Miniature Base: 4mm pin spacing for secure connection in optical equipment
- C-6 Filament: Compact coil design for consistent output
- High Output: 800 lumens from compact 30W source
- Universal Burn Position: Operates reliably in any orientation
- Clear Finish: Maximum light transmission for optical applications
- Made in Japan: Manufactured under strict quality standards
Primary Applications
- Optical instruments and microscopes
- Film and slide projectors
- Task lighting and desk lamps
- Medical and dental equipment
- Scientific and laboratory instruments
- Photographic enlargers
- Display and showcase lighting
Important Usage Information
Short Life Rating
This lamp has a 50-hour rated life, which is typical for high-output optical and projection applications. It is NOT designed for general illumination purposes where longer life is expected. For general lighting applications requiring 2,000+ hour life, consider the Ushio JC12V-35W or other general purpose halogen lamps.
Available JC Series Variations
| Ushio Code | Voltage | Wattage | Lumens | Life | Application |
|---|---|---|---|---|---|
| 1000867 | 6V | 30W | 800 | 50 hrs | Optical/Projection |
| 1003030 | 12V | 30W | 650 | 2,000 hrs | General Illumination |
| 1000825 | 12V | 35W | 650 | 2,000 hrs | General Illumination |
| 1000827 | 12V | 50W | 950 | 2,000 hrs | General Illumination |
Cross Reference Numbers
Equivalent to: JC6V-30W/G4, FHD/ESA, 64223
Similar Products: JC6V-20W (1000866), JC6V-10W (1000857), JC12V-30W (1003030)
Technical Information
- Requires 6V low voltage transformer - do not exceed rated voltage
- G4 base (4mm pin spacing) - not compatible with GY6.35 or GZ4 bases
- 50-hour rated life typical for high-output optical applications
- Universal burn position allows flexible installation options
- Only for use in approved enclosed halogen fixtures
- Operate bulb wall temperature between 250°C and 550°C for optimal halogen cycle
Safety Information
Important Safety Notes
- Only for use in approved enclosed halogen fixtures
- Use gloves when handling to prevent oil contamination on bulb surface
- Allow lamp to cool before replacement
- Ensure proper ventilation in enclosed fixtures
- Do not touch bulb with bare hands - use clean cloth or gloves
- Verify transformer output is 6V before installation
