Product Overview

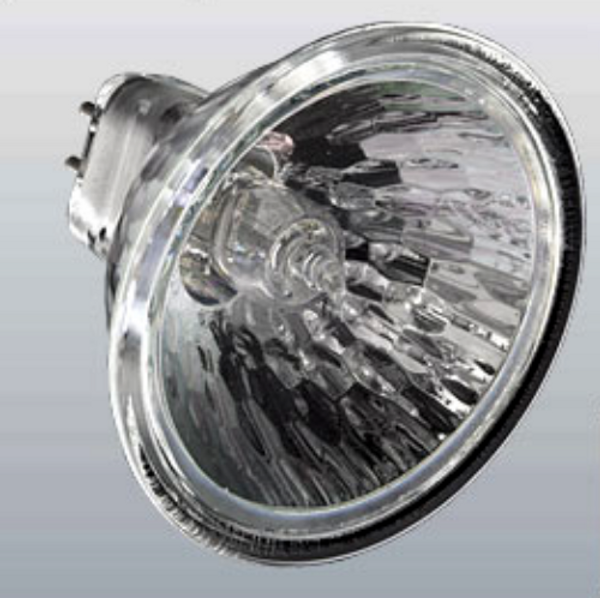

Ushio 1001123 JR24V-50W/NFL24/FG 24V Eurostar 50W MR16 Narrow Flood Halogen Lamp

Professional-grade 24-volt low voltage halogen reflector lamp featuring titanium oxide coated reflector and C-6 axial filament design. Delivers 2,900 CBCP with 24° narrow flood beam spread and 2950K warm white color temperature. Front glass cover provides UV protection and safety. Ideal for mining, marine, museum, and gallery applications where consistent color and long life are critical.

Technical Specifications

Ushio Order Code:1001123

Product Line:Eurostar Series

Description:JR24V-50W/NFL24/FG

Wattage:50W

Voltage:24V (Low Voltage)

Amperage:2.08A

ANSI Code:EXZ/24V

Bulb Type:MR16 Reflector

Reflector Coating:Titanium Oxide (Hard Coated)

Base Type:GU5.3 (2-Pin, 5.3mm spacing)

Filament Type:C-6 Axial Filament

Color Temperature:2950K Warm White

Color Rendering Index (CRI):100

Center Beam Candlepower (CBCP):2,900

Beam Angle:24° Narrow Flood (NFL)

Luminous Flux:1,000 lumens (approximate)

Front Glass:Yes - Clear Cover Glass with UV Protection

Maximum Overall Length (MOL):1.78 inches (45.2 mm)

Bulb Diameter:2.0 inches (50 mm)

Rated Average Life:4,000 hours

Burn Position:Universal (Any position)

Case Quantity:10 per case

UPC:048677122969

Manufacturer:Ushio America

Key Features

Titanium Oxide Reflector Coating: Hard-coated surface provides consistent color throughout lamp life, more durable than standard dichroic coatings
UV-Cut Halogen Capsule: Integrated UV protection eliminates 90% of harmful UV radiation
Axial Filament Design: C-6 axial filament ensures precise beam control and optimal light distribution
24V System Advantage: Uses 50% less current than 12V systems, allowing longer wire runs and more fixtures per circuit
Clear Front Glass: Protects capsule while maintaining high light transmission
Universal Burn Position: Operates reliably in any orientation
4,000 Hour Life: Double the life of standard MR16 lamps
100% Dimmable: Compatible with standard halogen dimmers
Consistent Color: Titanium oxide coating maintains 2950K color temperature throughout lamp life

Primary Applications

Mining equipment and tunnel lighting
Marine and cruise ship illumination
Museum and gallery accent lighting
Retail display and merchandise highlighting
Hospitality and restaurant lighting
Residential accent and track lighting
Industrial machine vision systems
Architectural landscape lighting

24V System Advantages

The Ushio Eurostar 24V series provides significant advantages over 12V systems:

Reduced Current: 50% less amperage (2.08A vs 4.17A) means less voltage drop over long wire runs
Longer Runs: Can use smaller gauge wire or run longer distances with less brightness loss
More Fixtures: Up to twice as many lamps on a single circuit compared to 12V systems
Consistent Brightness: Less prone to voltage drop issues, maintaining uniform light output
Energy Efficiency: Lower current reduces wiring costs and energy losses

Technical Information

Only for use in approved halogen fixtures rated for 24V operation
Requires 24V low voltage transformer - do not use with 12V systems
Cool beam effect reduces heat to back of fixture
Maintains consistent color temperature throughout 4,000-hour life
GU5.3 base with 5.3mm pin spacing for secure connection

Cross Reference Numbers

Alternate Order Codes: 1003114 (open face, no front glass version)
Equivalent to: EXZ/24V, JR24V-50W/NFL24, FNV/24V
Similar Products: 1003115 (36° flood version), 1003113 (12° spot version)
