Product Overview

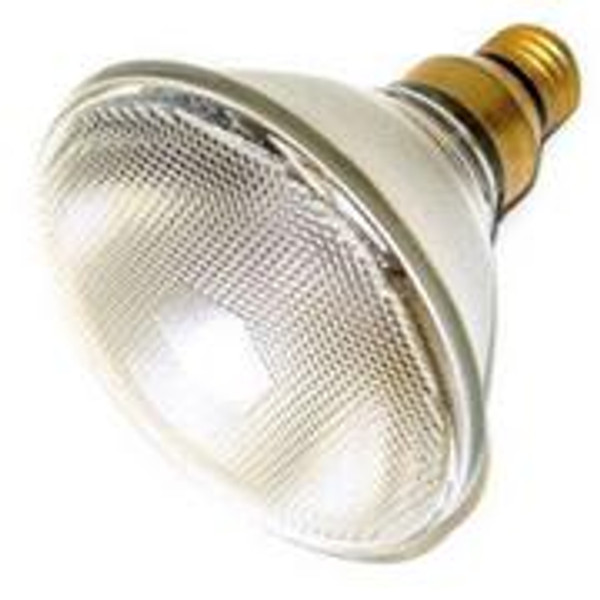

GE 14748 75PARHFL25 75W PAR38 Halogen Flood Lamp - 25° Beam - E26 Medium Base
The GE 14748 75PARHFL25 is a high-performance 75W PAR38 halogen flood lamp featuring a precise 25° flood beam spread and standard E26 medium skirt base. Delivering 1,050 lumens of warm 2850K white light with excellent color rendering (CRI 100), this indoor/outdoor rated reflector lamp is ideal for landscape lighting, security floodlights, track lighting, and recessed downlights. With a 2,500-hour rated life and durable PAR38 construction, it provides reliable illumination for residential and commercial applications.
Technical Specifications - GE 14748 PAR38
| Manufacturer Part Number | 14748 |
|---|---|
| Product Code | 75PARHFL25 |
| Wattage | 75 Watts |
| Voltage | 120 Volts |
| Base Type | E26 Medium Skirt (Standard Screw) |
| Bulb Shape | PAR38 (Pressed Glass Reflector 4.75" diameter) |
| Beam Angle | 25° Flood |
| Color Temperature | 2850K (Warm White) |
| Color Rendering Index (CRI) | 100 (Perfect Color Rendering) |
| Initial Lumens | 1,050 lm |
| Center Beam Candlepower (CBCP) | 2,800 cd (estimated) |
| Filament Type | CC-8 (Coiled Coil) |
| Rated Life | 2,500 Hours |
| Maximum Overall Length (MOL) | 5.31 inches (134.8mm) |
| Bulb Diameter | 4.75 inches (120.6mm) - PAR38 |
| Dimming | Fully Dimmable (0-100%) |
| Operating Position | Universal (Any) |
| Indoor/Outdoor Rating | Suitable for Wet Locations (when used in appropriate fixture) |
| Energy Efficiency | 14 Lumens per Watt |
25° Flood Beam Characteristics
The 25-degree flood beam provides optimal coverage for general area lighting and wall washing:
- Beam Spread at 10 feet: 4.4-foot diameter pool of light
- Beam Spread at 20 feet: 8.8-foot diameter coverage
- Field Angle (50% intensity): Approximately 40°
- Cutoff: Medium-soft edge transition suitable for general illumination
- Best Applications:_SECURITY LIGHTING, landscape accents, recessed cans, track lighting
PAR38 Beam Comparison Guide
| Beam Type | Angle | Coverage at 20ft | Best Use |
|---|---|---|---|
| Spot | 10° | 3.5 ft diameter | Pin spotting, flags |
| Narrow Flood | 25° | 8.8 ft diameter | Accent lighting, security |
| Flood (This Lamp) | 25° | 8.8 ft diameter | General illumination |
| Wide Flood | 40° | 14.6 ft diameter | Wall washing, area fill |
Recommended Applications
Residential Outdoor
- Security Floodlights: 25° beam covers entryways and driveways
- Landscape Uplighting: Highlight trees, architectural features
- Facade Lighting: Wash exterior walls with warm 2850K light
- Deck & Patio: Outdoor living space illumination
- Flagpole Lighting: Proper beam spread for 3x5 flags up to 25ft
Commercial & Industrial
- Loading Docks: Durable PAR38 withstands vibration
- Parking Lot Perimeter: Accent lighting for building perimeters
- Sign Illumination: Ground-mounted sign lighting
- Retail Security: Exterior building wash for deterrence
- Warehouse Doorways: Overdoor safety lighting
Interior Lighting
- Recessed Downlights: 5-6 inch can lights
- Track Lighting: Art galleries and retail displays
- High-Ceiling Fixtures: Churches, atriums, auditoriums
- Accent Lighting: Wall grazing and artwork highlighting
- Hospitality: Hotel lobbies and restaurant ambiance
Halogen Safety Information
? Burn Hazard
- Lamp surface operates at 400-500°F (204-260°C)
- Allow 15 minutes cool-down before handling
- Do not touch glass with bare hands (oils cause hot spots)
- Use clean cloth or gloves for installation
- Keep combustible materials 6+ inches from lamp face
⚠️ Pressure Rupture Risk
- PAR38 lamps operate under internal pressure
- Do not use if glass is scratched or chipped
- Do not exceed rated voltage (120V only)
- Use in fixtures rated for PAR38 halogen
- Shield from direct rain unless fixture is wet-rated
? Handling Tips
- 2850K warm white enhances skin tones and wood finishes
- Fully dimmable with standard incandescent dimmers
- Instant on - no warm-up time
- CC-8 filament provides stable beam pattern
Halogen vs LED: 75W PAR38 Comparison
| Feature | This GE 75W Halogen | LED PAR38 Equivalent | Consideration |
|---|---|---|---|
| Wattage | 75W | 10-15W | LED uses 80% less energy |
| Initial Cost | $6-8 | $15-25 | Halogen lower upfront cost |
| Lumen Output | 1,050 lm | 1,000-1,200 lm | Comparable brightness |
| Color Rendering (CRI) | 100 (Perfect) | 80-90 (Good) | Halogen superior for art/retail |
| Dimming Performance | Excellent (0-100%) | Variable by model | Halogen dims smoothly |
| Warm-up Time | Instant | Instant | Both immediate full brightness |
| Lamp Life | 2,500 hours | 25,000+ hours | LED lasts 10x longer |
| Operating Temp | Very Hot (400°F+) | Cool to touch | LED safer for enclosed fixtures |
When to Choose Halogen: Select this GE 14748 when color accuracy is critical (art galleries, retail), when using existing dimmers, or for short-term seasonal lighting. Choose LED for 24/7 operation, hard-to-reach fixtures, or energy-sensitive applications.
Compatible Replacements & Equivalents
This GE 14748 75PARHFL25 replaces or cross-references to:
- Sylvania 75PAR38/HAL/FL25 (14577)
- Philips HalogenA PAR38 75W 25° Flood
- OSRAM SYLVANIA 75PAR38/FL25/HAL/120V
- Ushio 75PAR38/FL25/HAL
- Any standard 75W PAR38 25° flood with E26 base
Wattage Alternatives Available:
- 60W PAR38 (smaller fixtures, less light)
- 90W PAR38 (high output security)
- 100W-120W PAR38 (commercial high-bay)
- 45W IR Halogen (energy saving version)
Frequently Asked Questions
What is the difference between PAR30 and PAR38?
PAR38 (used in this GE 14748) has a 4.75-inch diameter and is typically 75W-120W, suitable for outdoor floodlights and high-ceiling indoor fixtures. PAR30 is smaller (3.75-inch diameter), usually 50W-75W, and fits standard indoor cans. PAR38 provides more light output and wider beam spread but requires larger fixtures. Always verify your fixture's maximum diameter before ordering.
Can I use this halogen lamp in a standard light socket?
Yes, the E26 medium base is the standard screw-in base used in most US household fixtures. However, ensure your fixture is rated for PAR38 size (4.75" diameter) and can handle the heat generated by 75W halogen (400°F+ surface temperature). Do not use in plastic socket fixtures or enclosed fixtures without adequate ventilation.
How many lumens is a 75W PAR38 halogen?
This GE 14748 75PARHFL25 produces 1,050 initial lumens. Beam angle affects perceived brightness: the 25° flood concentrates light into a specific area, creating higher foot-candles (illuminance) than a wide flood of the same lumen output. For comparison, a 75W incandescent A19 bulb produces about 1,100 lumens but spreads it in all directions.
Is 2850K too yellow for outdoor security lighting?
2850K warm white is preferred for residential outdoor lighting because it reduces glare and light pollution compared to cooler temperatures (4000K+). It provides excellent color rendering for identifying faces and vehicles while being neighborhood-friendly. For commercial security requiring maximum alertness, 3000K-4000K might be preferred, but 2850K is ideal for home security and ambiance.
Why does my PAR38 bulb keep burning out quickly?
Premature failure is usually caused by: (1) Voltage fluctuations - verify 120V supply (not 130V). (2) Fixture vibration - garage door openers and machinery cause filament failure. (3) Fingerprint contamination - oils on glass create hot spots. (4) Enclosed fixtures - excessive heat buildup. (5) Dimmer incompatibility - ensure dimmer is rated for 75W halogen. This GE lamp should last 2,500 hours (3 hours/day = 2.3 years).
