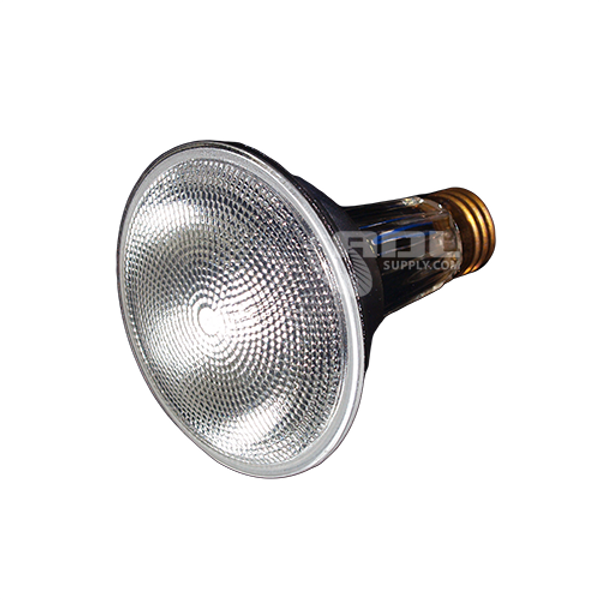

Sylvania 14586 90W PAR38 Halogen Narrow Spot Light Bulb – 9° Beam Angle

Capsylite SPL Series PAR38 Reflector Lamp – 1,310 Lumens – 2950K Warm White – E26 Medium Skirt Base

Key Features

• Precision Optical System: Features Sylvania's advanced SPL (Soft Pool Lens) optics combining a unique spiral-fluted reflector with patented spiral lens design for superior beam control and reduced glare
• Ultra-Narrow Beam Control: Tight 9° narrow spot beam angle (not wide flood) creates an intense, focused pool of light perfect for long-throw accent lighting and highlighting architectural details
• High-Intensity Output: Delivers a powerful 1,310 lumens of crisp halogen light from 90 watts, providing exceptional brightness for demanding commercial and residential spotlight applications
• Warm White Ambiance: 2950K color temperature produces inviting, warm illumination that enhances textures and creates comfortable, intimate environments ideal for hospitality settings
• Extended Service Life: Rated for 2,500 hours of average rated life under standard operating conditions, minimizing maintenance costs in hard-to-reach ceiling and track installations
• Professional Grade Construction: CC-8 filament technology ensures consistent light output and stable color rendering throughout the lamp's operational lifespan
• Versatile Dimming: Fully dimmable using standard incandescent/halogen dimmers, allowing seamless adjustment from full brightness (1310 lumens) to subtle accent levels
• Standard Compatibility: E26 medium skirt base fits standard medium screw sockets; operates at 120V with no ballast or transformer required
• Robust Physical Specs: PAR38 form factor measures 5.31 inches maximum overall length (MOL) with 4.8-inch diameter—verify adequate housing depth for installation

Technical Specifications

• Optical Performance: Narrow spot distribution with precise 9° beam angle (9-degree) and spiral-fluted aluminum reflector for maximum center beam candlepower (CBCP) and minimal spill light
• Light Output & Efficacy: 1310 initial lumens at rated voltage; high efficacy tungsten halogen capsule with integrated UV-filter to protect displayed artwork and fabrics from fading
• Color Characteristics: 2950K correlated color temperature (CCT) with excellent color rendering index (CRI) typically 100Ra, revealing true colors in retail displays and galleries
• Electrical Specifications: 90 watt power consumption at 120 volts AC; 60Hz line frequency compatible; CC-8 coiled-coil filament design for vibration resistance
• Dimensional Data: Maximum Overall Length (MOL) 5.31 inches (135mm), not 3.75"; major diameter 4.75 inches (PAR38); E26 medium skirt base configuration
• Operating Parameters: Suitable for open fixture use (check local codes); operating position universal (base up, base down, or horizontal); minimum starting temperature -40°F
• Product Traceability: Authentic Sylvania Osram part number 14586; Global Trade Item Number 046135145865; cross-reference: 90PAR38/HAL/SP9/120V
• Compliance & Safety: Contains tungsten halogen capsule with UV filtering; operates under pressure—use protective shielding where required by code; suitable for indoor and protected outdoor use
