Product Overview

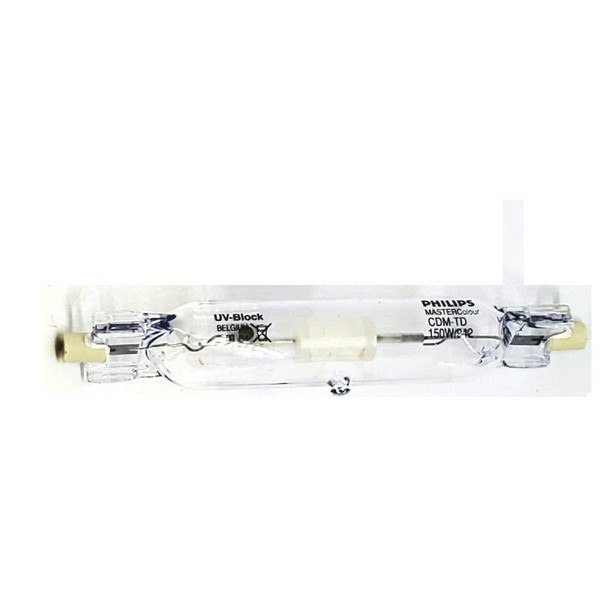

Philips Mastercolour CDM-TD 150W/942 RX7s – 150W | 4200K Cool White | CRI 96 | ANSI M142E,M102E,M81E | Horizontal ±45° | Rx7s Double-Ended Ceramic

The Philips Mastercolour CDM-TD 150W/942 RX7s is a 150W 4200K Cool White CDM-TD Ceramic Metal Halide — Double-Ended lamp, CRI 96, ANSI M142E,M102E,M81E, Rx7s Double-Ended Ceramic, 14,200 initial lumens, 16,000 hours rated life, Horizontal ±45° burn position. Enclosed Luminaires Only. Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear. UPC: 871150020025915.

Wattage

150W

CDM Ceramic MH

Color Temp

4200K

CRI 96

ANSI Code

M142E,M102E,

Ballast Code

Rated Life

16,000

Hours

Base

Rx7s

Double-End

Quick Specs

Brand: Philips
Series: Philips MasterColor CDM-TD
UPC: 871150020025915
ANSI Code: M142E,M102E,M81E
Lamp Type: CDM-TD Ceramic Metal Halide — Double-Ended
Wattage: 150W
Color Temperature: 4200K Cool White
CRI: 96
Initial Lumens: 14,200 lm
Mean Lumens: 12,070 lm
Rated Average Life: 16,000 hours
Base Type: Rx7s Double-Ended Ceramic
Overall Length / Diameter (MOL): 5.43in x DIA 0.75in
Burn / Operating Position: Horizontal ±45°
Fixture Compatibility: Enclosed Luminaires Only
Start Type: Requires thermally protected CMH/CDM ballast.
Mercury Content: Contains mercury — dispose per local regulations.

Product Overview

The Philips Mastercolour CDM-TD 150W/942 RX7s is a 150W 4200K Cool White CDM-TD Ceramic Metal Halide — Double-Ended for high-output double-ended CMH fixture applications. CRI 96 — delivers exceptional color rendering for accurate product and artwork presentation. Rated life: 16,000 hours. Enclosed Luminaires Only.

Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear. Contains mercury — dispose per local regulations.

Applications

Commercial and industrial CDM lighting – High-output double-ended cmh fixture applications.
Retrofit and maintenance replacement – Verify ANSI code, wattage, and base type before ordering. Requires thermally protected CDM control gear.

Safety and Installation

Thermally protected ballast required. Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear.
Fixture: Enclosed Luminaires Only.
Burn position: Horizontal ±45°.
Allow warm-up time: 2–4 minutes for full output.
Hot restrike: Allow 5–10 minutes after switching off before restarting.
UV radiation: Use only in fixtures with UV-protective shielding.
Mercury disposal: Contains mercury — dispose per local lamp recycling regulations.
