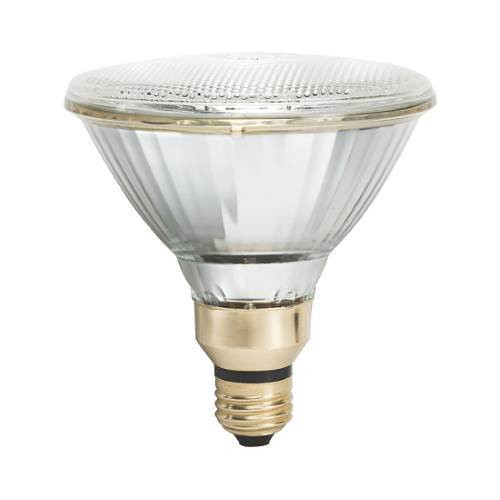

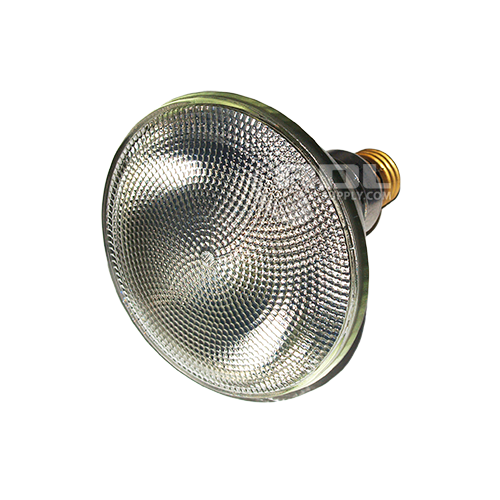

Sylvania 70W C98/O Metalarc Powerball Ceramic Metal Halide PAR38 Spot Reflector Part #: 64749

ANSI C98/O | PAR38 | 15° Spot Beam | 3000K | 88 CRI | Open Rated

Technical Specifications

Product CodeMCP70PAR38/U/SP/830/ECO

Ordering Code64749

ANSI CodeC98/O (Open Rated)

Wattage70W

Operating Voltage95V

Lamp Current0.98 Amps

Lamp TypePAR38 Ceramic Metal Halide (Clear)

Base TypeE26 Medium Screw Skirted (E26sk)

Color Temperature3000K (830) Warm White

Color Rendering Index (CRI)88

Beam Spread15° Spot

Initial Lumen Output4,300 lumens

Mean Lumen Output3,440 lumens

Mean Beam Candlepower (MBCP)42,000 candela

Luminous Efficacy61 lm/W

Maximum Overall Length (MOL)5.31 inches (135mm)

Light Center Length (LCL)3.15 inches (80mm)

Bulb Diameter4.75 inches (121mm) - PAR38

Rated Average Life12,000 hours

Burn PositionUniversal

Operating ModePulse Start

Fixture RatingOpen or Enclosed Fixtures (O-Type)

Case Quantity6 per case

OriginMade in Germany

Applications

Ideal for display lighting, specialty retail, and architectural outdoor applications where high-intensity directional lighting is required. The precision optics provide smooth, even beam patterns with no hot spots.

Retail display lighting (jewelry stores, galleries, museums)
Architectural accent lighting
Outdoor facade lighting
Commercial spotlighting
Track lighting systems
General commercial illumination

Installation Requirements

Open or Enclosed Fixtures: Rated for use in open or enclosed luminaires (O-type classification)
Thermally Protected Ballast: Requires thermally protected ballast for safety
Pulse-Rated Sockets: Use with 4000V pulse-rated sockets only
Minimum Open-Circuit Voltage: 209V RMS (230V nominal)
Overcurrent Protection: Circuit must include appropriate overcurrent protection
Ballast Compatibility: ANSI C98/O compatible ballasts

Critical Safety Notice

WARNING: These lamps can cause serious skin burns and eye inflammation from shortwave ultraviolet radiation if the outer envelope is broken or punctured. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precautions are used. Certain lamps that will automatically extinguish when the outer envelope is broken or punctured are commercially available.

This lamp complies with FDA radiation performance standard 21 CFR Subchapter J (USA: 21 CFR 1040.30, Canada: SOR/DORS/80-381).

Mandatory Safety Precautions

Avoid use in areas where people remain for extended periods without UV shielding
Ensure adequate shielding is always in place
Consider lamps with automatic extinguishing features for high-risk areas
Use only with pulse-rated sockets rated for 4000V

Key Features & Benefits

High-Intensity Spot Beam: 15° spot with 42,000 candela for powerful directional lighting
Pulse Start Technology: Faster warm-up and better lumen maintenance than probe start lamps
Precision Optics: Smooth, even beam patterns with no hot spots
Good Color Rendering: 88 CRI for acceptable color accuracy in retail and display applications
Open Rated: Can be used in open fixtures (O-type) for maximum flexibility
Long Life: 12,000 hour rated life reduces maintenance costs
Universal Operation: Can be operated in any burn position
Ceramic Arc Tube: Powerball technology for consistent performance and excellent color characteristics
Easy Installation: E26 medium screw base for standard fixtures

Related Products

Also available: 64750 (MCP70PAR38/U/FL/830/ECO) - 35° flood beam version for wider area coverage, or 64748 (MCP70PAR38/U/SP/942/ECO) - 4200K cool white version with 90+ CRI.
