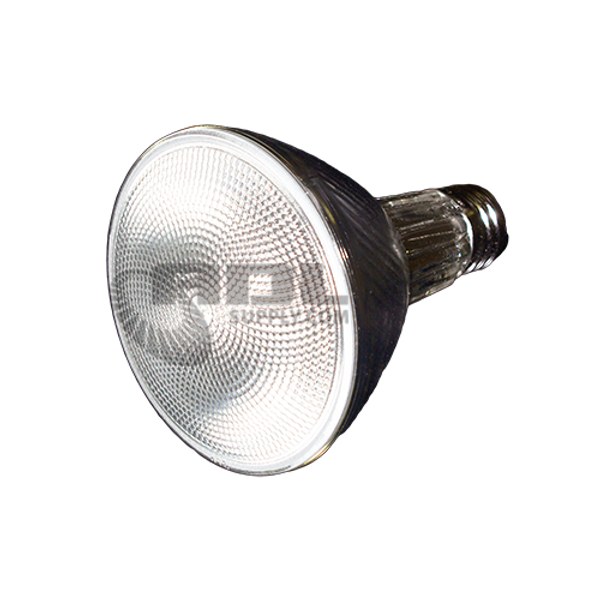

Sylvania Metalarc Powerball 39W Ceramic Metal Halide PAR30 Flood Reflector Part #: 64881 (also 64270)

Technical Specifications

Product CodeMCP39PAR30LN/U/830/FL/ECO

Ordering Codes64881 (current) or 64270 (legacy)

ANSI CodeC130/O (Open Rated)

Wattage39W

Operating Voltage85V

Lamp Current0.53 Amps

Lamp TypePAR30LN Ceramic Metal Halide (Clear)

Base TypeE26 Medium Screw

Color Temperature3000K (830) Warm White

Color Rendering Index (CRI)82

Beam Spread30° Flood

Initial Lumen Output2,300 lumens

Mean Lumen Output1,840 lumens

Mean Beam Candlepower (MBCP)6,000-7,000 candela

Luminous Efficacy59 lm/W

Maximum Overall Length (MOL)4.76 inches (121mm)

Light Center Length (LCL)3.15 inches (80mm)

Bulb Diameter3.75 inches (95mm) - PAR30LN

Rated Average Life12,000 hours

Burn PositionUniversal

Operating ModePulse Start

Fixture RatingOpen or Enclosed Fixtures (O-Type)

OriginMade in Germany

Applications

Ideal for display lighting, specialty retail, and architectural outdoor applications where compact size, good color rendering, and wide area coverage are required.

Retail display lighting (jewelry stores, galleries, museums)
Architectural accent lighting
Outdoor facade lighting
Commercial floodlighting
Track lighting systems
General commercial illumination

Installation Requirements

Open or Enclosed Fixtures: Rated for use in open or enclosed luminaires (O-type classification)
Thermally Protected Ballast: Requires thermally protected ballast for safety
Pulse-Rated Sockets: Use with 4000V pulse-rated sockets only
Minimum Open-Circuit Voltage: 209V RMS (230V nominal)
Overcurrent Protection: Circuit must include appropriate overcurrent protection
Ballast Compatibility: ANSI C130/O compatible ballasts

Critical Safety Notice

WARNING: These lamps can cause serious skin burns and eye inflammation from shortwave ultraviolet radiation if the outer envelope is broken or punctured. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precautions are used. Certain lamps that will automatically extinguish when the outer envelope is broken or punctured are commercially available.

This lamp complies with FDA radiation performance standard 21 CFR Subchapter J (USA: 21 CFR 1040.30, Canada: SOR/DORS/80-381).

Mandatory Safety Precautions

Avoid use in areas where people remain for extended periods without UV shielding
Ensure adequate shielding is always in place
Consider lamps with automatic extinguishing features for high-risk areas
Fixture must be suitably enclosed (E-type rating) if not using O-type
Use only with pulse-rated sockets rated for 4000V

Key Features & Benefits

Compact PAR30LN Design: Long neck design for deeper fixture recessing
Wide Flood Beam: 30° flood for broad area coverage
Pulse Start Technology: Faster warm-up and better lumen maintenance
Good Color Rendering: 82 CRI for acceptable color accuracy in retail and display applications
Open Rated: Can be used in open fixtures (O-type) for maximum flexibility
Long Life: 12,000 hour rated life reduces maintenance costs
Universal Operation: Can be operated in any burn position
Ceramic Arc Tube: Powerball technology for consistent performance and excellent color characteristics
Easy Installation: E26 medium screw base for standard fixtures

Related Products

Also available: 64880 (MCP39PAR30LN/U/830/SP/ECO) - 10° spot beam version with 8,000 candela for concentrated lighting, or 64265 (MCP39PAR20/U/830/FL/ECO) - PAR20 30° flood version for more compact applications.
