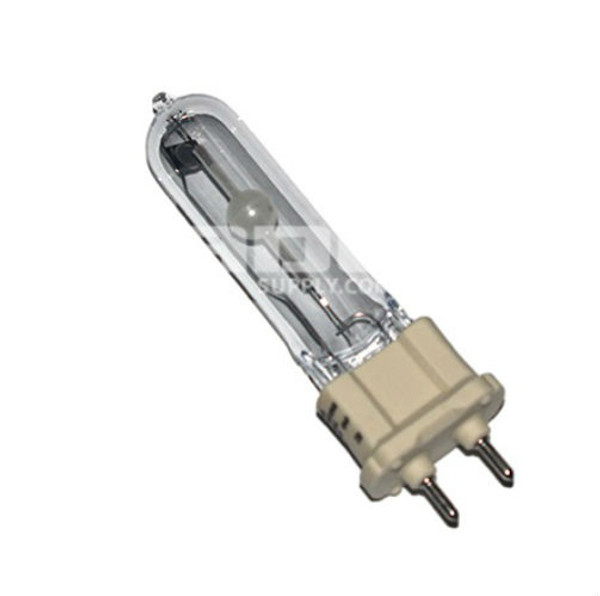

Sylvania Metalarc Powerball 39W Ceramic Metal Halide Lamp Part #: 64970 (also 64325)

ANSI C130/E | 3000K Warm White | 82 CRI | G12 Bi-Pin Base | 3400 Lumens

Technical Specifications

Product CodeMC39T6/U/G12/830

Ordering Codes64970 (current) or 64325 (legacy)

ANSI CodeC130/E

Wattage39W

Operating Voltage85V

Lamp Current0.53 Amps

Lamp TypeT6 Ceramic Metal Halide (Clear)

Base TypeG12 Ceramic Bi-Pin (12mm center-to-center)

Color Temperature3000K (830) Warm White

Color Rendering Index (CRI)82

Initial Lumen Output3,400 lumens

Mean Lumen Output2,720 lumens

Luminous Efficacy87 lm/W

Maximum Overall Length (MOL)3.94 inches (100mm)

Light Center Length (LCL)2.36 inches (60mm)

Bulb Diameter0.71 inches (18mm) - T6

Rated Average Life15,000 hours

Burn PositionUniversal

Operating ModePulse Start

Chromaticity CoordinatesX: 0.432, Y: 0.396

UV ProtectionUV-Stop Quartz (reduced UV output)

OriginMade in Germany

Product Details

Family Brand: Metalarc Powerball
Model: MC39T6UG12830
UPC (64970): 046135649700
UPC (64325): 046135643252
Package Quantity: 12 per case

Applications

Ideal for display lighting, specialty retail, and architectural outdoor applications where high efficacy and good color rendering are required.

Retail display lighting (jewelry stores, galleries, museums)
Accent and track lighting systems
Architectural accent lighting
Outdoor facade lighting
Commercial downlights
Indirect luminaires
General commercial illumination

Installation Requirements

Enclosed Fixtures Only: Rated for use in enclosed luminaires only (E-type classification)
Thermally Protected Ballast: Operates only on thermally protected ballast
Pulse-Rated Sockets: Use with 4000V pulse-rated sockets only
Minimum Open-Circuit Voltage: 209V RMS (230V nominal)
Overcurrent Protection: Circuit must include appropriate overcurrent protection
Ballast Compatibility: ANSI C130/E compatible ballasts
UV Protection: Equipped with UV-Stop quartz technology

Critical Safety Notice

WARNING: These lamps can cause serious skin burns and eye inflammation from shortwave ultraviolet radiation if the outer envelope is broken or punctured. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precautions are used. Certain lamps that will automatically extinguish when the outer envelope is broken or punctured are commercially available.

This lamp complies with FDA radiation performance standard 21 CFR Subchapter J (USA: 21 CFR 1040.30, Canada: SOR/DORS/80-381).

Mandatory Safety Precautions

Avoid use in areas where people remain for extended periods without UV shielding
Ensure adequate shielding is always in place
Consider lamps with automatic extinguishing features for high-risk areas
Fixture must be suitably enclosed (E-type rating)
Use only with pulse-rated sockets rated for 4000V

Key Features & Benefits

Pulse Start Technology: Faster warm-up and better lumen maintenance than probe start lamps
Good Color Rendering: 82 CRI for acceptable color accuracy in retail and display applications
Long Life: 15,000 hour rated life reduces maintenance costs
High Efficacy: 87 lumens per watt for energy efficiency
Stable Color: Reduced color temperature shift over lamp life (±150K max)
Universal Operation: Can be operated in any burn position
UV Protection: UV-Stop quartz construction for reduced UV output
Ceramic Arc Tube: Powerball technology for consistent performance

Related Products

Also available: 64363/64971 (MC39T6/U/G12/940) - 4200K cool white version with 90 CRI for applications requiring cooler color temperature and better color rendering.
