Product Overview

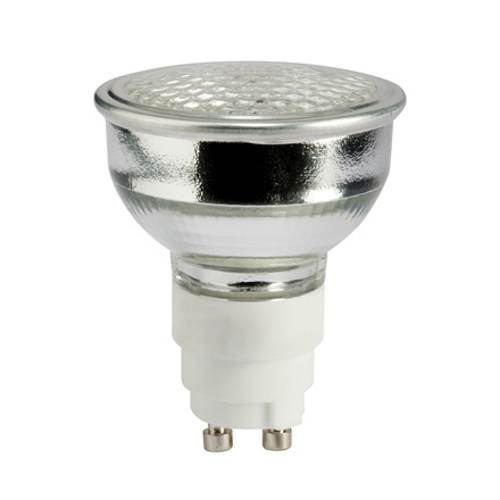

GE CMH20MR16/830/FL #85110 20W Ceramic Metal Halide MR16 Flood Lamp - 3000K 25° Beam GX10 Base
The GE CMH20MR16/830/FL (Part #85110) is a 20-watt ConstantColor ceramic metal halide MR16 flood lamp delivering 1,000 lumens at 3000K warm white with 80 CRI. Featuring a precise 25° flood beam angle and 2,900 CBCP, this pulse-start lamp offers exceptional color consistency and 96% lumen maintenance at 12,000 hours. Compatible with open or enclosed fixtures.
Key Specifications
- Wattage: 20W Energy Efficient CMH
- Voltage: 95V (Peak Lead Ballast)
- Color Temperature: 3000K Warm White (830 Code)
- Color Rendering Index (CRI): 80
- Initial Lumens: 1,000 lm
- Beam Angle: 25° Flood
- Center Beam Candlepower (CBCP): 2,900 cd
- Base Type: GX10 Twist-Lock Ceramic
- ANSI Code: C156/M156/O (Triple Compatible)
- Burn Position: Universal
- Rated Life: 12,000 Hours
- Lumen Maintenance: 96% at 12,000 hours
- Maximum Overall Length (MOL): 2.28" (58mm)
- Diameter: 1.99" (50.5mm)
- Fixture Compatibility: Open or Enclosed
- Arc Tube: Unprotected (Open Fixture Rated)
- Part Number: 85110
- UPC: 043168851107
- Case Quantity: 12 per case
- Country of Origin: Hungary
Compatible Ballasts
Requires low-frequency electronic ballast compatible with ANSI C156/M156/O:
- GE GEMH20-MSJ-MV (Order Code: 63042)
- GE GEMH20-MSF-MV (Order Code: 63043)
Recommended Applications
- Track and Accent Lighting
- Retail Store Displays and Merchandising
- Architectural Spot and Flood Lighting
- Museum and Gallery Illumination
- Display Case and Showcase Lighting
- General Downlighting
ConstantColor Technology Benefits
- Lamp-to-lamp color uniformity throughout rated life
- 96% lumen maintenance at 12,000 hours
- Excellent color rendering with enriched reds
- Longer life than incandescent or halogen PAR lamps
- Pulse start operation for instant restrike
- UV-filtering outer jacket for safe operation
- Ceramic burner technology for thermal stability
Alternate Part Numbers
Also known as: GE 85110, CMH20MR16/830/FL, 85110G, GE 20W MR16 CMH Flood
Safety & Handling Instructions
Burn Prevention
- Allow lamp to cool completely before handling - operates at high temperature
- Ensure lamp is fully seated in socket before energizing
- Never use excessive force during installation
Electrical & Fire Safety
- Requires UL-listed enclosed fixtures for wet locations
- Always disconnect power before installation or maintenance
- Inspect outer glass for damage before use - replace if scratched or broken
- Maintain safe clearance from combustible materials
- Use only with thermally protected ballasts
UV Warning
- UV-filtering glass provided for safety in open fixtures
- Do not operate if outer envelope is damaged - risk of UV radiation exposure
- FDA guidelines recommend precautions for prolonged exposure areas
Operational Safety
- Mercury-containing product - dispose of properly according to local regulations
- Replace at end of 12,000 hour rated life
- Never exceed electrical ratings
