Product Overview

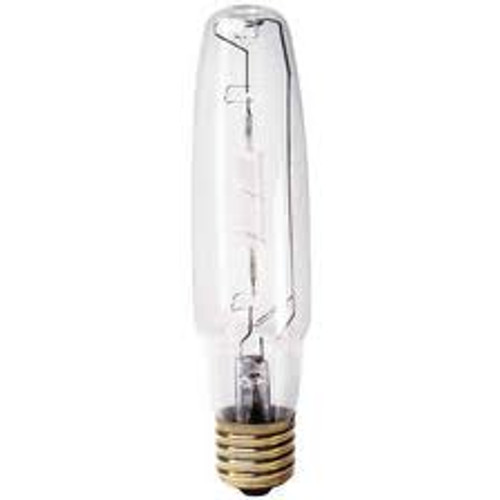

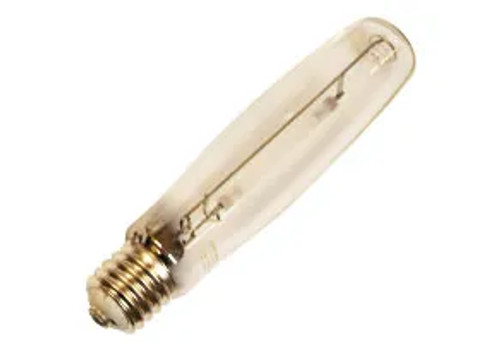

GE Lucalox 250W High Pressure Sodium (HPS) | ANSI S50
High-Efficiency ED18 Tubular Lamp with Mogul (E39) Base
The GE Lucalox 85377 is a dependable, high-output 250-watt High Pressure Sodium lamp engineered for industrial and commercial reliability. Known for its exceptional 24,000-hour lifespan and high lumen maintenance, this ANSI S50 lamp is an industry standard for street lighting, parking lots, and warehouse environments. Its universal burning position provides maximum flexibility for various fixture designs.
Specs
| Product Code | 85377 (LU250/H/ECO) |
|---|---|
| Wattage | 250W |
| ANSI Code | S50 |
| Base Type | E39 Mogul Screw-In |
| Bulb Shape | ED18 Tubular |
| Initial Lumens | 28,000 Lm |
| Mean Lumens | 25,200 Lm |
| Color Temp / CRI | 2100K | 22 CRI |
| Rated Life | 24,000 Hours |
| Burn Position | Universal |
| Dimensions | 9.75in (MOL) x 2.25in (DIA) |
Key Benefits
- High Luminous Efficacy: Delivers significant brightness (28,000 lumens) for high-ceiling and outdoor applications.
- Universal Operating Position: Can be installed in any orientation without affecting performance or lifespan.
- Durable Construction: Rated for both open or enclosed fixtures, providing versatility for various luminaire types.
- Long Maintenance Cycles: 24,000-hour life reduces replacement costs and labor in hard-to-reach areas.
Risk of Electric Shock & Fire:
- Turn power off before inspection, installation, or removal.
- Keep combustible materials away from the lamp during operation.
- Do not exceed rated voltage or use if the outer glass is scratched or broken.
- Use in a fixture rated for this specific product (ANSI S50).
- UV Radiation: A damaged lamp emits UV radiation which may cause eye/skin injury. If the bulb breaks, turn off power immediately and replace the lamp.
