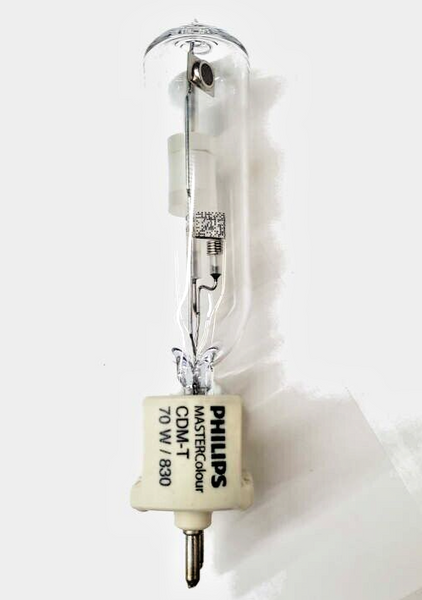

Philips Master Colour CDM-T 70W/830 G12 196996 – 70W | 3000K Warm White | CRI 81 | ANSI M139/E | G12 Bi-Pin Ceramic

The Philips Master Colour CDM-T 70W/830 G12 196996 is a 70W 3000K Warm White CDM-T Ceramic Metal Halide — T6 Tubular lamp, CRI 81, ANSI M139/E, G12 Bi-Pin Ceramic, 12,000 hours rated life. Enclosed Luminaires Only. Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear. UPC: 928082305125. MPN: CDM70-T6-3000K G12.

Quick Specs

• Brand: Philips
• Series: Philips MasterColor CDM-T
• Philips Order Code: 196996
• Manufacturer Part Number: CDM70-T6-3000K G12
• UPC: 928082305125
• ANSI Code: M139/E
• Lamp Type: CDM-T Ceramic Metal Halide — T6 Tubular
• Wattage: 70W
• Color Temperature: 3000K Warm White
• CRI: 81
• Rated Average Life: 12,000 hours
• Base Type: G12 Bi-Pin Ceramic
• Overall Length / Diameter (MOL): 3.94in x DIA 0.75in
• Fixture Compatibility: Enclosed Luminaires Only
• Start Type: Requires thermally protected CMH/CDM ballast.
• Mercury Content: Contains mercury — dispose per local regulations.

Product Overview

The Philips Master Colour CDM-T 70W/830 G12 196996 is a 70W 3000K Warm White CDM-T Ceramic Metal Halide — T6 Tubular for commercial, retail, and high-CRI architectural lighting. CRI 81 — Rated life: 12,000 hours. Enclosed Luminaires Only.

Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear. Contains mercury — dispose per local regulations.

Applications

• Commercial and industrial CDM lighting – Commercial, retail, and high-cri architectural lighting.
• Retrofit and maintenance replacement – Verify ANSI code, wattage, and base type before ordering. Requires thermally protected CDM control gear.

Safety and Installation

• Thermally protected ballast required. Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear.
• Fixture: Enclosed Luminaires Only.
• Allow warm-up time: 2–4 minutes for full output.
• Hot restrike: Allow 5–10 minutes after switching off before restarting.
• UV radiation: Use only in fixtures with UV-protective shielding.
• Mercury disposal: Contains mercury — dispose per local lamp recycling regulations.

Ordering Information

• Brand: Philips
• Series: Philips MasterColor CDM-T
• Philips Order Code: 196996
• ANSI Code: M139/E
• UPC: 928082305125
• Wattage: 70W
• Base: G12 Bi-Pin Ceramic
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

Compliance

• Contains mercury — dispose per local lamp recycling regulations.
• Verify RoHS and Prop 65 compliance with Philips specification sheet.

ADL Supply recommends confirming all specifications with the Philips product data sheet prior to installation.
