Product Overview
Satco Adjustable LED Vapor Tight Fixture - 20W 4000K Cool White, Gray, IP65, 120-277V
Quick Overview: The Satco Nuvo 65-172 Adjustable LED Vapor Tight Fixture delivers bright, neutral illumination for maximum visibility in demanding environments. This 20W, 2150-lumen fixture features a 90° adjustable head, IP65 protection against dust and water jets, and universal 120-277V input. Perfect for commercial, industrial, and exterior applications where reliable, aimable cool white light in harsh conditions is essential for safety and productivity.
Product Description
The Satco Adjustable Vapor Tight LED Fixture in 4000K Cool White combines rugged durability with crisp, alert lighting. Its robust polycarbonate housing and fully sealed IP65 design provide superior protection in wet, damp, or dusty locations. The pivoting head allows for 90° of adjustment in multiple increments, enabling perfect light placement for task lighting and area illumination. With 50,000 hours of rated life and operation from -40°F to +113°F, this fixture offers reliable, high-quality neutral white illumination for workshops, warehouses, loading docks, and parking facilities.
Key Features & Benefits
- IP65 Rated & Wet Location Certified: Completely dust-tight and protected against low-pressure water jets. cULus listed for wet locations, ensuring reliability outdoors and in damp interiors.

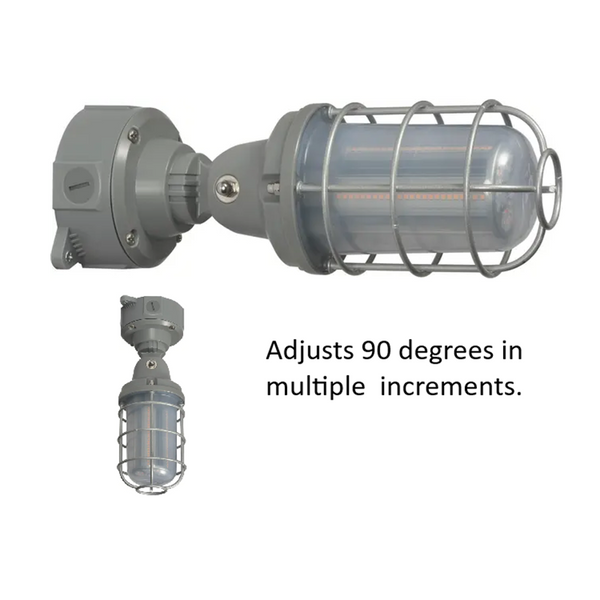

- 90° Adjustable Head: Pivots in multiple increments for precise aiming, allowing you to direct light exactly where it's needed for tasks or safety.
- Crisp Cool White Illumination: 4000K color temperature provides bright, neutral light that enhances visibility, reduces eye strain, and is ideal for task-oriented environments.
- High-Efficiency Performance: 20W LED delivers 2150 lumens at 107.5 lm/W, effectively replacing traditional 100W+ sources for significant energy savings.
- Extreme Environment Ready: Operates in temperatures from -40°C to +45°C (-40°F to +113°F) for year-round, all-climate reliability.
- Universal Voltage Input: 120-277V auto-sensing driver simplifies installation across all commercial and industrial electrical systems without extra parts.
- Durable Polycarbonate Construction: Impact-resistant and corrosion-proof gray housing ensures long-term reliability with minimal maintenance.
- 5-Year Warranty: Backed by Satco's comprehensive warranty for assured quality and peace of mind.
Detailed Specifications
| Specification | Detail |
|---|---|
| Wattage | 20W |
| Light Output (Lumens) | 2150 lm |
| Efficacy | 107.5 lm/W |
| Color Temperature | 4000K (Cool White / Neutral White) |
| CRI (Color Rendering Index) | 80+ |
| Input Voltage | 120–277V AC (Universal) |
| Power Factor | ≥ 0.91 |
| Rated Lifespan | 50,000 hours |
| Housing Material & Finish | Polycarbonate, Gray |
| Fixture Shape | Round |
| Adjustability | 90° Pivot, Multiple Increments |
| Ingress Protection (IP) Rating | IP65 (Dust-tight, Jet Water Protected) |
| Operating Temperature | -40°C to +45°C (-40°F to 113°F) |
| Mounting | Surface Mount (Adjustable Extension: 10.2" to 12.4") |
| Dimensions (L x W x H) | 12.8 in x 4.72 in x 4.72 in |
| Weight (Each) | 2.65 lbs |
| Certifications & Listings | cULus (Wet Location), RoHS Compliant, FCC, CA Title 20 Exempt |
| Dimmable | No |
| Model / Product Number | SATCO S3821 (Internal: 65-172) |
| UPC Code | 045923671722 |
Ideal Applications
- Industrial Workshops & Manufacturing Facilities
- Warehouses & Distribution Centers (Aisle lighting, above workstations)
- Auto Repair Shops & Service Bays
- Parking Garages & Loading Docks
- Commercial Building Exteriors & Utility Areas
- Food Preparation Areas (Non-wash-down) & Back-of-House
What’s Included in the Box
- 1 x Satco Adjustable LED Vapor Tight Fixture (4000K)
- Mounting Hardware
- Installation & Warranty Guide
Helpful Installation & Usage Tips
- Task Lighting Focus: Use the 90° adjustment to aim the bright 4000K light directly onto work surfaces, machinery, or safety pathways for optimal visibility.
- For Wall Mounting: The fixture extends from approximately 10.2" to 12.4" from the wall. This is ideal for mounting on pillars, under eaves, or on equipment where space is limited.
- Maintain the IP65 Seal: Always use proper vapor-tight conduit fittings and ensure the housing seal is secure to preserve dust and water resistance.
- Safety First: Always disconnect power at the circuit breaker before installation or servicing.
- Productivity Retrofit: An excellent direct replacement for old, inefficient fluorescent or HID fixtures in workshops and warehouses, providing brighter, more focused light.
