Product Overview
Satco Nuvo Jelly Jar Adjustable LED Vapor Tight Fixture - 20W, 5000K, Gray, IP65, 120-277V
Quick Overview: The Satco Adjustable LED Vapor Tight Fixture (Model S3822) combines rugged, wet-location durability with versatile, precise illumination. This 20W, 2200-lumen fixture features a 90° adjustable head, IP65 protection against dust and water jets, and universal 120-277V input. Perfect for commercial, industrial, and exterior applications where reliable, aimable light in harsh conditions is essential.
Product Description
The Satco Adjustable Vapor Tight LED Fixture is engineered for performance in demanding environments. Its robust polycarbonate housing and fully sealed design (IP65) provide superior protection in wet, damp, or dusty locations. The pivoting head allows for 90° of adjustment in multiple increments, enabling precise light placement. With 50,000 hours of rated life, 5000K natural daylight output, and operation from -40°F to +113°F, this fixture delivers reliable, high-quality illumination for warehouses, loading docks, car washes, parking garages, and more.
Key Features & Benefits
- IP65 Rated & Wet Location Certified: Completely dust-tight and protected against low-pressure water jets. cULus listed for wet locations.

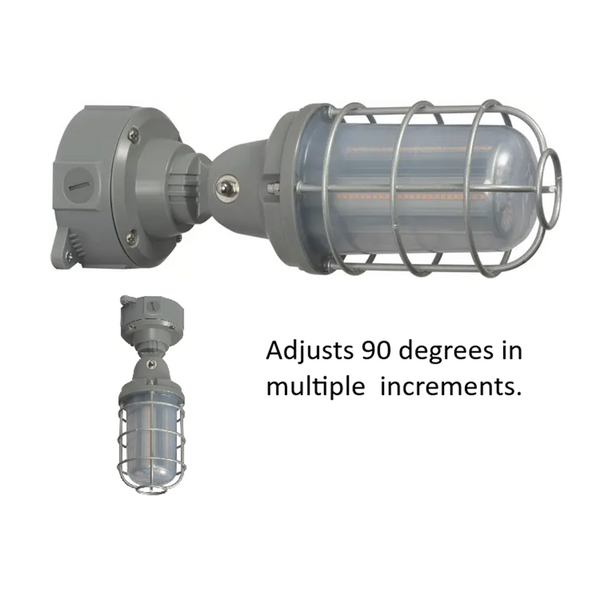

- 90° Adjustable Head: Pivots in multiple increments for precise aiming and optimal light distribution where you need it.
- High-Efficiency Performance: 20W LED delivers 2200 lumens, effectively replacing traditional 100W+ sources for significant energy savings.
- Extreme Environment Ready: Operates in temperatures from -40°C to +45°C (-40°F to +113°F).
- Universal Voltage Input: 120-277V auto-sensing driver simplifies installation across commercial and industrial sites.
- Durable Polycarbonate Construction: Impact-resistant and corrosion-proof housing ensures long-term reliability in harsh conditions.
- 5-Year Warranty: Backed by Satco's comprehensive warranty for assured quality and peace of mind.
Detailed Specifications
| Specification | Detail |
|---|---|
| Wattage | 20W |
| Light Output (Lumens) | 2200 lm |
| Efficacy | 110 lm/W |
| Color Temperature | 5000K (Natural Daylight) |
| CRI (Color Rendering Index) | 80+ |
| Input Voltage | 120–277V AC (Universal) |
| Power Factor | ≥ 0.95 |
| Rated Lifespan | 50,000 hours |
| Housing Material & Finish | Polycarbonate, Gray |
| Adjustability | 90° Pivot, Multiple Increments |
| Ingress Protection (IP) Rating | IP65 (Dust-tight, Jet Water Protected) |
| Operating Temperature | -40°C to +45°C (-40°F to 113°F) |
| Mounting | Surface Mount (Adjustable Extension: 10.2" to 12.4") |
| Dimensions (L x W x H) | 12.8 in x 4.72 in x 4.72 in |
| Weight (Each) | 2.65 lbs |
| Certifications & Listings | cULus (Wet Location), RoHS Compliant, FCC |
| Dimmable | No |
| Model / Product Number | SATCO S3822 (Internal: 65-173) |
| UPC Code | 045923671739 |
Ideal Applications
- Warehouses & Industrial Facilities (Aisle lighting, above workstations)
- Parking Garages & Loading Docks
- Car Washes & Automotive Service Bays
- Food & Beverage Processing Areas (Non-wash-down)
- Commercial Building Exteriors & Covered Walkways
- Utility Areas, Mechanical Rooms, & Damp Corridors
What’s Included in the Box
- 1 x Satco Adjustable LED Vapor Tight Fixture
- Mounting Hardware
- Installation & Warranty Guide
Helpful Installation & Usage Tips
- Aim After Mounting: Install the fixture securely, then adjust the head to the desired angle for optimal coverage.
- For Wall Mounting: The fixture extends from approximately 10.2" to 12.4" from the wall, providing flexibility for different mounting scenarios.
- Seal Conduit Entries: Use appropriate vapor-tight conduit fittings to maintain the IP65 seal at all entry points.
- Safety First: Always disconnect power at the circuit breaker before installation or servicing.
- Perfect Retrofit: An excellent upgrade for old, inefficient fluorescent or HID vapor-tight fixtures in demanding environments.
