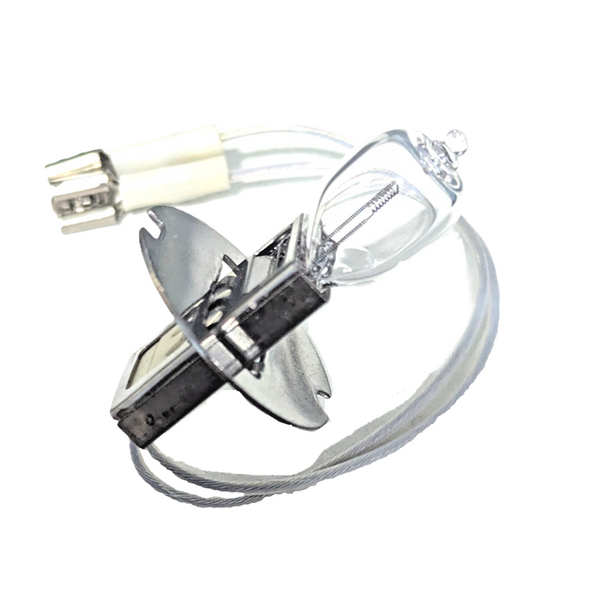

OSRAM 64319 A 45-15 FAA-Approved Airfield Halogen Lamp
6.6A Current Controlled | 45W PK30d Base | 3000K | J1/86 | NAED 59010
Product Overview
High-performance 6.6 amp current-controlled halogen lamp designed for critical airfield lighting applications. Features precision C-8 filament alignment, flicker-free operation, and FAA approval for use with OEM airfield fixtures.
Technical Specifications
Electrical Characteristics
| Nominal Wattage | 45W |
|---|---|
| Nominal Voltage | 6.8V |
| Nominal Current | 6.6A |
| Current Type | AC |
| LIF Code | J1/86 |
Optical Performance
| Nominal Luminous Flux | 800 lm |
|---|---|
| Luminous Efficacy | 17 lm/W |
| Color Temperature | 3000K |
| Color Rendering Index (CRI) | Ra 100 |
| Light Center Length (LCL) | 20.0 mm (0.787") |
Mechanical Specifications
| Base Type | PK30d (Female Flat Connectors) |
|---|---|
| Bulb Shape | T4 |
| Filament | C-8 |
| Bulb Diameter | 13.5 mm (0.531") |
| Maximum Overall Length | 50.0 mm (1.969") |
| Length (excl. base pins) | 32.0 mm |
| Product Weight | 14.50 g |
| Burning Position | s90 (Vertical ±90°) |
Lifetime & Environmental
| Nominal Lifetime | 1,500 hours |
|---|---|
| Mercury Content | Mercury-free |
| Country of Origin | Mexico |
Key Features & Benefits
- FAA Approved: Certified for use with many OEM airfield fixtures
- Long Service Life: 1,500-hour rated life reduces maintenance costs
- Vibration Resistant: Durable quartz construction withstands airport environments
- IR Enhanced: Infrared radiation aids visibility in fog/low visibility and facilitates defrosting
- Mercury-Free: Environmentally friendly design
- Flicker-Free: Consistent light output without strobing effects
- Dimmable: Ability to reduce light output when needed for energy conservation
- Precision Aligned: State-of-the-art manufacturing ensures accurate filament positioning
Approved Applications
- Airport runway edge lighting
- Approach lighting systems (ALS)
- Runway centerline fixtures (L-861, L-862)
- Taxiway guidance lighting
- Threshold and runway end identification
- Stopbar and holding position lighting
- Touchdown zone lighting
- Low-visibility navigation aids
Safety & Installation Requirements
Critical Safety Notice
To prevent personal injury or property damage, halogen lamps may only be operated in suitable luminaires designed with protective mechanisms (shields, grids, etc.) to ensure that in the event of lamp bursting no parts/shards can escape and that during operation no ultraviolet radiation can escape.
Mandatory Requirements
- Install only in luminaires with protective containment grids or shields
- Display high-temperature warning signage on fixtures
- Ensure UV-blocking luminaire glass is intact
- Operate only in series circuits with compatible 6.6A constant current regulators
- Maintain s90 burning position (vertical base down ±90 degrees)
Regulatory Compliance
- FAA approved for airfield lighting applications
- EU REACH Regulation (EC) 1907/2006 compliant
- SCIP Database Reference: b8092497-ad76-46a4-8f7f-7cd4786ab142
- Contains lead (CAS 7439-92-1) - safe use instructions available upon request
Product Identification
Packaging Information
| Packaging Level | Quantity | Dimensions (L×W×H) | Gross Weight |
|---|---|---|---|
| Folding Carton (Single) | 1 | 32 × 37 × 71 mm | 22.0 g |
| Shipping Box (Case) | 100 | 341 × 191 × 154 mm | 2,341 g |
Manufactured by OSRAM GmbH / LEDVANCE
Subject to change without notice. Errors and omissions excepted. Always ensure use of the most recent product release and datasheet.
