Product Overview

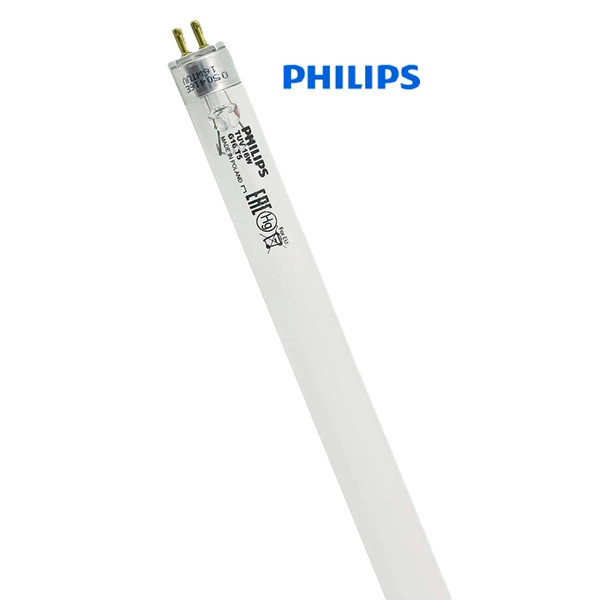

Philips TUV TL Mini 16W UV-C Germicidal Lamp - G5 Base, 253.7nm Disinfection
Professional UV-C Disinfection Lamp for Water, Air & Surface Purification
The Philips TUV TL Mini 16W (8711500638694) is a compact, high-performance UV-C germicidal lamp delivering powerful short-wave UV radiation at 253.7 nm. Ideal for residential and commercial systems, its slim 16 mm T16 design enables space-efficient installation in water purifiers, HVAC air handlers, and sterilization equipment. Offers consistent UV-C output throughout its long life for reliable microbial deactivation (bacteria, viruses, mold).
Key Features & Benefits
- UV-C Output: 4.2 W at 100 hours (peak wavelength 253.7 nm, ozone-free)
- Lifespan: 9,000 hours (85% UV-C retention at end of life)
- Compact Bulb: T16 shape, 16 mm diameter
- Base: G5 double-ended bi-pin
- Mercury Content: 4.4 mg
- Protective coating for stable UV output over lifetime
Important Safety Warning: Risk Group 3 (RG3) UV Product
- Emits high-intensity UV-C radiation — can cause permanent eye/skin damage without protection.
- Use ONLY in fully enclosed, shielded fixtures — never expose directly to people, animals, or unprotected surfaces.
- Avoid eye and skin exposure to unshielded lamp.
Lamp Breakage Protocol
- Evacuate the area and ventilate for at least 30 minutes.
- Wear gloves; carefully collect fragments (do NOT use vacuum cleaner).
- Seal in a plastic bag and dispose as hazardous waste per local regulations.
Technical Specifications
Electrical
- Power: 16 W nominal (15 W consumption)
- Voltage: 43 V AC
- Current: 0.4 A
Physical
- Bulb Shape: T16 (16 mm diameter)
- Base: G5 double-ended
- Length: 302.5 mm (maximum overall)
Performance
- UV-C Output: 4.2 W @ 100 hr
- UV Output Depreciation: ~15% at end of life
- Color Code / Designation: TUV
Product Identification
| EAN / UPC | 8711500638694 |
|---|---|
| Material Number (12NC) | 928002004013 |
| Full Product Code | 871150063869427 |
| Order Name | TUV 16W FAM/10X25BOX |
Recommended Applications
- Commercial and residential water purification systems
- HVAC / in-duct air disinfection units
- Laboratory and medical sterilization equipment
- Food processing and surface sanitation
- Fish pond / aquarium water treatment
Note: For best results, use with compatible electronic ballasts designed for UV-C lamps. Always follow safety guidelines — UV-C is for enclosed professional use only.
