Product Overview

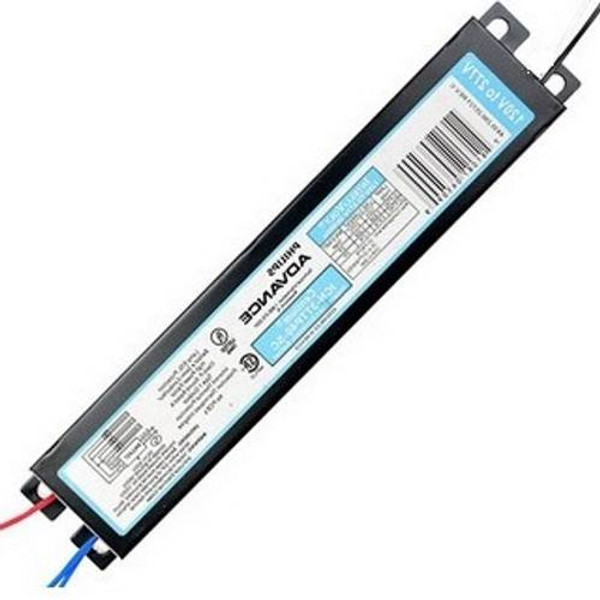

Philips Advance IOPA3P32N 3-Lamp T8 Electronic Ballast
High-efficiency instant start electronic ballast with IntelliVolt technology. Operates 2-3 T8 lamps across 120-277V with superior energy efficiency, cold weather performance, and parallel lamp operation.
Quick Specs
- Brand: Philips Advance
- Model: IOPA3P32N
- Type: Electronic Instant Start Ballast
- Voltage: 120-277V IntelliVolt
- Lamp Capacity: 2-3 Lamps
- B.E.F.: Up to 2.89
- THD: Less than 15%
- Power Factor: Greater than 0.98
Product Overview
The Philips Advance IOPA3P32N electronic ballast delivers professional-grade performance for T8 fluorescent lighting systems. Featuring IntelliVolt automatic voltage adjustment technology, this instant start ballast seamlessly operates across 120-277V input, simplifying inventory management and installation. The high Ballast Efficacy Factor (B.E.F.) of up to 2.89 delivers exceptional energy efficiency with total harmonic distortion below 15% and power factor exceeding 0.98.
Engineered for demanding commercial and industrial environments, this ballast provides reliable cold weather starting down to -20°F (-29°C). The parallel lamp connection ensures remaining lamps continue operating if individual lamps fail, minimizing maintenance disruptions. With striation-reduction technology, this ballast delivers smooth, flicker-free illumination ideal for spaces with long burn hours.
Why Choose This Ballast
- IntelliVolt Technology: Automatic voltage sensing from 120-277V eliminates voltage-specific inventory
- Superior Efficiency: B.E.F. up to 2.89 delivers 30% energy savings versus magnetic ballasts
- High Power Quality: Less than 15% THD and greater than 0.98 power factor protect electrical systems
- Cold Weather Ready: Reliable starting at -20°F for refrigeration and outdoor applications
- Parallel Operation: Individual lamp circuits prevent total fixture failure
- Instant Start: Immediate ignition ideal for spaces with extended operating hours
- ASHRAE 90.1 Compliant: Meets energy standards and contributes to LEED certification
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Philips Advance |
| Model Number | IOPA3P32N |
| Ballast Type | Electronic Instant Start |
| Lamp Capacity | 2-3 Lamps |
| Input Voltage | 120-277V (IntelliVolt Auto-Sensing) |
| Ballast Efficacy Factor | Up to 2.89 |
| Total Harmonic Distortion | Less than 15% |
| Power Factor | Greater than 0.98 |
| Circuit Type | Parallel |
| Minimum Start Temp | -20°F (-29°C) |
| Lead Length | Pre-cut 24-43 inches |
| Special Features | Striation-reduction technology |
Dimensions
| Dimension | Measurement |
|---|---|
| Length | 9.5 inches |
| Width | 1.3 inches |
| Height | 1.0 inches |
| Profile | Compact Low-Profile |
Compatible Lamp Types
This Advance IOPA3P32N ballast operates the following T8 fluorescent lamps (2-3 lamps):
- F17T8: 24-inch 17W T8 lamps
- F25T8: 36-inch 25W T8 lamps
- F25T8/ES: 36-inch 25W energy-saving T8 lamps
- F28T8/ES: 48-inch 28W energy-saving T8 lamps
- F32T8/ES: 48-inch 32W energy-saving T8 lamps
- F32T8: 48-inch 32W standard T8 lamps
- F40T8: 60-inch 40W T8 fluorescent lamps
Applications
- Commercial office buildings
- Industrial manufacturing facilities
- Cold storage and refrigeration warehouses
- Retail store lighting systems
- Healthcare facility fluorescent fixtures
- Educational institution lighting
- Outdoor protected fixtures in cold climates
- ASHRAE 90.1 compliance projects
- LEED certification contributions
Replacing Your Current Ballast?
The Philips Advance IOPA3P32N is an ideal replacement for:
- Magnetic T12 ballast systems (delivers 30% energy savings)
- Standard efficiency electronic T8 ballasts
- Failed instant start ballasts in 2 or 3-lamp T8 fixtures
- Voltage-specific ballasts when universal voltage is needed
Before Ordering - Verify:
- Fixture accepts 9.5" x 1.3" x 1.0" ballast enclosure
- Existing lamps are compatible T8 types listed above
- Input voltage falls within 120-277V range
- Instant start wiring configuration is present
- Application requires cold weather starting capability
Ordering Information
| Item | Details |
|---|---|
| Model | IOPA3P32N |
| Description | Advance 3-Lamp T8 Electronic Instant Start Ballast |
| Voltage | 120-277V IntelliVolt |
| Start Type | Instant Start |
Compliance and Certifications
| Certification | Status |
|---|---|
| UL Type CC | Safety Rating |
| ASHRAE 90.1 | Compliant |
| LEED | Contributes to Certification |
Installation Notes
- Parallel lamp connection keeps remaining lamps lit if one fails
- Pre-cut leads (24-43") simplify wiring installation
- Install in accordance with National Electric Code requirements
- Verify instant start lampholder configuration
- IntelliVolt technology automatically adjusts to line voltage
Contact ADL Supply for bulk pricing and project quotes. This Philips Advance ballast is stocked for immediate shipment to support your commercial lighting retrofit and maintenance needs.
