Product Overview

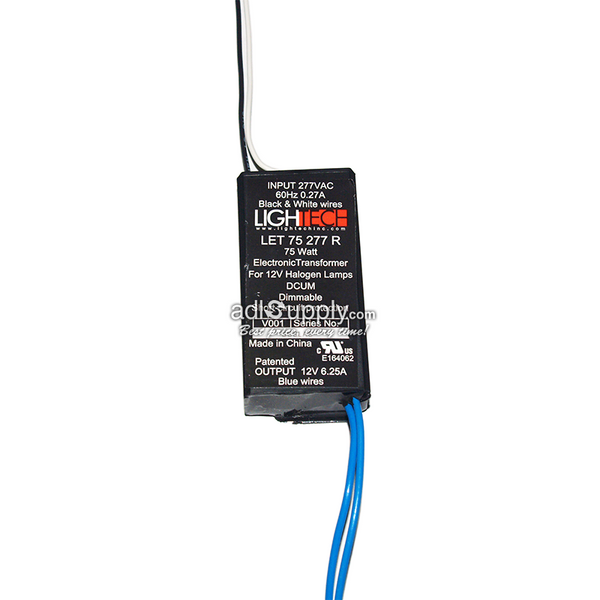

GE 66954 Lightech LET75 — 75W Halogen Electronic Step-Down Transformer, 277V to 12V, Trailing Edge Dimmable
The GE 66954 Lightech LET75 is a 75-watt halogen electronic step-down transformer from GE Lighting, designed to convert 277V line voltage to 12V low-voltage output for low-voltage halogen and compatible LED lighting systems in landscape, retail, and commercial display applications. Trailing edge (ELV) dimmable, 95% efficiency, 0.95 power factor, 11.5V output voltage, 35-75W output wattage range, 0°C to +50°C ambient operating range, 90°C maximum case temperature, aluminum housing. UL Listed E164062. Verify input voltage, wattage range, and dimming compatibility before ordering.
|
Wattage
75W
Max Output
|
Input / Output
277V → 12V
Step-Down
|
Dimming
Trailing Edge
ELV Compatible
|
Efficiency
95%
PF 0.95
|
Output Range
35–75W
Min–Max Load
|
Technical Specifications
| Brand | GE Lighting — Lightech |
| GE Order Code | 66954 |
| Description | LET 75W 12V, 277V Input |
| Device Type | Halogen Electronic Step-Down Transformer |
| Input Voltage | 277V, 50/60Hz |
| Output Voltage | 11.5V |
| Output Wattage Range | 35–75W |
| Power Factor Correction | 0.95 |
| Efficiency | 95% (at full load) |
| Dimmability | Trailing Edge (ELV) |
| Ambient Temperature Range | 0°C to +50°C |
| Maximum Case Temperature | 90°C |
| Wiring Diagram Reference | Example H |
| Lead Exit Type | Side |
| Input Wire Length | 7.1" |
| Output Wire Length | 9.1" |
| Wire Colors | Input: Black/White (L/N, 277Vac); Output: Blue (12V-) |
| Dimensions | 2.52" L x 1.34" W x 0.83" H |
| Weight | 0.25 lb |
| Housing Material | Aluminum (Silver) |
| UL Listing | E164062 |
Product Overview
The GE 66954 Lightech LET75 is a 277V-input electronic step-down transformer converting line voltage to 12V low-voltage output for halogen MR16, MR11, and other low-voltage lamp systems, as well as compatible constant-voltage 12V LED fixtures. This is the 277V input version within GE's 75W Lightech transformer family — for commercial circuits wired at 277V from a 480/277V three-phase distribution system, common in retail, commercial, and landscape lighting installations served by commercial electrical infrastructure.
GE Lightech transformers use Auto-Thermal Regulation to proportionally reduce output voltage above 90°C case temperature, with a self-preserving 125°C thermal cut-off for protection against sustained overheating. Field-effect transistor design delivers higher efficiency and longer service life than older bipolar transistor transformers. This unit supports trailing edge (ELV) dimming.
Important: This 277V model has a higher minimum load requirement (35W) than the standard 120V versions in this family (20W minimum) — confirm your total connected load meets this minimum to ensure stable operation, especially when dimming.
Compatible Applications
- Landscape lighting on commercial 277V circuits — Step-down power for low-voltage halogen landscape and accent fixtures.
- Retail and commercial display lighting — 12V low-voltage power for showcase, accent, and display lighting on 277V commercial circuits.
- Dimmable low-voltage installations — Trailing edge (ELV) dimmer compatible for variable light level control.
Before Ordering — Verify
- Input Voltage: This transformer requires a 277V input circuit — not compatible with standard 120V circuits. Confirm your circuit voltage before ordering.
- Total Connected Load: Confirm total connected lamp wattage falls within the 35–75W range — note this minimum is higher than the standard 120V version (20W minimum).
- Dimmer Compatibility: If dimming, confirm your dimmer is a trailing edge (ELV) type.
- Physical Fit: Confirm 2.52" x 1.34" x 0.83" fits within your fixture's transformer compartment.
Safety and Installation Guidelines
- Disconnect power before installing or servicing.
- 277V Circuit Only: Confirm circuit voltage matches before connecting — do not install on 120V circuits.
- Wire per the diagram printed on the transformer label.
- Do not exceed the rated output wattage range and confirm the 35W minimum load is met. Overloading or underloading can cause overheating, instability, or premature failure.
- Install in accordance with the National Electric Code and local electrical codes.
Compliance
- UL Listed E164062.
- Verify additional CSA, FCC, or RoHS compliance details with the GE manufacturer specification sheet prior to use in regulated installations.
Ordering Information
- Brand: GE Lighting — Lightech
- GE Order Code: 66954
- Input / Output: 277V / 12V (11.5V actual)
- Output Range: 35–75W
- Housing: Aluminum, Silver
- Packaging: Sold individually.
- Case quantities and bulk pricing: Contact ADL Supply for volume orders.
For wholesale pricing, bulk availability, or help confirming the correct replacement transformer, contact ADL Supply at 1-800-235-3489.
