Product Overview

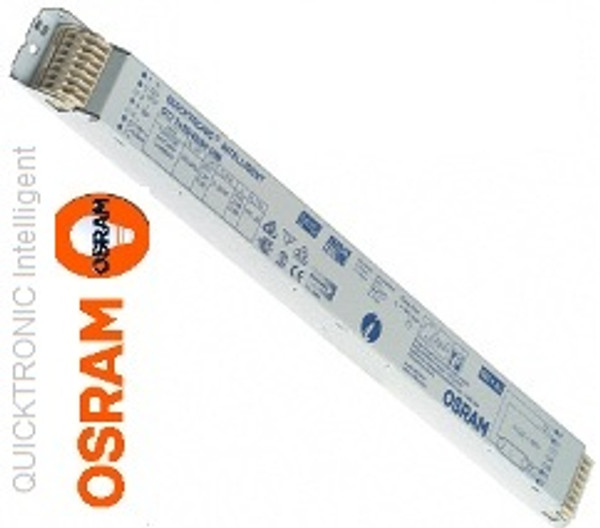

Osram Intelligent QTi Dimmable 58 Watt 220V 1 Lamp Electronic Fluorescent Ballast
Operates the Following Lamps:
- 1 x L 58W
Additional Information:
- Control via the 1-10 V interface
- Osram Product code: 4050300870908
- Nominal voltage 220-240V
- Mains frequency 50…60 Hz
- DC voltage 176…254 V
- Operating frequency 45…70 kHz ±10%, 50/60Hz
- Dimension (L) 360mm
- UL Type 1 Outdoor
- Supply voltage: 220 - 240 V Line frequency: 0, 50 - 60 Hz Line voltage: 198 - 264 V
- Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
- Same luminous flux with direct and alternating current The battery voltage may drop to 154 V.
- Ignition must take place above 198 V Digitally controlled preheating
- Perfect lamp starting for applications with motion sensors, lamp start within 0.6 s
- Optimum preheating in any dimmer setting
- Dimming range: 1 to 100 % luminous flux Very high energy efficiency
