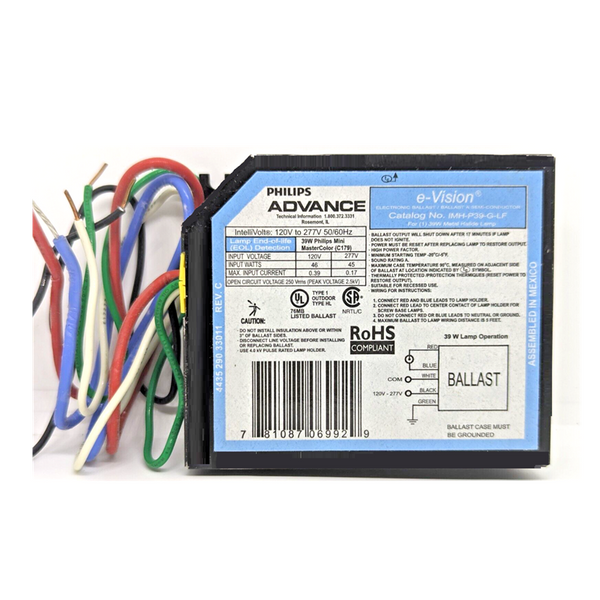

Philips Advance E-Vision IMH-P39-G-LF Electronic Metal Halide Ballast – 35-39W C179/M179 | Intellivolt 120-277V | LF Series | EOL Detection

The Philips Advance E-Vision IMH-P39-G-LF is a premium 35-39 watt electronic metal halide ballast delivering reliable pulse-start performance for ANSI C179/M179 ceramic metal halide lamps. Intellivolt 120-277V auto-ranging input, end-of-life (EOL) lamp detection, resettable thermal protection, aluminum housing for superior heat dissipation, and LF-series side-exit lead configuration make this the specification-grade choice for retail track lighting, commercial downlighting, boutique displays, and any application where ballast reliability, safety features, and universal voltage compatibility are required. Catalog No. IMH-P39-G-LF.

Quick Specs

• Brand: Philips Advance
• Series: E-Vision LF
• Catalog Number: IMH-P39-G-LF
• Ballast Type: Electronic Metal Halide Pulse Start
• Wattage Range: 35W-39W (46W system watts max)
• ANSI Compatibility: C179 / M179
• Input Voltage: Intellivolt 120V or 277V (50/60Hz)
• Ballast Factor: 1.0 (Normal Light Output)
• Power Factor: >0.9 (High)
• Minimum Starting Temperature: -20°C / -4°F
• Maximum Case Temperature: 90°C
• Maximum Distance to Lamp: 5 feet
• Lead Length: 9 inches (228mm)
• Dimensions: 3.8" L x 3" W x 2.6" D (97 x 76 x 66mm)
• Ignition Pulse: 4 kV maximum
• Special Features: EOL Detection, Resettable Thermal Protection, Aluminum Housing, Side Exit Leads with Mounting Feet

Product Overview

The Philips Advance E-Vision IMH-P39-G-LF (Catalog No. IMH-P39-G-LF) delivers reliable, feature-rich electronic ballast performance for 35-39W pulse-start ceramic metal halide lamps. This LF-series ballast supports ANSI C179 and M179 lamp codes with Intellivolt 120-277V auto-ranging input, eliminating voltage selection errors and simplifying inventory management across commercial facilities.

Engineered for professional installations, this replacement ballast features integrated end-of-life (EOL) detection that removes power from lamps when they behave erratically or fail to ignite — preventing hazardous lamp cycling and enhancing fixture safety. Resettable thermal protection and a robust aluminum housing provide superior heat transfer and durability compared to plastic-encased alternatives. With high power factor (>0.9) and efficient electronic operation, this ballast delivers quiet, energy-conscious performance in retail, hospitality, and commercial lighting applications.

The LF configuration includes side-exit leads and integrated mounting feet for streamlined installation in track heads, recessed fixtures, pendant systems, and architectural lighting applications. Compatible with ceramic metal halide lamps requiring C179 or M179 pulse-start ballasts, this unit supports flexible specification across boutique retail, galleries, showrooms, and upscale commercial environments.

Why Choose This Product

• Intellivolt 120-277V auto-ranging: Universal input voltage eliminates selection errors and simplifies inventory — one ballast fits multiple facility voltage configurations.
• EOL detection safety feature: Automatically removes power from erratic or failed lamps — prevents hazardous lamp cycling and enhances fixture safety in occupied spaces.
• Resettable thermal protection: Protects ballast from overheating — automatically resets after cool-down, reducing service calls and replacement costs.
• Aluminum housing construction: Superior heat transfer and durability compared to plastic-encased ballasts — enhances reliability in demanding commercial applications.
• High power factor (>0.9): Efficient power utilization reduces electrical demand and supports energy-conscious facility management.
• Ballast factor 1.0: Delivers rated lamp lumens without over- or under-driving — ensures consistent light output and lamp life.
• LF series with side exit leads: Streamlined installation in track, recessed, and pendant fixtures with integrated mounting feet and 9-inch leads.
• Wide temperature operation: Starts reliably down to -20°C / -4°F — suitable for unheated warehouses, outdoor fixtures, and cold-storage applications.
• Dual ANSI compatibility (C179/M179): Supports both ceramic metal halide lamp codes — broader application flexibility than single-code ballasts.
• Auto-shutdown safety: Ballast output shuts down after 20 minutes if lamp fails to ignite — prevents energy waste and component stress.

Technical Specifications

Applications

The Philips Advance E-Vision IMH-P39-G-LF is specified for commercial lighting applications where reliable pulse-start metal halide performance with advanced safety features is required:

• Retail track lighting and boutique displays – Compact LF form factor and compatibility with C179/M179 lamps support adjustable track heads in fashion retail, jewelry stores, and luxury merchandise environments.
• Commercial downlighting – Reliable electronic operation and aluminum housing support recessed fixtures in lobbies, corridors, and professional spaces.
• Art galleries and museum accent lighting – EOL detection and thermal protection enhance safety when illuminating valuable artwork and artifacts with color-critical ceramic metal halide sources.
• Hospitality and restaurant lighting – Quiet operation and reliable performance support ambient and accent lighting in hotels, fine dining, and guest areas.
• Architectural pendant and decorative fixtures – Side-exit lead configuration simplifies installation in suspended and decorative lighting systems.

Installation & Compatibility Notes

Confirm the following before installing this Philips Advance E-Vision IMH-P39-G-LF ballast:

• Lamp compatibility — ANSI C179 or M179: Verify the installed lamp carries C179 or M179 ANSI designation for 35-39W pulse-start ceramic metal halide. Do not install with incompatible lamp codes.
• Input voltage — Intellivolt 120-277V: Auto-ranging input accepts 120V or 277V (50/60Hz) — verify facility voltage before installation.
• Maximum case temperature: 90°C — ensure adequate fixture ventilation to prevent thermal shutdown.
• Maximum distance to lamp: 5 feet — position ballast within specified lead length for reliable ignition.
• Lead connection: Connect the red lead to the center terminal of screw-base lamps (E26/E39) for proper polarity. For PGJ5 or other bi-pin bases, follow lamp-specific wiring diagrams.
• Lamp failure response: Ballast will shutdown after 20 minutes if lamp fails to ignite — cycle power off/on after lamp replacement to reset.
• EOL detection: Ballast removes power from lamps that behave erratically or reach end-of-life — replace lamp and cycle power to restore operation.
• Power cycling: Always cycle power off, then on, after replacing the lamp to ensure proper ballast initialization.

Ordering Information

• Brand: Philips Advance
• Series: E-Vision LF
• Catalog Number: IMH-P39-G-LF
• Ballast Type: 35-39W Electronic Metal Halide Pulse Start
• ANSI Compatibility: C179 / M179
• Input Voltage: Intellivolt 120-277V
• Configuration: LF — Side Exit Leads with Mounting Feet
• European Version: 220V HID replacement ballast also available — contact ADL Supply for international specifications.
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

Compliance and Safety

• Universal Code Compliance: Meets applicable North American electrical and safety standards for commercial electronic ballasts.
• Resettable Thermal Protection: Integrated protection prevents damage from overheating — automatically resets after cool-down.
• End-of-Life (EOL) Detection: Removes power from erratic or failed lamps to prevent hazardous cycling and enhance fixture safety.
• Auto-shutdown on Ignition Failure: Ballast output shuts down after 20 minutes if lamp fails to ignite — prevents energy waste and component stress.
• High Power Factor (>0.9): Efficient power utilization supports energy-conscious facility management and electrical code compliance.
• Aluminum Housing: Superior heat transfer and durability compared to plastic-encased alternatives.
• Wide Temperature Operation: Reliable starting down to -20°C / -4°F supports unheated and outdoor applications.
• Verify listing marks: Confirm UL, cUL, or other applicable certification marks with manufacturer specification sheet prior to specification.
• Verify RoHS/REACH compliance: Confirm environmental compliance status with manufacturer specification sheet.

ADL Supply recommends confirming all applicable compliance data, wiring diagrams, and installation requirements with the Philips Advance official product data sheet prior to specification or installation.
