Product Overview

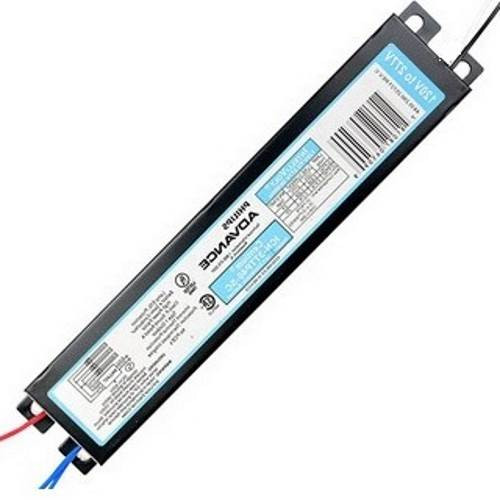

Philips Advance IOPA3P32SC 3-Lamp T8 Electronic Ballast
Technical Specifications
Electrical Properties
- Voltage:
- 120-277V AC
- Ballast Factor:
- 0.87-0.98
- THD:
- <15%
- Efficiency:
- B.E.F. up to 2.89
Physical Properties
- Dimensions:
- 9.5"L x 1.3"W x 1.0"H
- Weight:
- 1.2 lbs
- Temperature Range:
- -20°F to 140°F
Supported Lamp Types
Standard T8 Lamps
- F17T8 (2ft)
- F25T8 (3ft)
- F32T8 (4ft)
- F40T8 (5ft)
Energy-Saving Models
- F25T8/ES
- F28T8/ES
- F32T8/ES
Core Features
- Instant Start Technology: Immediate lamp ignition with no warm-up delay
- Universal Voltage: 120-277V automatic adjustment (IntelliVolt system)
- Cold Weather Operation: Reliable starts at -20°F (-29°C)
- Striation Control: Reduced lamp flicker and dark spots
Installation Details
Configuration
- Parallel lamp wiring
- 24"-43" pre-cut leads
- Junction box mounting
Safety Ratings
- UL Type CC Certified
- RoHS Compliant
- IP20 Protected
Compliance Note: Meets ASHRAE 90.1 & LEED requirements. Professional installation required. 30% energy savings compared to magnetic ballast systems.
