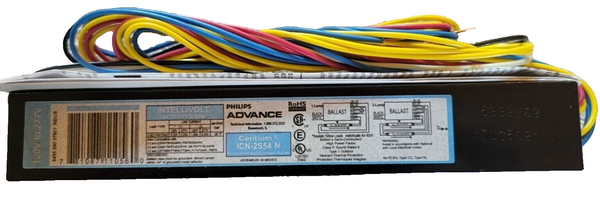

PHILIPS ADVANCE ICN-2S54-N | Centium T5HO Ballast | 120V-277V | 2-Lamp F54T5HO

The Philips Advance Centium ICN-2S54-N is a high-performance electronic ballast engineered for the reliable operation of (2) F54T5HO High Output fluorescent lamps. Featuring IntelliVolt technology, this ballast provides a flexible solution for commercial environments by operating on any input voltage from 120V to 277V. Its Programmed Start ignition is specifically designed to maximize lamp life in applications with frequent switching cycles, such as those integrated with occupancy sensors. Housed in a low-profile metal casing, the ICN-2S54-N is the industry standard for high-bay fixtures, vapor-tights, and office troffers where dependable, energy-efficient performance is a necessity.

Product Overview

The Philips Advance ICN2S54N is part of the Centium family, known for its ultra-reliable electrical characteristics and high efficiency. This ballast includes integrated End-of-Life (EOL) protection, which safely shuts down the circuit when a lamp reaches its failure point, preventing ballast damage and fixture discoloration. Additionally, the Auto-Restrike capability ensures that lamps restart automatically after a brief power loss or after a lamp replacement, eliminating the need for manual circuit resets. Its compact 9.5-inch length and slim 1.0-inch height make it an ideal fit for the modern, sleek fixture profiles used in commercial warehouse and retail spaces.

• Extended Lamp Life: Programmed Start heating of the lamp cathodes significantly reduces stress during ignition.
• IntelliVolt Flexibility: Universal voltage operation (120-277V) reduces inventory by replacing multiple single-voltage units.
• Superior Efficiency: High ballast factor (1.0) ensures full lumen output for F54T5HO lamps.
• Quiet & Cool: Advanced thermal management and a Class A sound rating provide silent, cool-running operation.

Technical Specifications

• Brand: Philips Advance
• Series: Centium
• Model Number: ICN-2S54-N
• Input Voltage: 120V to 277V
• Input Frequency: 50/60 Hz
• Starting Method: Programmed Start
• Number of Lamps: 1 or 2 Lamps
• Lamp Wiring: Series
• Max Case Temp: 70°C (158°F)
• Dimensions: 9.5" (L) x 1.3" (W) x 1.0" (H)
• Certifications: RoHS Compliant, UL Listed, CSA Certified

Safety & Installation Guide

• Wiring: Always refer to the wiring diagram on the ballast label. This ballast uses Series wiring for its 2-lamp configuration.
• Grounding: Ensure the ballast case is properly grounded to the fixture housing to maintain safety and reduce EMI.
• Proximity: In high-bay applications, ensure the ballast case temperature does not exceed 70°C to prevent premature failure.
• Compatibility: Use only with 54W T5HO lamps. Attempting to use T5 (28W) lamps may cause rapid lamp failure or ballast damage.

Primary Applications

• Industrial High-Bays: Warehouse and manufacturing lighting utilizing 4-lamp or 6-lamp T5HO fixtures.
• Office Lighting: Direct/Indirect architectural pendants and high-performance troffers.
• Retail: Linear strip lighting and display fixtures where high light output and color rendering are required.
• Cold Storage: Reliable starting in temperatures as low as -20°F (-29°C).
