Product Overview

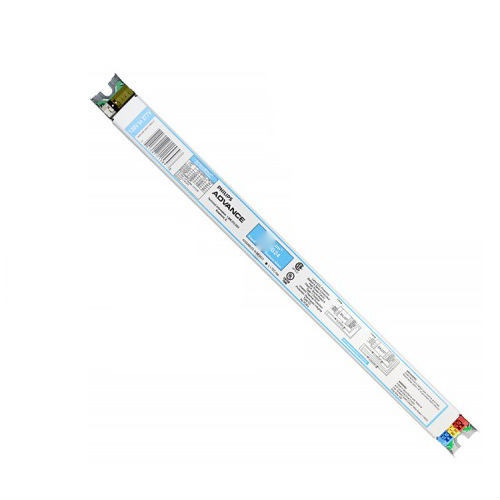

Philips Advance Centium ICN-2S54-90C-T Programmed-Start T5HO Ballast | 120-277V | (1-2) F54T5/HO
The Philips Advance Centium ICN-2S54-90C-T is a programmed-start electronic ballast for one or two F54T5/HO lamps on any supply voltage from 120V to 277V. The 90C versions of the Centium T5HO family are the ones Philips Advance offers for high-ambient-temperature installations that call for a 90°C rating. Programmed start helps extend lamp life on frequently switched circuits, and F54T5/HO lamps start down to -20°F (-29°C).
Voltage 120–277V IntelliVolt | Starting Programmed Start | Lamps 1–2 F54T5/HO | Ballast Factor 1.00–1.02 F54T5/HO | Rating 90C High-ambient model |
Technical Specifications
| Brand / family | Philips Advance Centium |
| Catalog number | ICN-2S54-90C-T |
| Ballast type | Electronic fluorescent, programmed start |
| Input voltage | 120–277V IntelliVolt, 50/60 Hz |
| Lamps per ballast | 1 or 2 |
| Operating frequency | 42–52 kHz |
| Power factor | Greater than 0.98 (primary lamps) |
| Total harmonic distortion | 10% max. on primary lamps; see table for lamp-specific values |
| Lamp current crest factor | 1.7 or less |
| Sound rating | Class A |
| Lamp protection | End-of-life (EOL) protection and auto-restrike |
| Minimum starting temperature | -20°F (-29°C) on F54T5/HO, FT36W, FT50W and FT55W lamps; 0°F (-18°C) on FC12T5/HO circline |
| Case dimensions | 16.70 in L (16.34 in mounting) × 1.18 in W × 1.00 in H |
| Wiring diagram | 73 (1 lamp) / 74 or 74A (2 lamps) |
Electrical Data by Lamp Type
| Lamp configuration | Input power (W) | Ballast factor | Max. THD % | Line current (A) |
|---|---|---|---|---|
| 1 × F54T5/HO (49W) | 58 | 1.02 | 10 | 0.49–0.21 |
| 2 × F54T5/HO (49W) | 112–109 | 1.00 | 10 | 0.93–0.40 |
| 1 × F54T5/HO (54W) | 62 | 1.02 | 10 | 0.52–0.23 |
| 2 × F54T5/HO (54W) | 120–117 | 1.00 | 10 | 1.00–0.43 |
| 1 × FT36W/2G11 | 46 | 1.22 | 20 | 0.39–0.18 |
| 2 × FT36W/2G11 | 89–86 | 1.20 | 10 | 0.75–0.32 |
| 1 × FT50W/2G11/RS | 61 | 1.12 | 15 | 0.51–0.23 |
| 2 × FT50W/2G11/RS | 118–115 | 1.10 | 10 | 0.99–0.43 |
| 1 × FT55W/2G11 | 58 | 0.92 | 15 | 0.49–0.22 |
| 2 × FT55W/2G11 | 112–109 | 0.90 | 10 | 0.94–0.41 |
| 1 × FC12T5/HO (55W circline) | 55 | 0.87 | 15 | 0.46–0.21 |
| 2 × FC12T5/HO (55W circline) | 106–103 | 0.85 | 10 | 0.89–0.38 |
Input power, ballast factor, THD and line current are the figures published by Philips Advance for 120–277V operation; ranges in power and current reflect the 120V–277V input range.
Product Overview
The ICN-2S54-90C-T shares its electrical ratings with the other 54W-class Centium T5HO ballasts, so lamp compatibility, input power and ballast factor are the same as shown in the table above. Choose a 90C model when the fixture or the installation environment requires a 90°C rating. Programmed-start operation, end-of-life protection and auto-restrike are built in.
- Programmed start: preheats the lamp electrodes before ignition, which can extend lamp life in applications with frequent switching, such as occupancy sensors, motion detectors and daylight harvesting.
- IntelliVolt multi-voltage input: one ballast operates on any supply voltage from 120V through 277V (50/60 Hz), which simplifies ordering and installation.
- Auto-restrike: restarts lamps after a lamp is replaced without having to reset power.
- Lamp end-of-life (EOL) protection: safely removes power from a lamp when it fails.
- High-frequency operation (42–52 kHz): designed to avoid interference with infrared devices and anti-theft systems and to eliminate visible flicker.
- Energy-saving lamp compatible: Philips Advance T5HO ballasts are compatible with energy-saving lamps.
Compatible Lamps and Applications
This ballast is rated to operate:
- 1 or 2 × F54T5/HO (49W and 54W)
- 1 or 2 × FT36W/2G11 (36/39W 4-pin; PL-L36W, F39BX/RS, FT36DL)
- 1 or 2 × FT50W/2G11/RS (50W 4-pin; PL-L50W, F50BX/RS)
- 1 or 2 × FT55W/2G11 (55W 4-pin; PL-L55W, F55BX, FT55DL)
- 1 or 2 × FC12T5/HO (55W circline)
Typical applications: Retail, commercial, institutional and industrial lighting, including warehouses, manufacturing areas, schools, offices, and specialty and department stores.
Before Ordering
- Confirm the lamp type and lamp count match the table above.
- Check your supply voltage is between 120V and 277V (50/60 Hz). For 347–480V systems, Philips Advance lists a separate catalog number, HCN-2S54-90C-WL.
- Compare the case size (16.70 in L x 1.18 in W x 1.00 in H) with the space in your fixture.
- Confirm the full catalog suffix on your existing ballast (for example -T) so you receive the same version.
Safety and Handling
- Turn off power at the breaker before installing or servicing the ballast, and have the installation done by a qualified electrician in accordance with local electrical codes.
- Wire the ballast exactly as shown on its label and in the wiring diagram; ballast leads are color-coded per ANSI C82.11.
- For one-lamp operation, do not connect the yellow leads (wiring diagram 73).
- Ground the ballast case to the fixture.
- Use only the lamp types and lamp counts listed for this ballast, and remove a failed lamp promptly.
Compliance
- UL Listed, Class P, Type 1 Outdoor; CSA certified where applicable
- Contains no PCBs
- Class A sound rating
- Complies with ANSI C62.41 Category A transient protection and with ANSI C82.11 where applicable
- Complies with FCC 47 CFR Part 18, Non-Consumer (Class A), for conducted and radiated EMI/RFI
- UL Type CC rated
- Manufactured in an ISO 9002-certified factory
Ordering Information
| ADL SKU | DVBICN2S5490 |
| Catalog number | ICN-2S54-90C-T |
| Brand | Philips Advance |
Questions about compatibility, lamp configurations or replacements? Call ADL Supply at 1-800-235-3489 and we will help you match the right ballast to your fixture.
