Product Overview

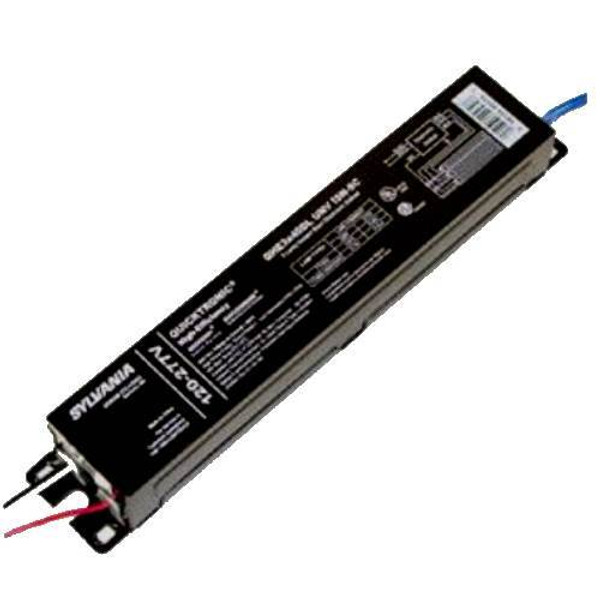

Sylvania QHE1x32T8/UNV-ISN-SC-1 — Item #49381 — 1-Lamp 32W T8 (4ft, OCTRON) Electronic Ballast, 120-277V (Universal)
The Sylvania QUICKTRONIC QHE1x32T8/UNV-ISN-SC-1 (Item #49381) is a 1-lamp instant start electronic ballast built to drive 32W T8 (4ft, OCTRON) fluorescent lamp systems in commercial and institutional fixtures. It operates on 120-277V (Universal) line voltage with a 0.87 (Normal) ballast factor and is wired for parallel-circuit operation, so remaining lamps stay lit if one or more lamps fail or are removed.
Ballast Factor 0.87 (Normal) ISN-SC-1 | Lamps Driven 1 32W T8 (4ft, OCTRON) | Input Voltage 120-277V (Universal) Universal | Input Current 0.25/0.11 A Line/Ballast | Starting Method Instant Start Parallel Circuit |
Technical Specifications
| Ballast Type | Electronic, Instant Start |
| Family / Series | QUICKTRONIC ISN-SC-1 (Normal Ballast Factor (UL Type CC / LSC)) |
| Ballast Factor | 0.87 (Normal) |
| Lamps Driven | 1 |
| Input Voltage | 120-277V (Universal) |
| Input Current (Line/Ballast) | 0.25/0.11 A |
| System Watts | 28 W |
| System Efficacy | 93 lm/W |
| System Lumens | 2,610 |
| Mean System Lumens | 2,480 |
| Flagship Lamp Pairing | FO32/XP OCTRON SUPERSAVER (3,000 rated lamp lumens) |
| Also Compatible With | Instant Start models in this family also operate FBO32, FBO31, FO25, FBO24, FO17, FBO16, FBO30/SS (30W), FBO29/SS (29W) lamps, and FO40T8. |
| Total Harmonic Distortion | <10% THD |
| Sold As | Banded Pack |
| Lamps / Fixture | Sold separately — ballast only |
Product Overview
OSRAM SYLVANIA's QUICKTRONIC High Efficiency (QHE) series delivers up to 6% additional energy savings over standard T8 low-power electronic ballasts, without compromising light output, and offers maximum savings versus F40T12 magnetically ballasted systems.
This model meets UL Type CC (Commercial Cabinet) rating and includes integrated Lamp Striation Control (LSC) circuitry, which minimizes lamp striations/strobing that can occur in T8 energy-saving lamps at lower temperatures.
Compatible Applications
- Retrofitting existing 32W T8 (4ft, OCTRON) fluorescent fixtures with a High Efficiency electronic ballast
- Commercial, retail, and institutional lighting upgrades
- Energy-retrofit programs and utility rebate projects
- New construction specifying 32W T8 (4ft, OCTRON) fixtures
Before Ordering – Verify
- Confirm your fixture's line voltage matches 120-277V (Universal) before ordering — this ballast is not rated for other input voltage ranges.
- Verify lamp compatibility — this ballast is engineered for FO32/XP OCTRON SUPERSAVER (32W T8 (4ft, OCTRON)); Instant Start models in this family also operate FBO32, FBO31, FO25, FBO24, FO17, FBO16, FBO30/SS (30W), FBO29/SS (29W) lamps, and FO40T8.
- This is a ballast only — confirm you are also ordering compatible replacement lamps separately if needed.
- Confirm your application requires UL Type CC / Lamp Striation Control before selecting this model over the standard (non-LSC) equivalent.
Safety and Handling Guidelines
- De-energize the branch circuit before installing, wiring, or replacing this ballast.
- Installation should be performed by a qualified/licensed electrician in accordance with the National Electrical Code (NEC) and local codes.
- Mount securely inside a fixture housing with proper strain relief on all lead wires; do not operate outside an enclosed fixture.
- Dispose of the ballast in accordance with local electronic-waste regulations; do not incinerate.
Compliance
- UL Listed (cUL Listed for Canada)
- RoHS-compliant, lead-free solder manufacturing process
- Meets applicable ANSI harmonic-distortion limits (<10% THD)
- Covered by the SYLVANIA QUICK 60+ system warranty
Ordering Information
- Item #49381 — ballast only; lamps and fixture components are sold separately.
- Sold as: Banded Pack
- Contact ADL Supply to confirm this ballast is the correct replacement for your existing fixture before ordering.
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
