Sylvania 49461 QHE1X32T8/347 ISN-SC

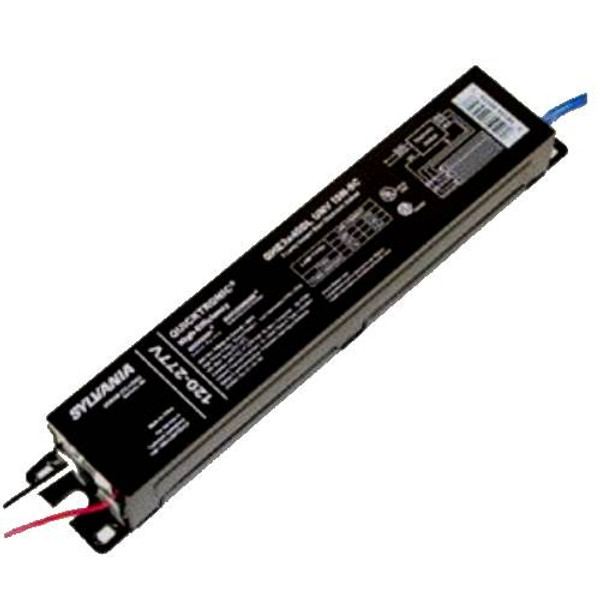

Sylvania QHE 1X32T8/347 ISN-SC — Item #49461 — 1-Lamp 32W T8 (4ft, OCTRON) Electronic Ballast, 347V

The Sylvania QUICKTRONIC QHE 1X32T8/347 ISN-SC (Item #49461) is a 1-lamp instant start electronic ballast built to drive 32W T8 (4ft, OCTRON) fluorescent lamp systems in commercial and institutional fixtures. It operates on 347V line voltage with a 0.88 (Normal) ballast factor and is wired for parallel-circuit operation, so remaining lamps stay lit if one or more lamps fail or are removed.

Technical Specifications

Product Overview

OSRAM SYLVANIA's QUICKTRONIC High Efficiency (QHE) series delivers up to 6% additional energy savings over standard T8 low-power electronic ballasts, without compromising light output, and offers maximum savings versus F40T12 magnetically ballasted systems.

Actual system lumens, mean lumens, wattage, and efficacy vary slightly depending on which OCTRON lamp is paired with this ballast; the figures above reflect the FO32/XP OCTRON SUPERSAVER pairing.

This is the 347V CANADA version of this ballast family, for use in Canadian 347V line-voltage installations.

Compatible Applications

• Retrofitting existing 32W T8 (4ft, OCTRON) fluorescent fixtures with a High Efficiency electronic ballast
• Commercial, retail, and institutional lighting upgrades
• Energy-retrofit programs and utility rebate projects
• New construction specifying 32W T8 (4ft, OCTRON) fixtures
• Canadian 347V line-voltage commercial installations

Before Ordering – Verify

• This is the 347V Canada version — confirm your installation uses 347V line voltage before ordering; it is not compatible with 120-277V systems.
• Confirm your fixture's line voltage matches 347V before ordering — this ballast is not rated for other input voltage ranges.
• Verify lamp compatibility — this ballast is engineered for FO32/XP OCTRON SUPERSAVER (32W T8 (4ft, OCTRON)); Instant Start models in this family also operate FBO32, FBO31, FO25, FBO24, FO17, FBO16, FBO30/SS (30W), FBO29/SS (29W) lamps.
• This is a ballast only — confirm you are also ordering compatible replacement lamps separately if needed.

Safety and Handling Guidelines

• De-energize the branch circuit before installing, wiring, or replacing this ballast.
• Installation should be performed by a qualified/licensed electrician in accordance with the National Electrical Code (NEC) and local codes.
• Mount securely inside a fixture housing with proper strain relief on all lead wires; do not operate outside an enclosed fixture.
• Dispose of the ballast in accordance with local electronic-waste regulations; do not incinerate.

Compliance

• UL Listed (cUL Listed for Canada) — CSA-recognized 347V input
• RoHS-compliant, lead-free solder manufacturing process
• Meets applicable ANSI harmonic-distortion limits (<10% THD)
• Covered by the SYLVANIA QUICK 60+ system warranty

Ordering Information

• Item #49461 — ballast only; lamps and fixture components are sold separately.
• Sold individually.
• Contact ADL Supply to confirm this ballast is the correct replacement for your existing fixture before ordering.

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
