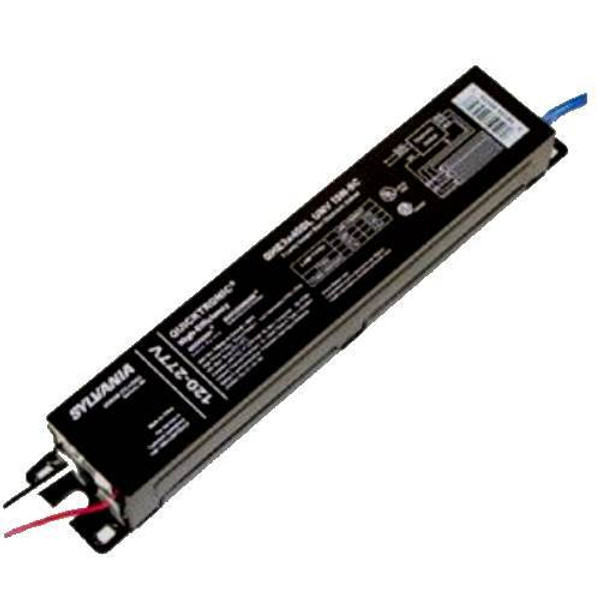

SYLVANIA QHE 3x32T8/UNV-ISN | Quicktronic High Efficiency T8 Ballast

The Sylvania Quicktronic High Efficiency (QHE) 3x32T8/UNV-ISN is a premium, **3-lamp instant start electronic ballast** engineered for high-performance T8 fluorescent lighting. With a **0.88 Normal Ballast Factor**, it is an ideal choice for energy-conscious commercial retrofits and new construction. This NEMA Premium-certified ballast is built to exceed energy code requirements and qualifies for utility incentive programs while providing reliable, long-lasting performance.

Performance and Reliability

This ballast features parallel circuitry, which allows remaining lamps to stay lit if one lamp fails. It is also equipped with Lamp Striation Control (LSC) to ensure smooth operation when using energy-saving T8 lamps.

• Energy Efficiency: Certified NEMA Premium, delivering maximum energy savings and qualifying for local utility rebates.
• Cold Start Capability: Reliable operation in temperatures as low as -20°F (-29°C).
• Versatile Mounting: Supports remote mounting up to 20 feet from the fixture.
• Compact Form: Small can design allows for seamless integration into a wide variety of commercial luminaires.

Technical Specifications

• Brand: Sylvania (Quicktronic High Efficiency)
• Lamp Operation: 2 or 3 Lamps (Linear and U-bend T8)
• Input Voltage: 120-277V (50/60Hz)
• Ballast Factor: 0.88
• Total Harmonic Distortion (THD): < 10%
• Sound Rating: Class A
• Enclosure Dimensions: 9.47”L x 1.69”W x 1.18”H
• Compliance: UL Listed (Class P, Type 1 Outdoor, Type CC), CSA Certified, FCC Part 18 Non-Consumer, ANSI C82.11

Installation Requirements

• Safety: Ensure the ballast case is properly grounded.
• Wiring: Lampholders must be shorted exactly according to the provided diagram.
• Code Compliance: Install in strict accordance with the National Electric Code (NEC).
