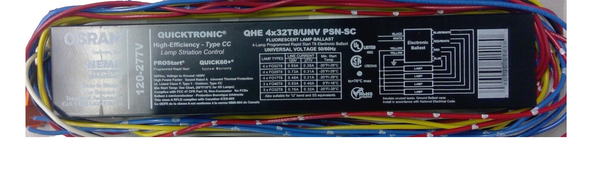

SYLVANIA QHE 4x32T8/UNV PSN-SC | Quicktronic Programmed Start T8 Ballast

The Sylvania Quicktronic High Efficiency (QHE 4x32T8/UNV PSN-SC) is a professional-grade 4-lamp programmed start electronic ballast for T8 fluorescent systems. Utilizing PROStart® technology, this ballast is specifically designed to extend lamp life in applications involving frequent switching, such as those controlled by occupancy sensors. With a 0.88 Normal Ballast Factor and universal voltage (120-277V), it is a reliable, NEMA Premium-certified solution for energy-efficient commercial lighting.

Performance and Reliability

The programmed start method pre-heats the lamp cathodes, ensuring maximum lamp life even in high-cycle environments. This ballast also incorporates Lamp Striation Control (LSC) to maintain consistent light quality with energy-saving T8 lamps.

• Extended Lamp Life: Programmed start is ideal for use with occupancy sensors and frequent power cycling.
• Energy Efficiency: NEMA Premium certified for high energy savings and utility rebate eligibility.
• Cold Starting: Rated for reliable operation down to -20°F (-29°C).
• Versatile Layout: Compact "small can" design and 20-foot remote mounting capability for easy installation.

Technical Specifications

• Brand: Sylvania (Quicktronic High Efficiency)
• Lamp Operation: 3 or 4 Lamps (Linear and U-bend T8)
• Input Voltage: 120-277V (50/60Hz)
• Total Harmonic Distortion (THD): < 10%
• Sound Rating: Class A
• Enclosure Dimensions: 9.47”L x 1.69”W x 1.18”H
• Compliance: UL Listed (Class P, Type 1 Outdoor, Type CC), CSA Certified, FCC Part 18, ANSI C82.11

Installation Guidelines

• Grounding: Ballast case must be properly grounded.
• Wiring: Lampholders must be shorted exactly according to the included diagram.
• Codes: Installation must comply with the National Electric Code (NEC).
