Sylvania Lumalux LU400/480/120T-KIT Item #47657 - 400W High Pressure Sodium Magnetic Core and Coil Ballast Kit (ANSI S51)
The Sylvania Lumalux LU400/480/120T-KIT (Item #47657) is a 400W High Pressure Sodium (HPS) magnetic core and coil ballast kit for one 400W S51 HPS lamp. It uses a CWA circuit with 480V with 120V tap (480/120 tap) input and a pulse start ignitor, and includes the capacitor, ignitor, brackets, mounting hardware and installation instructions.
|
Lamp
400W
HPS, ANSI S51
|
Input Voltage
480/120V Tap
480V + 120V tap
|
Circuit Type
CWA
Constant Wattage
|
Starting Method
Pulse Start
Ignitor included
|
Min Start Temp
-40°F
-40°C
|
Technical Specifications
| Brand | Sylvania (OSRAM SYLVANIA) - Lumalux |
| Model | LU400/480/120T-KIT |
| Item Number | 47657 |
| Ballast Type | Magnetic core and coil kit, High Pressure Sodium |

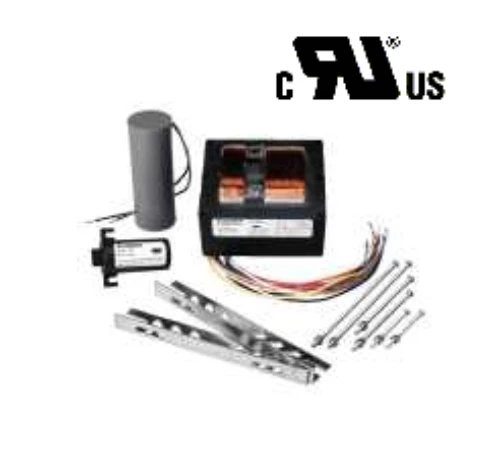

| Kit Contents | Core and coil, capacitor, ignitor, brackets, mounting hardware, installation instructions |
| Lamp Compatibility | (1) 400W S51 HPS (ballast is compatible with other manufacturers' equivalent lamp types that meet ANSI standards) |
| Input Voltage | 480V with 120V tap (480/120 tap), 60 Hz |
| Circuit Type | CWA (Constant Wattage Autotransformer) |
| Input Power | 464 W |
| Max Input Current | 1.0 A |
| Nominal Open Circuit Voltage | 190 V |
| Fuse Rating | 3 A |
| Power Factor | 90% minimum |
| Starting Method | Pulse Start (ignitor) |
| Minimum Starting Temperature | -40°F (-40°C) |
| Insulation Class | H (180°C) |
| Ballast Dimensions (Figure N, 4-1/4 x 4-3/4 in core) | A: 2.3 in, B: 4.0 in |
| Dry Capacitor | 55 Mfd, 240 VAC minimum |
| Ignitor | Figure A-2 oval case; max distance to lamp 2 ft; lead length 12 in |
| Approx. Ballast Weight | 15.0 lbs |
| Packaging | 1 kit each |
| Listing | UL listed |
Maximum input current is based on the highest current listed for operating, open circuit or starting current.
Product Overview
The Sylvania Lumalux LU400/480/120T-KIT is a complete replacement ballast kit for 400W S51 High Pressure Sodium fixtures. The kit supplies the magnetic core and coil, dry capacitor and pulse start ignitor together, so the electrical components are matched to each other.
Its CWA circuit regulates lamp power through input voltage swings. Use on 480V circuits with the 120V tap for auxiliary connection.
Compatible Applications
- Replacement or rebuild of 400W S51 HPS fixture ballasts
- Commercial, industrial and outdoor HID fixture maintenance
- Cold-weather installations (minimum starting temperature -40°F)
Compatibility and Cross-Reference
- Operates one 400W S51 HPS lamp.
Comparable products from other manufacturers, per the Sylvania magnetic ballast cross-reference guide (same lamp wattage, voltage and circuit type). Verify case size, wiring and specifications before substituting.
| Manufacturer | Comparable Part Number |
| Advance | 71A8443T |
| Universal Lighting Technologies | S40048TAC4M-500K |
Before Ordering - Verify
- Confirm lamp wattage and ANSI code: 400W S51. This kit is not interchangeable with other HPS wattages.
- Confirm your circuit voltage matches 480V with 120V tap (480/120 tap).
- Confirm physical fit against the catalog ballast figure (Figure N).
- Ballast kit only; the lamp and fixture are sold separately.
Safety and Installation Guidelines
- High voltage pulse is present on the open circuit. Ground the ballast core and the metallic cases of the capacitor and ignitor.
- Disconnect power before installing or servicing.
- Install in accordance with the National Electrical Code (NEC) and local codes.
- Follow the included installation instructions and wiring diagram.
Ordering Information
- Item #47657 - LU400/480/120T-KIT
- Lamp: 400W S51 HPS
- Input voltage: 480V with 120V tap (480/120 tap)
- Packaging: 1 kit each (catalog).
- Contact ADL Supply for case quantities and volume pricing.
For wholesale pricing, bulk availability, or help confirming the correct replacement ballast kit, contact ADL Supply at 1-800-235-3489.
