Universal 18877-7 - MTm3912CK-7EUN-F

(No reviews yet) Write a Review
$89.40
SKU:
UNVI188777
UPC:
188777.02
Availability:
DISCONTINUED
Shipping:
Calculated at Checkout

Product Overview

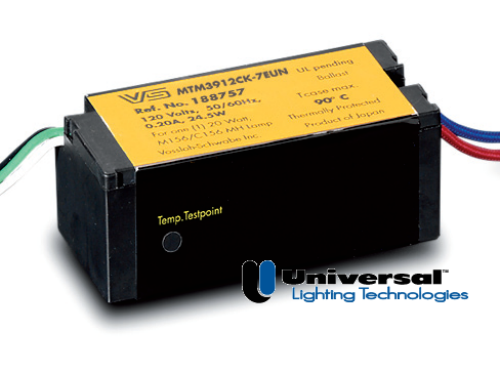

Universal Lighting Technologies Vossloh Schwabe MTm3912CK7EUN-F 120V Electronic Metal Halide Micro Case Ballast With Feet mount & Side lead exit Use To Operate (1) 39W C179 MH Lamp or CDM-TM 35W PGJ5 Ceramic Metal Halide Lamp

Product Details

  • RoHs Compliant
  • Resonance Start
  • Ansi Code M179/C179
  • Microprocessor controlled
  • Active power factor correction
  • Voltage : 120V, +/-10%, 50/60Hz
  • Universal Order Code 188777.02
  • (F) Feet mount (Side lead exit)
  • DIM: (L) 3.85in (W) 1.32in x (H) 1.22in
  • 5-Lead Wires( Black, White, Green,Blue, Red)
  • RoHS Compliant
  • Spec Sheet



Additional Information

  • Energy Efficient
  • Greater than 20% increase in efficiency
  • Lowers lighting operation costs
  • Full Light Output
  • Provides same light levels as magnetic ballasts being replaced
  • Quiet Operation
  • Significantly quieter than magnetic ballasts
  • High Frequency Operation
  • No lamp flickering
  • Light Weight - Low Profile Case
  • Simplifies transportation & installation
  • Less interference with ballast channel cover during replacement
  • Slimline Ballasts Feature Parallel Lamp Operation
  • When one lamp fails, other lamp remains lit
  • Instant start electronic ballast for long lamp starting cycles and low initial cost
  • UL Type 1 Outdoor



Universal Lighting Technologies Micro Series

The introduction of the smallest eHID ballasts in the market was coordinated with the launch of the new miniaturized capsule MH lamps enabling the ultimate luminaire design flexibility. Extremely compact and aesthetically pleasing, luminaire designs are approaching the form factor and size of low voltage halogen system

Performance:

• EOL Protection
• Meets ANSI Standard C82.14-2006
• Meets ANSI Standard C62.41-1991
• Meets FCC Part 18C for EMI & RFI (non-consumer)

Safety:

• No PCBs
• Thermal Protection
• C/UR/US recognized component


Each lamp's lead wires must be run in a separate minimum 1/2" ID conduit from the input
leads to achive good EMI performance and maximum remote capabilities. Individual ,
unbundled lead wires must be used for extension wiring using wire types SF-2 or SFF-2
or equivalent. Power cords and MC cables are not acceptable extension wiring methods.
