Product Overview

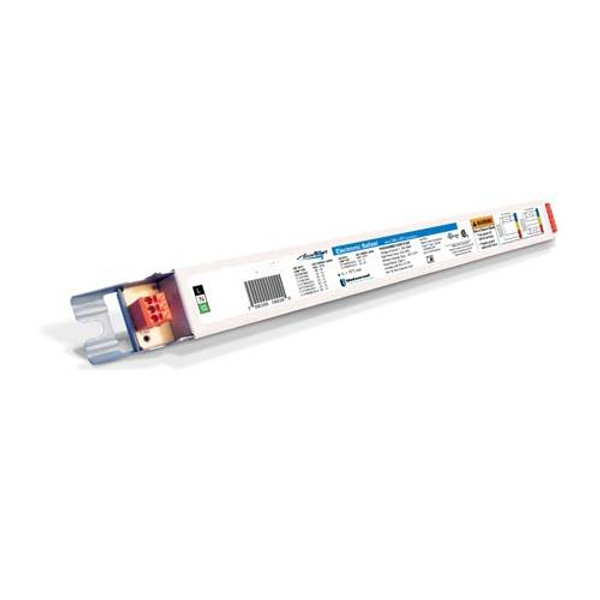

Universal Triad B224PUNV-C001C F24T5HO 2-Lamp Electronic Ballast

Programmed Rapid Start Electronic Ballast operating on 120-277V with AccuStart5 technology. Designed for energy-efficient fluorescent lighting systems.

Compatible Fluorescent Lamps

This universal electronic ballast operates the following lamp types:

(1-2) F24T5HO - High Output T5 Fluorescent Lamp
(1) F39T5HO - High Output T5 Fluorescent Lamp
(1-2) FT24W/2G11 - (Also compatible with PL-L24W/4P, FT24DL/4P, Dulux L 24W)
(1-2) CFM24W/2G10 - (Dulux F 24W Compact Fluorescent)
(1) FT36W/2G11 - (Also compatible with PL-L36W/4P, FT36DL/4P, Dulux L 36W)
(1) CFM36W/2G10 - (Dulux F 36W Compact Fluorescent)

Technical Specifications & Features

Line Voltage 120-277 VAC, ±10%, 50/60Hz
Start Method Programmed Rapid Start
Lamp Operation Series Lamp Operation
Power Factor Active Power Factor Correction
Safety Features Auto Reset after Lamp Replacement & End of Lamp Life Shutdown Circuitry
Physical Dimensions 14.5" L × 1.18" W × 1.00" H - Lightweight Low Profile Housing
Manufacturing Manufactured in North America
Compliance Meets ANSI Standard C82.11-1993
Performance Normal Ballast Factor with < 10% Total Harmonic Distortion (THD)
Sound Rating Rating A (20-24 decibels) - Quiet Operation
Safety Rating UL Type 1 Outdoor Rated
