Product Overview

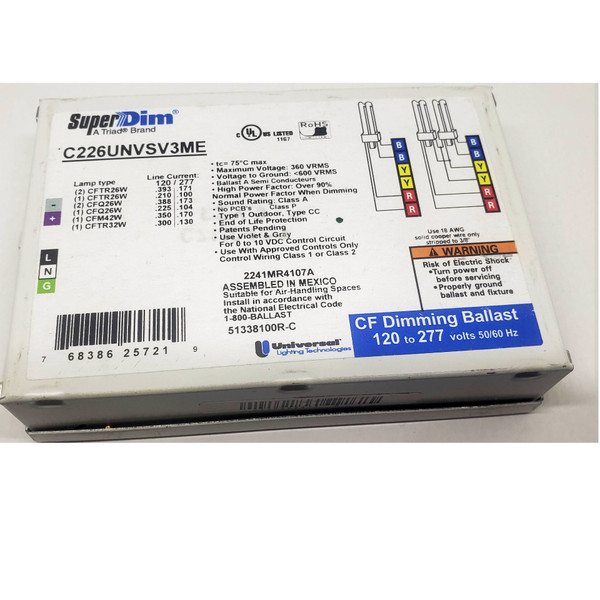

Universal Lighting Super-Dim C226UNVSV3ME 1-2 Lamp 26W-42W CF Dimming Ballast Operates the Following Lamps:
- (1-2) CFTR26W-GX24q-3 Base (Philips PL-T 26W/4P, GE F26TBX/4P, Sylvania CF26DT/E)
- (1-2)CFQ26W-G24q-3 Base (Philips PL-C 26W/4P, GE F26DBX/4P, Sylvania CF26DD/E)
- (1-2) CFTR32W-GX24q-3 Base (Philips PL-T 32/W GE F26TBX/4P, Sylvania CF26DT/E)
- (1-2) CFTR42W/GX24q (PL-T 42W/4P, GE F42TBX/4P, Sylvania CF42DT/E)
Product Details:
- DIM: 4.94in x 3in x 1in
- ME = Multi-Ended *Multiple Mounting Connections*
- Universal input voltage (120 – 277V 50/60Hz)
- Line voltage protection for control circuit
- Dimming range: 100% to 3% light output
- Sound rating: Class A
- Remote mounting: 18"
- Line voltage protection for control circuit
Dimming Control Specifications:
- 10 to 0 vDC Voltage Control
- 10v = maximum output
- Can be wired as Class 1 or Class 2 Circuit
- 0v = minimum output
- Ballast will source a maximum of 250uA for control needs
- Built-in line voltage protection circuit: Deep-dimming condition when line voltage is applied to control leads
