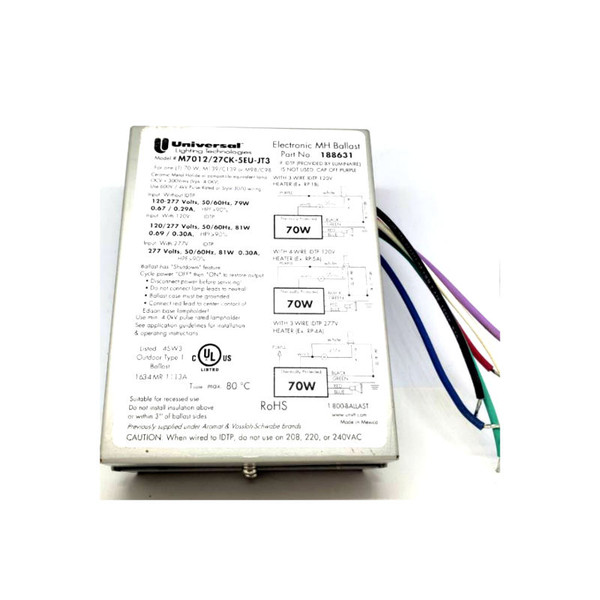

Universal Lighting Technologies M7012/27CK-5EU-JT3 Electronic Ballast – VS #188631.02

High-Efficiency HID Ballast for 70W Metal Halide Lamps | Universal Voltage 120–277V

Product Specs

• Model: M7012/27CK-5EU-JT3 (VS #188631.02)
• Input Voltage: 120–277 VAC ±10%, 50/60 Hz
• Lamp Compatibility: ANSI M143/C143, M139/C139, M98/C98 (70W Metal Halide)
• Power Factor: > 95% (active PFC with or without IDTP)
• Case Dimensions: 5.02" L × 3.62" W × 1.57" H
• Startup Method: Resonance Start, Instant-On
• Remote Mounting: Up to 15 feet with proper conduit separation

Key Features

• Energy Efficient: Up to 20% savings vs. magnetic HID ballasts
• Quiet Operation: Sound Rated “A” with high-frequency microprocessor control
• Instant Start: Immediate full-brightness output without delay
• Dual Voltage IDTP Compatibility: Supports 3- or 4-wire thermal protectors (120V tap)
• Parallel Lamp Operation: Maintains output if one lamp fails
• Advanced Protection: End-of-lamp life (EOL) shutdown, thermal protection
• Compact Design: Top-lead exit, stud-mount, easy for retrofit or new installations
• Low Harmonic Distortion: < 6% THD @ 120V, < 12% THD @ 277V

Compliance & Certifications

• Safety: UL Type 1 Outdoor, cULus Listed
• Standards: Meets ANSI C82.14-2006 & C62.41-1991
• EMI/RFI: Meets FCC Part 18C (non-consumer)
• Environmental: RoHS Compliant, No PCBs

Operating Conditions

• Minimum Starting Temperature: -15°C / +5°F
• Maximum Case Temperature: 80°C / 176°F

Common Applications:

• Outdoor Lighting Fixtures
• Parking Lot and Street Lighting
• Industrial and Commercial HID Fixtures
