Product Overview

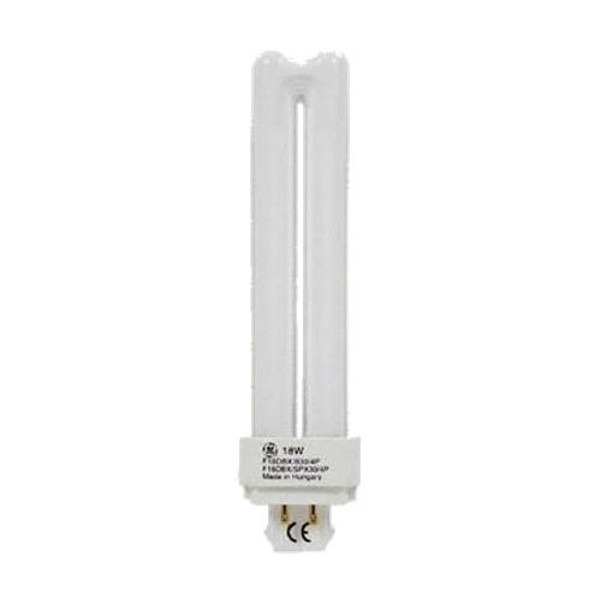

GE 97598 F18DBX/827/ECO4P 18W Double Biax Ecolux CFL - 2700K G24q-2 4-Pin Warm White
The GE 97598 F18DBX/827/ECO4P is an 18-watt Double Biax Ecolux compact fluorescent lamp featuring a T4 quad-tube design and 4-pin G24q-2 base. This energy-efficient CFL delivers 1,200-1,250 lumens of 2700K warm white light with 82 CRI and a rated life of 12,000-17,000 hours. Replaces 65W incandescent bulbs for up to 80% energy savings.
Key Specifications
- Product Code: 97598
- Ordering Code: F18DBX/827/ECO4P
- Also Known As: F18DBX/SPX27/4P
- Wattage: 18W
- Voltage: 120V
- Base Type: G24q-2 (4-Pin Plug-In)
- Bulb Shape: T4 Quad Tube (Double Biax)
- Color Temperature: 2700K (Warm White)
- Color Rendering Index (CRI): 82
- Initial Lumens: 1,200-1,250 lm
- Mean Lumens: 970 lm (at 40% rated life)
- Luminous Efficacy: 69 LPW
- Rated Life: 12,000 hours (17,000 hours LongLast version)
- Equivalent Wattage: 65W incandescent
- Maximum Overall Length (MOL): 5.8" (147.3mm)
- Lighted Length: 3.4" (86.4mm)
- Diameter: 1.38" (35mm)
- Operating Position: Universal
- TCLP Compliant: Yes (low mercury)
- Case Quantity: 10 per case
- UPC: 043168975988
Ecolux Technology Features
- Ecolux low-mercury technology for environmental compliance
- TCLP compliant for easier disposal regulations
- Same light output in any burning position (universal operation)
- Up to 80% energy savings vs 65W equivalent incandescent
- Lasts 12× longer than standard incandescent lamps
- High color rendering index (CRI 82) for accurate color perception
- Compact quad-tube design fits most luminaires
- Dimmable with appropriate dimming ballast
- End-of-life protection with compatible ballasts
- 69 LPW luminous efficacy for energy efficiency
Compatible GE Ballasts
Requires electronic ballast compatible with 18W G24q-2 lamps:
- GE #71428 GEC213-MVPS-BES (for 13W/18W CFL)
- GE #71429 GEC213-MVPS-SE (for 13W/18W CFL)
- GE #71430 GEC213-MVPS-3W (for 13W/18W CFL)
- GE #71432 GEC218-MVPS-BES (for 18W/26W CFL)
- GE #71433 GEC218-MVPS-SE (for 18W/26W CFL)
- GE #71434 GEC218-MVPS-3W (for 18W/26W CFL)
Note: GEC213 series rated for 13W-18W, GEC218 series rated for 18W-26W. Verify ballast compatibility with specific wattage.
Primary Applications
- Commercial Facilities and Office Lighting
- Retail Display and Merchandising
- Hospitality and Hotel Lighting
- Restaurant and Food Service
- Warehouse and Storage Facilities
- Residential Downlighting
Alternate Part Numbers & Cross References
Also known as: GE 97598, F18DBX/827/ECO4P, F18DBX/SPX27/4P
Cross Reference: Sylvania CF18DD/E/827, Philips PL-C 18W/827/4P, Osram Dulux D/E 18W/827
Safety & Environmental Information
- Contains mercury - dispose of properly according to local regulations
- 4-pin base requires electronic ballast with end-of-life protection
- Universal burning position suitable for any fixture orientation
- Operating temperature: 50°F (10°C) minimum for standard ballasts
