GE 97575 F9DBX23/841/ECO

GE 97575 F9DBX23/841/ECO – 9W | 4100K Cool White | 550 lm | G23-2 2-Pin

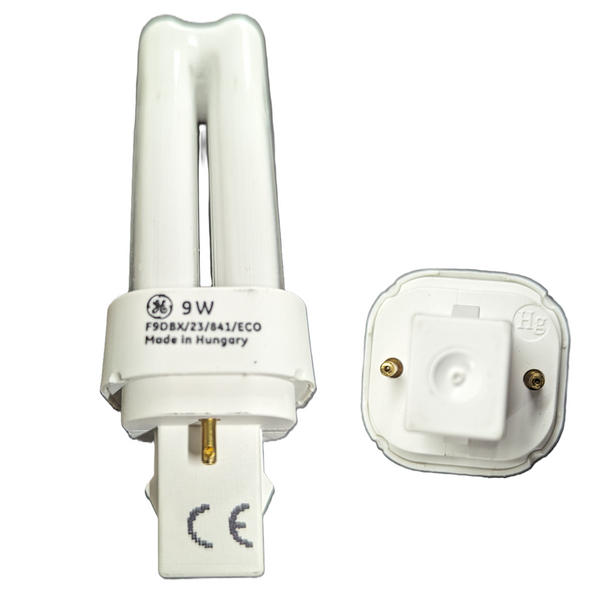

The GE 97575 F9DBX23/841/ECO is a 9W 4100K Cool White 2-pin plug-in compact fluorescent lamp (2-Pin Double Biax®) delivering 550 initial lumens, CRI 82, G23-2 2-pin base, and 12,000-hour rated life. It is a plug-in lamp, not a self-ballasted lamp, and requires a compatible external CFL ballast. UPC: 43168975759.

Quick Specs

• Brand: GE
• Order Code: 97575
• GE Description: F9DBX23/841/ECO
• UPC: 43168975759
• Product Family: 2-Pin Double Biax®
• Wattage: 9W
• Base: G23-2 (2-pin)
• Nominal Length: 5.5 in
• Color Temperature: 4100K Cool White
• CRI: 82
• Initial Lumens: 550 lm
• Mean Lumens: 470
• Rated Average Life: 12,000 hours
• Min. Starting Temperature: Not listed in catalog
• Case Quantity: 50
• TCLP Compliant: Yes (catalog TCLP-compliant plug-in mark)
• Lamp Type: Plug-in CFL — not self-ballasted
• Dimming: Not listed in catalog

Product Overview

The GE 97575 F9DBX23/841/ECO is a 9W 4100K Cool White 2-Pin Double Biax® plug-in CFL rated at 550 initial lumens and 470 mean lumens, with a CRI of 82 and a rated average life of 12,000 hours. It uses a G23-2 2-pin base and is a plug-in lamp, so it must be operated on a compatible external CFL ballast. Dimming operation is not listed in the GE catalog; do not install on a dimmer circuit unless the ballast manufacturer specifies compatibility.

GE catalog notes for this lamp: Fluorescent lamp lumens decline during life. Based on 60Hz reference circuit. Max. bulb wall temperature not to exceed 180°C. Consult GE sales representative for further information. GE caution notice 151: CAUTION – Lamp may shatter and cause injury if broken. Remove and install by grasping only the plastic portion of the lamp.

Applications

• 2-pin CFL fixtures – Recessed downlights, wall sconces, and other fixtures built for G23-2 2-pin plug-in lamps. Confirm base, wattage, and ballast compatibility before ordering.
• Retrofit and maintenance replacement – Like-for-like replacement for 9W G23-2 lamps. 4100K (Cool White) matches the color temperature of the lamp being replaced when that lamp is also 4100K.

Replacing Your Current 2-Pin CFL?

• Base type – confirm 2-pin vs 4-pin: This lamp uses a G23-2 2-pin base. 2-pin and 4-pin lamps are not interchangeable. Check your fixture socket.
• Ballast compatibility: Plug-in lamp — requires a compatible external CFL ballast rated for 9W and a G23-2 lamp. The catalog lamp table does not specify a ballast type.
• Wattage – 9W: Confirm your ballast and fixture are rated for 9W.
• Color temperature – 4100K: Match the color temperature of the lamps you are replacing.
• Dimmable: Not listed in the catalog. Do not install on a dimmer circuit unless the ballast manufacturer specifies compatibility.
• Catalog cross-reference: Generic CFQ9W/G23/841.

Ordering Information

• Brand: GE
• Order Code: 97575
• GE Description: F9DBX23/841/ECO
• UPC: 43168975759
• Wattage / CCT: 9W / 4100K Cool White
• Base: G23-2 (2-pin)
• Case Quantity: 50. Contact ADL Supply for volume orders.

Compliance

• TCLP compliant plug-in lamp per the GE catalog.
• Caution notice 151: lamp may shatter and cause injury if broken; remove and install by grasping only the plastic portion of the lamp.
• This lamp contains mercury — dispose per local lamp recycling regulations. Visit lamprecycle.org.

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.

ADL Supply recommends confirming all specifications with the manufacturer product data sheet prior to installation.
