Product Overview

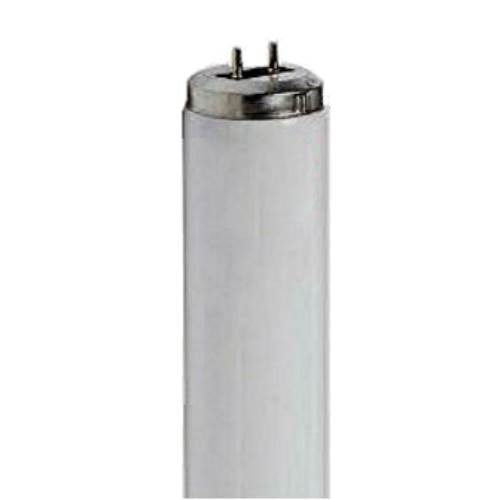

Sylvania 23505 F40/WX — 40W 3500K Deluxe White T12 Linear Fluorescent Lamp
Sylvania 23505 (F40/WX) is a 40W T12 rapid start fluorescent lamp with a Deluxe White phosphor, 3500K color temperature and 87 CRI. Its VIVID Color high-CRI phosphor suits color-critical applications, and it fits a standard 4-foot fixture with a Medium Bipin (G13) base.
| Wattage 40W T12 Rapid Start | Color Temp 3500K Deluxe White | CRI 87 VIVID Color | Initial Lumens 2400 lm After 100 Hours | Rated Life 20,000 Hr At 3 Hrs/Start |
Technical Specifications
| Product Number (Order Code) | 23505 |
| Ordering Abbreviation | F40/WX (F40WX 30/CS 1/SKU with packaging info) |
| Wattage | 40W |
| Lamp Type | T12 rapid start linear fluorescent |
| Phosphor | Deluxe White (VIVID Color, high CRI) |
| Color Temperature | 3500K |
| CRI | 87 |
| Initial Lumens (25°C) | 2400 lm (after 100 hours of operation) |
| Mean Lumens (25°C) | 1805 lm (measured at 40% of average rated life) |
| Base | Medium Bipin (G13) |
| Rated Average Life | 20,000 hours at 3 hrs/start; 28,800 hours at 12 hrs/start |
| Actual Length | 47.78 in (1213.61 mm) |
| Nominal Length | 47.78 in (1219.2 mm) |
| Diameter | 1.59 in (40.40 mm) |
| Industry Standard | ANSI C78.81 - 2001 |
Product Overview
The Sylvania F40/WX combines a 3500K color temperature with 87 CRI for natural-looking color rendering in color-critical spaces. It is rated for 20,000 hours at 3 hours per start and 28,800 hours at 12 hours per start; mean lumens of 1805 are measured at 40% of average rated life.
Life ratings are based on 3-hour operating cycles under specified conditions with a ballast meeting ANSI specifications. If the operating cycle is increased, average life increases accordingly. Rated life is measured on 2-lamp rapid start magnetic ballasts, and life on single-lamp rapid start ballasts may be reduced.
Compatible Applications
- 4-foot fluorescent fixtures
- Color-critical lighting where high CRI is required
- Replacement for 40W T12 rapid start lamps; 40W rapid start lamps may also be used in starter-operated fixtures designed for 40W preheat lamps (preheat life approximately 15,000 hours average)
Before Ordering – Verify
- Confirm the fixture is a T12, Medium Bipin (G13) fixture with a ballast that suits a 40W rapid start lamp.
- Confirm the fixture is suitable for the intended location. The previous listing mentioned indoor/outdoor use, which the manufacturer datasheet does not state; verify the fixture rating before using this lamp outdoors.
- Minimum starting temperature depends on the ballast — consult the ballast manufacturer.
Installation Notes
- The lamp should not touch any surface of the luminaire (high-frequency or 60Hz ballasted systems).
- On high-frequency ballasted systems, keep at least 3 mm between any part of the lamp and any conductive surface of the luminaire.
Ordering Information
- Product Number: 23505
- Ordering Abbreviation: F40/WX
- Full case required (packaging abbreviation F40WX 30/CS).
- Contact ADL Supply to confirm current stock and lead time.
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
