Philips 282046 F32T8/ADV830/XEW 25W 3000K T8

Philips 282046 F32T8/ADV830/XEW 25W 3000K T8 Fluorescent Lamp — 25W | 48 in T8 | 2,500 Lumens | 3000K Warm White | G13 Medium Bi-Pin Base

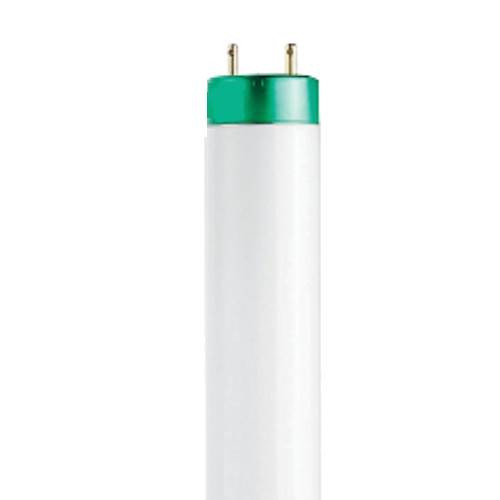

The Philips 282046 F32T8/ADV830/XEW 25W 3000K T8 is a 25W 3000K Warm White T8 linear fluorescent lamp, 48 inches long, with a G13 medium bi-pin base. It uses 7 watts less than a standard 32W T8. It produces 2,500 initial lumens with a color rendering index (CRI) of 85 and 97% lumen maintenance, and Philips rates its average life at 38,000 to 44,000 hours at 12 hours per start.

ADL Supply Expert Application & Replacement Guide

This 25W lamp is part of the Philips Energy Advantage T8 line, which is designed for applications that need maximum energy savings. Philips states that it saves 7 watts per lamp compared with a standard 32W T8, and up to $31 in energy cost over the rated life of the 25W XEW lamp (based on 7W, 44,000 hours and $0.10 per kWh). Philips positions the 3000K warm white color for warm-white spaces such as hospitality and retail.

Philips states that the lamp operates on any instant-start or programmed-start ballast, so it can be used on the same ballast as a standard 32W T8. Starting voltage should be 550V or higher, and the lamp is not recommended where the temperature in the fixture is below 70°F. ALTO II lamps contain only 1.7 mg of mercury and are TCLP compliant, which can simplify and reduce lamp disposal costs depending on state and local regulations.

T8 lamps have a 1-inch (26 mm) tube. T8 and T12 lamps share the same G13 base, so the base alone will not tell you which type your fixture uses; match the wattage, length and lamp code printed on the end of the lamp you are replacing.

Detailed Product Specifications

• Brand: Philips Lighting
• Product Name: Philips 282046 F32T8/ADV830/XEW 25W 3000K T8
• Philips Order Code: 28204-6
• UPC Barcode Number (GTIN-12): 046677282042
• Lamp Type: T8 linear fluorescent, Energy Advantage
• Lamp Wattage: 25W
• Color Temperature: 3000K, Warm White
• Color Rendering Index (CRI): 85
• Initial Lumens: 2,500 lm
• Rated Average Life: 38,000 hours on instant start or 44,000 hours on programmed start (12 hours per start)
• Base: G13 Medium Bi-Pin
• Nominal Length (MOL): 48 in
• Bulb Diameter: 1 inch (T8)
• Design Lumens (at 40% of life): 2,425 lm
• Lumen Maintenance: 97%
• Minimum Starting Voltage: 550V or higher
• Efficiency Standard: Meets US Federal Minimum Efficiency Standards (per Philips catalog)

Ballast & Fixture Compatibility

Philips states that this lamp operates on any instant-start and programmed-start ballast, with a starting voltage of 550V or higher. It is not recommended where the temperature in the fixture is below 70°F. Striations may occur where air is moving through the fixture; for best operation, use a ballast with anti-striation circuitry.

Before You Order – Verify

• Confirm the product name and code: Philips 282046 F32T8/ADV830/XEW 25W 3000K T8 (catalog number 28204-6).
• Confirm the fixture uses G13 medium bi-pin sockets and takes a 48-inch (4-foot) lamp.
• Confirm the ballast is an instant-start or programmed-start type with a starting voltage of 550V or higher.
• Confirm the fixture temperature is not below 70°F, which Philips does not recommend.
• Confirm 3000K matches the lamps already installed before partial re-lamping.
