Product Overview

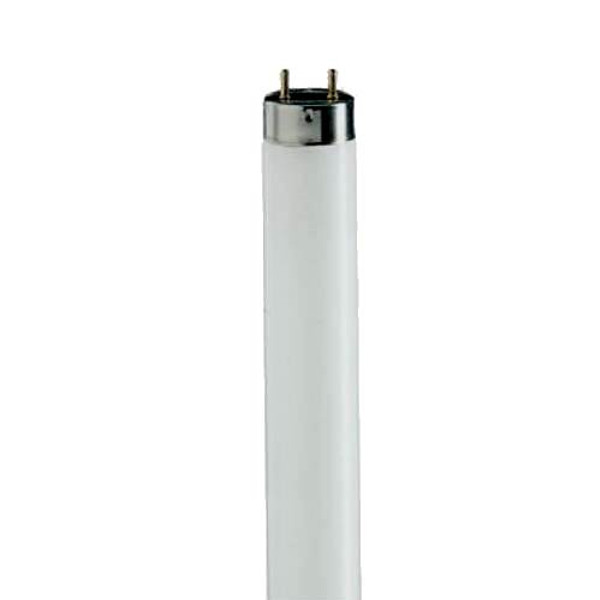

Philips MASTER TL-D 90 Graphica 36W — 36W | 2,300 Lumens | 5000-5200K Daylight | G13 Medium Bi-Pin Base | 10,000 Hours
The Philips MASTER TL-D 90 Graphica 36W is a 36W T8 linear fluorescent lamp with a G13 medium bi-pin base, made for the graphic and printing industry to check the quality of printed material. It produces a 5000-5200K daylight light, 2,300 initial lumens, a color rendering index (CRI) of 85 and a rated average life of 10,000 hours.
Power 36W T8 Fluorescent | Brightness 2,300 lm Initial lumens | Color Temp 5000-5200K Daylight Daylight | CRI 85 | Interface G13 Medium Bi-Pin | Rated Life 10,000 h Average rated |
ADL Supply Expert Application & Replacement Guide
Graphica lamps give a daylight-color light for judging printed material, so they are used in print shops, proofing stations and other graphic-arts viewing areas. Matching the color of the light to the viewing standard you use matters here, so check the lamp code before buying.
T8 lamps have a 1-inch (26 mm) tube. T8 and T12 lamps share the same G13 base, so the base alone will not tell you which type your fixture uses; match the wattage, length and lamp code printed on the end of the lamp you are replacing.
Detailed Product Specifications
- Brand: Philips Lighting
- Product Name: Philips MASTER TL-D 90 Graphica 36W
- Lamp Type: T8 linear fluorescent (MASTER TL-D 90 Graphica)
- Lamp Wattage: 36W
- Color / Output: 5000-5200K Daylight
- Color Rendering Index (CRI): 85
- Initial Lumens: 2,300 lm
- Rated Average Life: 10,000 hours
- Base: G13 Medium Bi-Pin
- Color Code: 952 in the description; 950 in the product name
- Application: Graphics and printing industry - checking the quality of printed material
Ballast & Fixture Compatibility
Confirm the ballast is rated for a 36W T8 lamp before installing.
Before You Order – Verify
- Confirm the color code. The product name shows 36W/950 and the description shows 36W/952 (5000-5200K); check the code printed on the lamp you are replacing.
- Confirm the fixture uses G13 medium bi-pin sockets and takes a 36W T8 lamp of the same length as the one you are replacing.
- Confirm the ballast is rated for a 36W T8 lamp.
- For color-critical work, re-lamp the whole viewing station at once so all lamps match.
