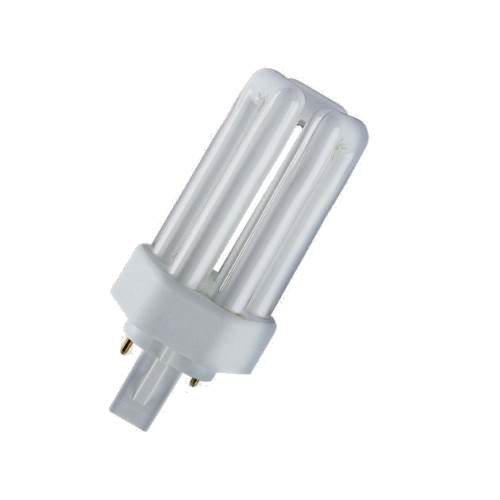

Osram Dulux T 13W/830 Plus – 13W | 3000K Warm White | 900 lm | GX24d-1 2-Pin

The Osram Dulux T 13W/830 Plus is a 13W 3000K Warm White 2-pin compact fluorescent lamp delivering 900 lm initial lumens, CRI 80–89, GX24d-1 2-Pin base. This lamp requires an external compatible ballast — it is not self-ballasted. UPC: 4050300446929.

Quick Specs

• Brand: Osram
• EAN / UPC: 4050300446929
• Lamp / Bulb Type: T4 2-Pin CFL (Double Tube)
• Wattage: 13W
• Color Temperature: 3000K Warm White
• CRI: 80–89
• Initial Lumens: 900 lm
• Rated Average Life: Verify with manufacturer specification sheet
• Base Type: GX24d-1 2-Pin
• Overall Length (MOL): 114mm
• Dimmable: No — non-dimmable
• Ballast Requirement: External ballast required — not self-ballasted
• Compatible Ballast Type: Preheat magnetic ballast with integral starter (external — not self-ballasted)

Product Overview

The Osram Dulux T 13W/830 Plus is a 13W 3000K Warm White 2-pin compact fluorescent lamp designed for warm white residential, hospitality, and commercial retrofit applications. CRI 80–89 provides good color rendering for task and display applications. This lamp requires an external preheat ballast with an integral starter — it is not self-ballasted. Non-dimmable.

The 2-pin base design incorporates a built-in special instant starter and capacitor within the lamp housing, allowing it to operate directly on compatible preheat magnetic ballasts.

Applications

• Recessed downlights and commercial fixtures – 2-pin CFL for recessed ceiling fixtures, downlights, wall washers, and accent lighting requiring warm white residential, hospitality, and commercial retrofit applications.
• Retrofit and maintenance replacement – Drop-in replacement for compatible 2-pin CFL fixtures. Confirm base type, wattage, and ballast compatibility before ordering.

Replacing Your Current 2-Pin CFL?

• Base type — confirm 2-pin vs 4-pin: This lamp has a GX24d-1 2-Pin 2-pin base. 2-pin and 4-pin lamps are not electrically or physically interchangeable even at identical wattages. Check your fixture socket.
• 2-pin base (GX24d-1 2-Pin) — not interchangeable with 4-pin: This lamp uses a GX24d-1 2-Pin 2-pin base. It is NOT interchangeable with 4-pin G24q or GX24q base lamps even if the same wattage and CCT. Verify your fixture's base type before ordering.
• Ballast compatibility: Requires a compatible external preheat magnetic ballast with integral starter. Verify your ballast is rated for this exact wattage and base type. Electronic ballasts may not be compatible with this 2-pin design.
• Wattage — 13W: Confirm your ballast and fixture are rated for 13W.
• Dimmable — No: This lamp is non-dimmable. Do not install on a dimmer circuit.
• Do not use with incompatible ballasts: Lamp performance and life are significantly affected by ballast type. Use only compatible ballasts as specified by the lamp manufacturer.

Ordering Information

• Brand: Osram
• Item / Catalog Number: —
• UPC / EAN: 4050300446929
• Wattage / CCT: 13W / 3000K Warm White
• Base: GX24d-1 2-Pin
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

Compliance

• Verify applicable ANSI standard with manufacturer specification sheet.
• Verify RoHS compliance with manufacturer specification sheet.
• Verify Prop 65 warning requirements with manufacturer specification sheet.
• This lamp contains mercury — dispose per local lamp recycling regulations. Visit lamprecycle.org.

ADL Supply recommends confirming all specifications with the manufacturer product data sheet prior to installation.
