Product Overview

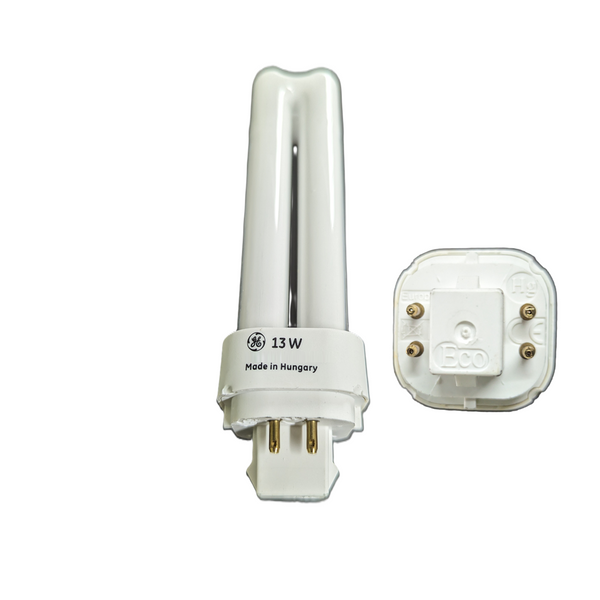

GE 97596 F13DBX/835/ECO4P 13W Double Biax CFL - 3500K G24q-1 4-Pin 900lm
Specifications
- Product Code: 97596 (NAED)
- Ordering Code: F13DBX/835/ECO4P (also F13DBX/SPX35/4P)
- Wattage: 13W
- Voltage: 91V (lamp) / 120V (system)
- Base: G24q-1 4-Pin (not G24d-1 2-pin)
- Bulb Type: T4 Double Tube (Double Biax)
- Color Temperature: 3500K (Neutral White)
- CRI: 82
- Initial Lumens: 900
- Mean Lumens: 755
- LPW (Lumens per Watt): 69
- Maximum Overall Length (MOL): 4.9" (124.5mm) / 5" nominal
- Rated Life: 12,000-17,000 hours (version dependent)
- Start Type: Rapid Start
- Dimmable: Yes (with compatible dimming ballast)
- End of Life Protection (EOL): Yes
- TCLP Compliant: Yes
- Incandescent Equivalent: 60W
- Case Quantity: 50 per case (bulk) / 10 per case (retail)
- UPC: 043168975964
- GTIN: 0043168975964
Version Information
This lamp is available in different versions with varying rated life:
- Standard Version: 12,000 hours rated life
- Ecolux Version: 17,000 hours rated life (energy saving, extended life)
Both versions use the same G24q-1 4-pin base and provide identical light output.
Compatible GE Ballasts
- GE #71428 GEC213-MVPS-BES
- GE #71429 GEC213-MVPS-SE
- GE #71430 GEC213-MVPS-3W (0.99/1.0)
Note: These ballasts are for 13W G24q-1 4-pin lamps. Not compatible with 2-pin G24d-1 versions.
Primary Applications
- Facilities and Commercial Buildings
- Retail Display and Merchandising
- Hospitality and Hotel Lighting
- Office and Workspace Lighting
- Restaurant and Food Service
- Warehouse and Storage Facilities
Cross Reference
Equivalent to:
- Sylvania CF13DD/E/835 (ECO)
- Philips PL-C 13W/835/4P/ALTO
- Osram Dulux D/E 13W/835
Key Features
- Ecolux TCLP-compliant low-mercury design
- 3500K neutral white color temperature
- 900 lumens output (69 LPW efficacy)
- Dimmable with compatible electronic ballasts
- End-of-life protection
- Rapid start operation
- Replaces 60W incandescent
- 4-pin G24q-1 base for electronic ballast operation
Safety & Environmental
Contains mercury - dispose of properly according to local regulations. TCLP compliant for easier disposal.
4-pin base requires electronic ballast with end-of-life protection.
