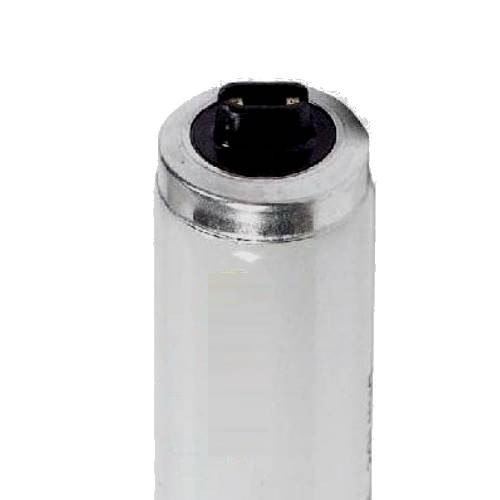

Sylvania 29833 F96T12/DSGN50

Sylvania 29833 F96T12/DSGN50 – 75W T12 Slimline Instant Start Fluorescent Lamp | 5000K | 4,400 Lumens | Fa8 Single Pin

4,400 lumens at 5000K Design 50 with CRI 90 – a 75W T12 Slimline Instant Start fluorescent lamp designed for slimline instant start fixtures.

Quick Specs

• Brand: Sylvania
• Product Code / Model: 29833 / F96T12/DSGN50
• Lamp Type: Fluorescent – T12 Slimline Instant Start
• Starting Method: Instant Start (Slimline)
• Wattage: 75W
• Base Type: Fa8 Single Pin
• Color Temperature: 5000K Design 50
• CRI: 90
• Initial Lumens: 4,400 lm (approx., after 100 hours of operation)
• Mean Lumens: 3,870 lm (measured at 40% of rated life)
• Rated Average Life: 12,000 hr at 3 hours per start
• Rated Average Life (12 hr/start): 18,800 hr
• Nominal Length: 96 in
• Maximum Overall Length (MOL): 94 in
• Bulb Diameter: 1.5 in (T12)

Product Overview

The Sylvania 29833 F96T12/DSGN50 is a 75W T12 Slimline Instant Start fluorescent lamp delivering 4,400 initial lumens at 5000K Design 50. It is built for slimline instant start fixtures where lamp length, base type, ballast type, wattage, and color temperature must match the existing system.

This lamp is best suited for maintenance replacement in commercial, industrial, and institutional spaces. Before ordering, confirm the Fa8 Single Pin base, 75W wattage, and 5000K color temperature against your existing lamp or fixture label.

Why Choose This Product

• 4,400 initial lumens: Catalog rating after 100 hours of operation, with 3,870 mean lumens at 40% of rated life.
• 5000K Design 50: Helps match the existing light color across a facility.
• Fa8 Single Pin base: Designed for the correct T12 socket style; confirm before replacement.
• 12,000 hr rated average life: Rated at 3 hours per start; longer burn cycles increase lamp life.
• Sylvania quality: Suitable for professional lighting applications and facility maintenance.

Technical Specifications

Dimensions

Applications

• Maintenance and retrofit replacement in compatible slimline instant start fixtures
• Commercial, industrial, and institutional facilities and utility spaces
• Replacement for existing F96T12/DSGN50 lamps – confirm the lamp code on your current lamp

Compatibility & Replacement

Fixture type: Designed for slimline instant start fixtures using an Fa8 Single Pin base.

Ballast: Requires a instant start (slimline) ballast rated for this lamp. Always confirm the existing ballast label before ordering.

Starting temperature: Minimum starting temperature is a function of the ballast; consult the ballast manufacturer.

Before ordering, confirm:

• Existing lamp model matches F96T12/DSGN50 or an approved equivalent.
• Fixture socket matches Fa8 Single Pin.
• Wattage is 75W and the ballast is compatible.
• Color temperature is 5000K Design 50.
• Physical size is 96 in nominal length (94 in MOL) x 1.5 in diameter.

Ordering Information

• Brand: Sylvania
• Product Code / Model: 29833 / F96T12/DSGN50
• Description: 75W T12 Slimline Instant Start fluorescent lamp, 5000K Design 50, 4,400 lumens, Fa8 Single Pin base
• Specifications: Taken from the Sylvania linear fluorescent lamp catalog; specifications are subject to change without notice.

Safety & Handling Notes

• Disconnect power before installing or servicing.
• Use only in approved fixtures designed for compatible F96T12/DSGN50 lamps.
• Fluorescent lamps contain mercury and should be recycled or disposed of according to local regulations.
• Follow the fixture manufacturer's instructions and local electrical codes for installation.
