Product Overview

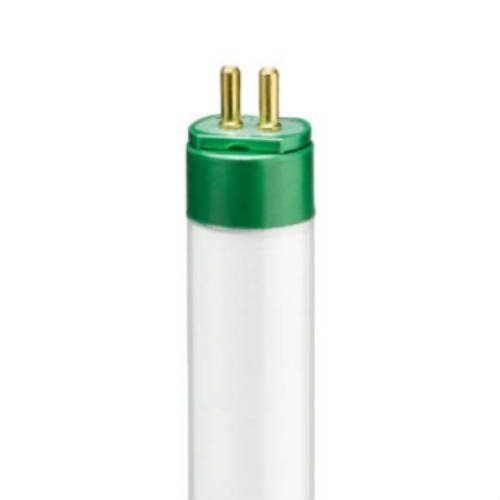

Philips MASTER TL5 High Output 54W/865 (TL554W865HO) Fluorescent Lamp — 54W | 1,149 mm (45.2-Inch) T5 | 4,750 Lumens | 6500K | G5 Miniature Bi-Pin Base
The Philips MASTER TL5 High Output 54W/865 (TL554W865HO) is a 16 mm (T5) low-pressure mercury discharge lamp designed for operation with electronic gear and suited for dimming. The Philips catalog lists 4,750 lumens at 6500K with an 85 CRI and a rated average life of 24,000 hours.
Power 54W T5 High Output | Brightness 4,750 lm at 35°C | Color Temp 6500K Cool Daylight (865) | 85 CRI | Interface G5 Mini Bi-Pin Base | Rated Life 24,000 h Average (catalog) |
ADL Supply Expert Application & Replacement Guide
Philips describes the MASTER TL5 High Output range as optimized for lighting efficiency at 35°C ambient temperature and as allowing more compact luminaires for lighting system minimization. It is specified for offices, industry, schools and retail environments where T5 HO fixtures are already installed.
The 54W HO lamp must run on gear rated for T5 High Output 54W lamps. Do not mix HE and HO lamps and ballasts; use a ballast rated for the exact lamp wattage listed.
Detailed Product Specifications
- Brand: Philips Lighting
- Product Series: MASTER TL5 High Output
- Philips Shortcode: TL554W865HO
- Wattage: 54W
- Luminous Flux (35°C): 4,750 lm
- Color Temperature: 6500K
- Color Rendering Index (Ra): 85
- Base: G5 Miniature Bi-Pin
- Bulb Diameter: 16 mm tube (T5); 17 mm maximum
- Length: A max 1149.0 mm (45.2 in); B max 1156.1 mm; C max 1163.2 mm (45.8 in)
- Rated Average Life: 24,000 hours
- Manufacturer Order / Carton Quantity: 40 / 40
Ballast & Fixture Compatibility
Use an electronic ballast rated for 54W T5 High Output lamps and confirm the rating on the ballast label or fixture nameplate before installing. ADL Supply can help match a ballast to your fixture if you send us the label.
Before You Order – Verify
- Confirm the fixture and ballast are rated for a 54W T5 HO lamp; T5 HE and T5 HO lamps are not interchangeable.
- This is the MASTER TL5 HO at 6500K (865). ADL also lists a Silhouette F54T5/865/HO/ALTO with different published ratings (82 CRI); confirm which family your fixture requires.
- Specifications follow the Philips Lighting Catalogue (NZ edition); check the current Philips datasheet for new project specifications.
- Confirm 6500K matches the lamps already installed before partial re-lamping.
