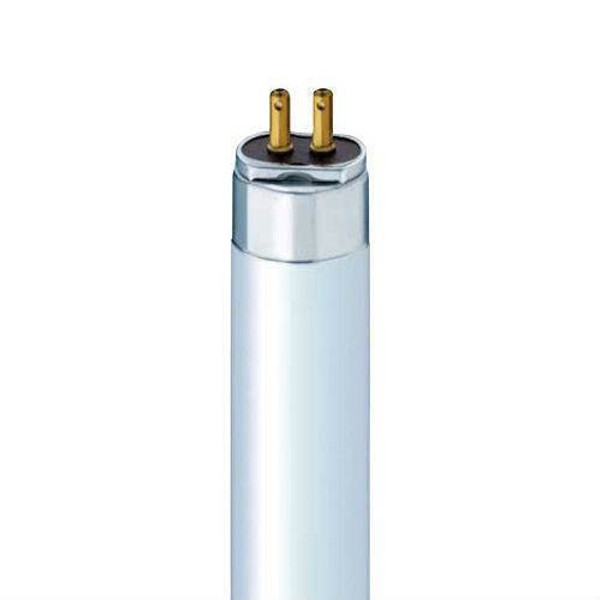

Sylvania 20862 FP54/865/HO/ECO

The Sylvania 20862 FP54/865/HO/ECO Pentron 4-Foot T5 High Output Fluorescent Lamp is a premium commercial-grade linear tube engineered for high-mount applications requiring extreme light output. Operating at 54 watts, this slim 5/8-inch profile lamp delivers an intense 4,750 lumens of 6500K cool daylight illumination. Built with Ecologic technology, it features a miniature G5 bi-pin base and advanced phosphor blends that guarantee an outstanding 95% lumen maintenance rating across its 30,000-hour rated average service life.

ADL Supply Expert Application & Replacement Guide

The Sylvania FP54/865/HO/ECO is an industry standard for commercial industrial high-bay light fixtures, distribution warehouses, sports complexes, manufacturing floors, and high-ceiling retail hubs. Because this is a **High Output (HO)** lamp, it yields nearly double the raw luminous flux of standard 4-foot T8 systems, making it ideal for overhead fixtures mounted above 15 feet where maximum floor foot-candles are required.

Ballast & Socket Installation Notes: This 54W lamp is physically shorter than old T8 lamps (measuring 45.8" actual MOL) and operates exclusively on specialized, high-frequency **Programmed Rapid Start electronic ballasts** equipped with End-of-Life (EOL) sensing circuits. Do not attempt to run this tube on standard-output T5 ballasts. Additionally, ensure your fixtures are outfitted with 600V-rated G5 miniature bi-pin lampholders capable of handling the elevated operating currents of high-output systems. T5HO systems achieve peak efficacy at an ambient temperature of 35°C (95°F), allowing them to deliver stable, maximum lumen output inside modern, low-profile enclosed reflectors.

Detailed Product Specifications

• Brand: Sylvania
• Product Series: Pentron® HO Ecologic® Series
• Sylvania Order Code / SKU: 20862
• Manufacturer Part Number: FP54/865/HO/ECO
• UPC Barcode: 046135208621
• Lamp Technology: Linear Fluorescent T5 High Output
• Operational Wattage: 54W
• Initial Luminous Flux (at 35°C): 4,750 Lumens
• Mean Luminous Flux (at 35°C): 4,420 Lumens
• Color Temperature Configuration: 6500K Cool Daylight
• Color Rendering Index (CRI): 85 (High Visual Clarity)
• Base Configuration: G5 Miniature Bi-Pin
• Tube Profile Size: T5 (5/8-inch Diameter)
• Nominal Size Class: 4-Foot (46" Nominal Length)
• Maximum Overall Length (MOL): 45.8" Inches (1163.3mm)
• Rated Average Lifespan: 25,000 to 30,000 Hours
• Environmental Rating: TCLP and RoHS Compliant (Lead-Free Construction)

Operation, Safety & Mounting Compliance

High-Frequency System Compliance

To satisfy safety regulations, this linear source must be paired exclusively with commercial electronic ballasts built with end-of-life protection. Operating high-output T5 tubes on outdated or non-compliant electronics causes arcing and intense socket overheating at the base pins. This module supports a universal burning position and can be deployed in horizontal fixture trays or vertical display housings.

Disposal & TCLP Standings

Featuring Sylvania's proprietary Ecologic construction, this lamp passes the EPA's Toxic Characteristic Leaching Procedure test standards due to its reduced heavy-metal footprint. While safer for landfills than legacy tubes, large-scale electrical retrofits should compile these bulbs into bulk commercial lamp recycling programs to meet strict municipal hazardous waste boundaries.
