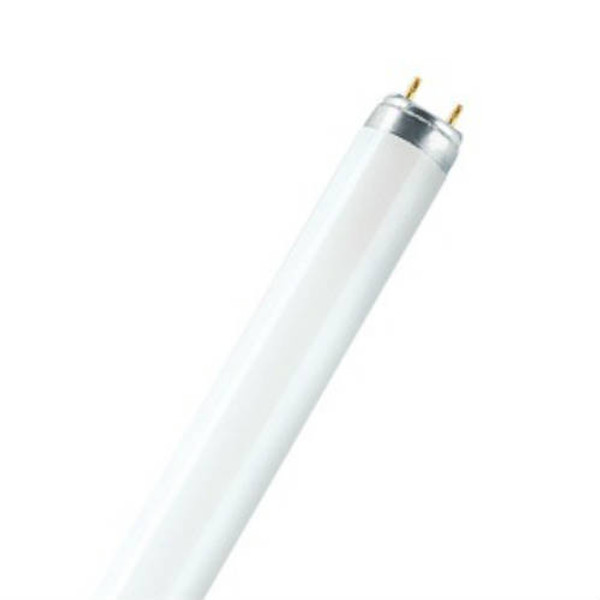

OSRAM LUMILUX T8 | 18W/840 | Protected Splinter-Shield Fluorescent

The Osram 18W T8 Lumilux Protected is a specialized linear fluorescent tube designed for environments where safety and hygiene are paramount. This 590mm (approximately 24 inches) lamp features a transparent protective sleeve that provides integrated splinter protection, ensuring that in the event of glass breakage, all fragments and phosphors are safely contained. This makes it an essential component for facilities following HACCP concepts, including food production, pharmaceutical laboratories, and cleanroom environments. Delivering 1,320 lumens of 4000K Cool White light, it combines industrial safety with high-efficiency Lumilux tri-phosphor technology.

Product Overview

The Osram L 18W/840 SPS (Splinter Protected System) provides a dual-benefit solution: high-quality neutral white light and critical safety containment. The specialized sleeve is UV-stable and designed to last the entire 20,000-hour rated life of the lamp without yellowing or becoming brittle. The 4000K Cool White output is ideal for task-oriented spaces where visibility and cleanliness are key, while the 80-89 CRI ensures accurate color inspection. This lamp is fully dimmable when paired with appropriate ballasts, such as the Osram QT-ECO, and offers excellent lumen maintenance, retaining 90% of its initial brightness throughout its service life.

• Splinter Protection: Prevents contamination of products and injury to personnel if the lamp is broken.
• HACCP Ready: Supports the implementation of food safety management systems from production to presentation.
• Industrial Durability: Rated for 20,000 hours of average life, reducing the frequency of relamping in sensitive areas.
• Optimized Efficiency: High-performance tri-phosphors provide a bright 1,320-lumen output at only 18 watts.

Technical Specifications

• Brand: Osram
• Ordering Code: L 18W/840 PROTECTED (SPS)
• Wattage: 18W
• Luminous Flux: 1,320 Lumens
• Color Temperature: 4000K (Cool White)
• CRI: 80-89 (Class 1B)
• Rated Average Life: 20,000 Hours
• Base: G13 Medium Bi-Pin
• Dimensions: 590mm (MOL) x 26mm (Diameter)
• Packaging: Sold as a Case of 12
• Recommended Ballast: Osram QT-ECO 1X18-24/220-240

Safety & Installation Guide

• Application Warning: Specifically required for food processing, bakeries, supermarkets, and chemical industries where open glass bulbs pose a safety risk.
• Fixture Fit: The protective sleeve increases the diameter slightly; ensure your fixture clips and lampholders can accommodate the shielded T8 tube.
• Ballast Setup: For maximum lamp life and flicker-free safety, use the recommended Osram Quicktronic (QT) electronic ballast.
• Disposal: While the sleeve contains fragments, the lamp still contains mercury. Dispose of according to hazardous waste regulations.
