Product Overview
Philips 20490-9 F25T8/ADV835 ALTO Fluorescent Lamp — 25W | 36 in T8 | 2,250 Lumens | 3500K Neutral White | G13 Medium Bi-Pin Base
The Philips 20490-9 F25T8/ADV835 ALTO is a 25W 3500K Neutral White T8 linear fluorescent lamp, 36 in long, with a G13 medium bi-pin base and Philips ALTO low-mercury technology. It produces 2,250 initial lumens (2,185 mean lumens) with a color rendering index (CRI) of 85 and a rated average life of 24,000-36,000 hours.
Power 25W T8 Fluorescent | Brightness 2,250 lm Initial lumens | Color Temp 3500K Neutral White | CRI 85 | Interface G13 Medium Bi-Pin | Rated Life 24,000-36,000 h Average rated |
ADL Supply Expert Application & Replacement Guide
This 25W lamp is used to re-lamp 3-foot T8 fixtures in restaurants, retail stores, offices, healthcare facilities and contractor installations. Philips positions the 3500K neutral white color for balanced natural-white spaces such as offices, healthcare, educational and retail. It is a drop-in replacement only when the wattage, length and base match the lamp you are taking out.

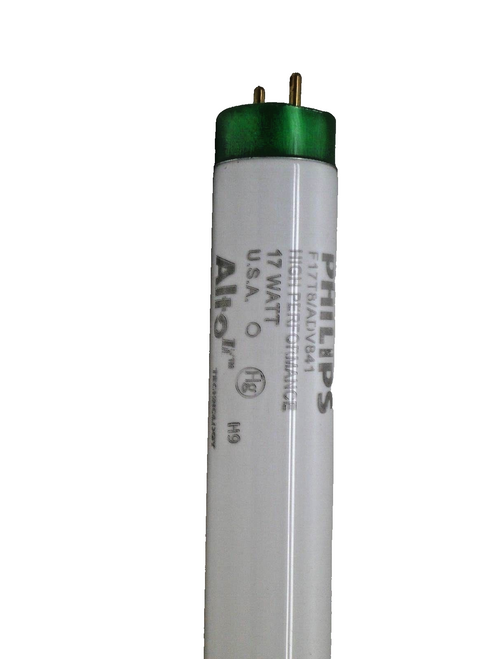

ALTO lamps have a green end cap, which marks Philips' extra-low mercury design. The previous listing cites 1.7 mg of mercury per lamp, and describes the lamp as dimmable without burn-in; dimming requires a compatible dimming ballast.
T8 lamps have a 1-inch (26 mm) tube. T8 and T12 lamps share the same G13 base, so the base alone will not tell you which type your fixture uses; match the wattage, length and lamp code printed on the end of the lamp you are replacing.
Detailed Product Specifications
- Brand: Philips Lighting
- Product Name: Philips 20490-9 F25T8/ADV835 ALTO
- Philips Order Code: 20490-9
- UPC Barcode Number (GTIN-12): 046677204907
- Lamp Type: T8 linear fluorescent (Advantage 800 Series ALTO)
- Lamp Wattage: 25W
- Color Temperature: 3500K, Neutral White
- Color Rendering Index (CRI): 85
- Initial Lumens: 2,250 lm
- Mean Lumens: 2,185 lm
- Rated Average Life: 24,000-36,000 hours
- Base: G13 Medium Bi-Pin
- Nominal Length (MOL): 36 in
- Bulb Diameter: 1 inch (T8)
- Case Quantity: 25 per case
Ballast & Fixture Compatibility
Confirm the ballast is rated for a 25W T8 lamp, and check Philips ballast compatibility documentation for your specific ballast.
Before You Order – Verify
- Confirm the product name and code: Philips 20490-9 F25T8/ADV835 ALTO (Philips order code 20490-9).
- Confirm the fixture uses G13 medium bi-pin sockets and takes a 36 in lamp.
- Confirm the ballast is rated for a 25W T8 lamp.
- Confirm 3500K matches the lamps already installed before partial re-lamping.
