Product Overview
Philips MASTER TL-D Super 80 18W/865 — 18W | 1,350 Lumens | 6500K Cool Daylight | G13 Medium Bi-Pin Base

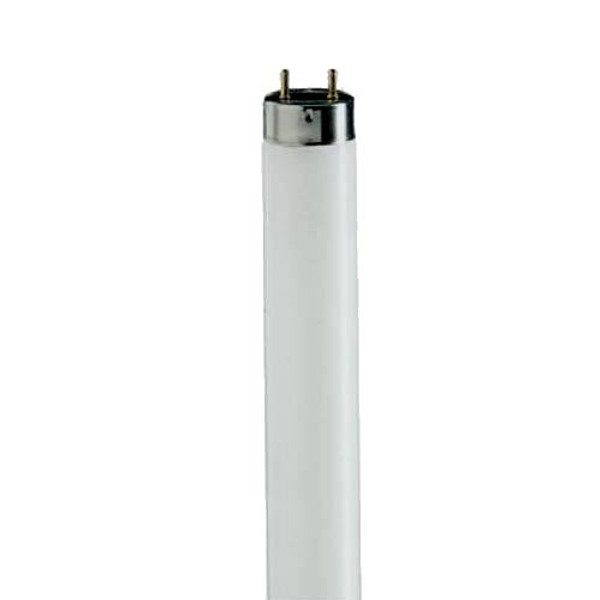

The Philips MASTER TL-D Super 80 18W/865 is a 18W T8 linear fluorescent lamp with a G13 medium bi-pin base, producing a 6500K Cool Daylight light. It delivers 1,350 initial lumens with a color rendering index (CRI) of 85 and a rated average life of 15,000 hours.
Power 18W T8 Fluorescent | Brightness 1,350 lm Initial lumens | Color Temp 6500K Cool Daylight | CRI 85 | Interface G13 Medium Bi-Pin | Rated Life 15,000 h Average rated |
ADL Supply Expert Application & Replacement Guide
The Philips MASTER TL-D Super 80 is a T8 linear fluorescent lamp with a highly efficient 3-band fluorescent coating. Philips describes it as giving more lumens per watt and better color rendering than standard-color TL-D lamps, with a lower mercury content, and it can be operated in existing TL-D luminaires.
It is suited to a wide range of TL-D luminaires in schools, offices, shops, factory halls and similar spaces, and it can create atmospheres from warm white to cool daylight depending on the color you choose. It can be used with conventional or electronic gear; higher efficacy is achieved with electronic gear.
T8 lamps have a 1-inch (26 mm) tube. T8 and T12 lamps share the same G13 base, so the base alone will not tell you which type your fixture uses; match the wattage, length and lamp code printed on the end of the lamp you are replacing.
Detailed Product Specifications
- Brand: Philips Lighting
- Product Name: Philips MASTER TL-D Super 80 18W/865
- Lamp Type: T8 linear fluorescent (MASTER TL-D Super 80)
- Lamp Wattage: 18W
- Color Temperature: 6500K, Cool Daylight
- Color Rendering Index (CRI): 85
- Initial Lumens: 1,350 lm
- Rated Average Life: 15,000 hours
- Base: G13 Medium Bi-Pin
- Bulb Diameter: 26 mm (T8)
- Country of Origin: China
Ballast & Fixture Compatibility
The previous listing states that this lamp can be used with conventional (magnetic) or electronic control gear, with higher efficacy on electronic gear. Confirm the ballast is rated for a 18W T8 lamp before installing.
Equivalent Lamps & Cross-Reference
If you know this lamp by another brand's number, or need a replacement, use the numbers below. Confirm that the wattage, color temperature, and ballast type match your fixture before substituting, since ratings can differ between brands.
- Current Replacement: OSRAM L 18W 865 T8 G13 (the Philips lamp is discontinued)
Before You Order – Verify
- Confirm the lamp code: 18W/865 means 6500K Cool Daylight. Other codes in the same family look identical but produce a different color.
- Confirm the fixture uses G13 medium bi-pin sockets.
- Confirm the length of the lamp you are replacing, since T8 lamps come in several lengths.
- Confirm the ballast is rated for a 18W T8 lamp.
- Confirm 6500K matches the lamps already installed before partial re-lamping.
